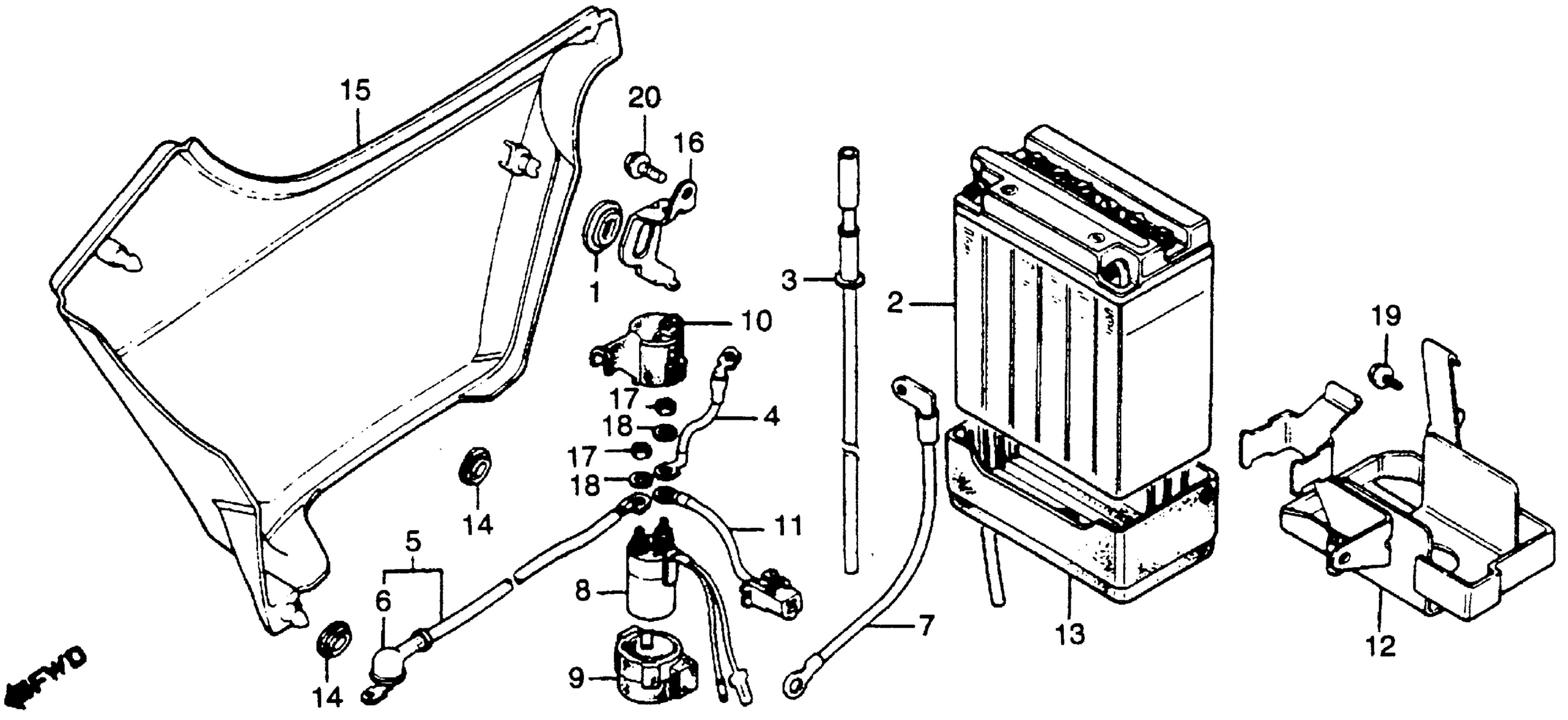

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 RIGHT SIDE COVER + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

BATTERY (12V12)

31500-MN2-672

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-601.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-721.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-722.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-941.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-942.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-426-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-447-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-671.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-677.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 35100-MN2-673.

31500-460-672AH

Unavailable

3

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-ME0-670

Unavailable

4

CABLE This part replaces 32401-413-000.

32401-413-880

Unavailable

5

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32410-413-000.

32410-MC9-830

Unavailable

6

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

6

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

7

CABLE ASSY., BATTERY GROUND

32601-413-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-431-007

Unavailable

9

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

9

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

10

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-413-007

Unavailable

11

CABLE, MAGNETIC SUB (NOT AVAILABLE)

35858-413-000

Unavailable

12

TRAY, BATTERY (NOT AVAILABLE)

50325-ME0-670

Unavailable

13

RUBBER, BATTERY

50326-413-781

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

15

COVER SET, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

836A0-413-940ZA

Unavailable

15

COVER SET, R. SIDE *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

836A0-413-940ZB

Unavailable

16

STAY, R. SIDE COVER (NOT AVAILABLE)

83710-443-610

Unavailable

17

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

17

NUT, HEX. (6MM)

94002-06080-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06800

$1.49

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

19

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

20

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

20

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
