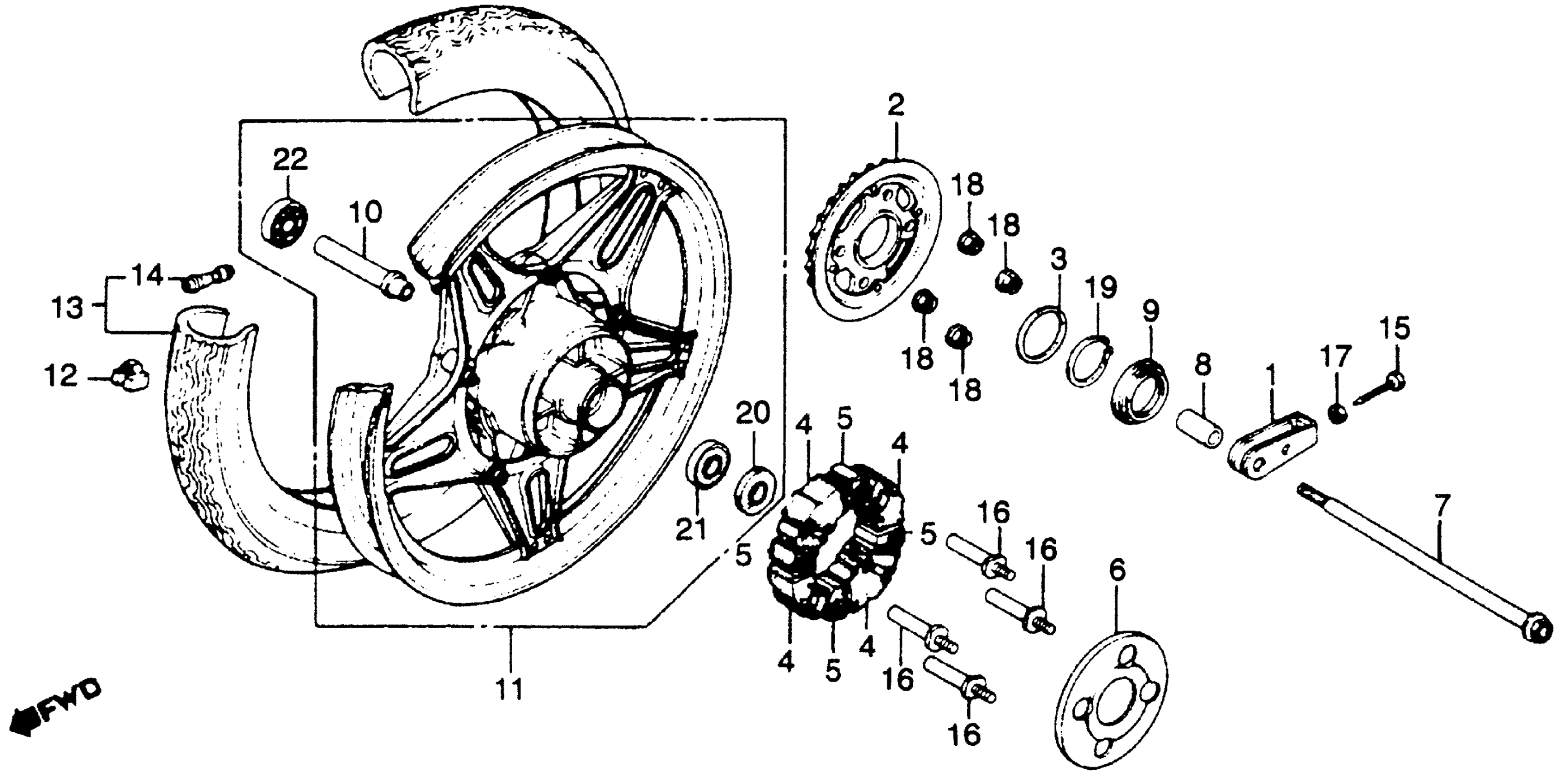

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

2

SPROCKET, FINAL DRIVEN (36T)

41200-ME0-670

Unavailable

3

WASHER (80X65)

41204-413-780

$8.41

4

RUBBER, RR. WHEEL DAMPER (NOT AVAILABLE)

41241-MC0-670

Unavailable

5

COLLAR, RR. WHEEL DAMPER

41242-413-780

Unavailable

6

COVER, RR. WHEEL DAMPER (NOT AVAILABLE)

41265-413-780

Unavailable

7

AXLE, RR. WHEEL

42301-413-000

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-413-000

Unavailable

9

COVER, SPROCKET SIDE DUST

42604-413-780

Unavailable

10

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42624-413-000

Unavailable

11

WHEEL, RR. (NOT AVAILABLE)

42650-413-940

Unavailable

12

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

12

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

13

TIRE ASSY., RR. (4.10S18) (4PR) (BS) (NOT AVAILABLE)

42710-413-941

Unavailable

13

TIRE ASSY., RR. (4.10S18) (4PR) (DUNLOP) (NOT AVAILABLE)

42710-413-942

Unavailable

13

TIRE ASSY., RR. (4.10S18) (4PR) (YOKOHAMA) (NOT AVAILABLE)

42710-413-943

Unavailable

14

VALVE, RIM (BS) This part replaces 42753-415-006.

42753-425-003

$11.00

14

VALVE, RIM (BS)

42753-425-003

$11.00

14

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

15

BOLT, CHAIN ADJUSTING

90119-413-000

$3.69

16

BOLT, SPROCKET FIXING

90128-KE5-000

Unavailable

16

BOLT, SPROCKET FIXING This part replaces 90128-369-000.

90128-KE5-000

Unavailable

17

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

18

NUT, HEX. (10MM)

90308-357-000

$4.85

19

CIRCLIP (OUTER) (65MM)

90665-329-000

Unavailable

20

DUST SEAL (30X52X7)

91253-442-003

$13.96

20

DUST SEAL (30X52X7) This part replaces 91253-442-004.

91253-442-003

$13.96

21

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

22

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
