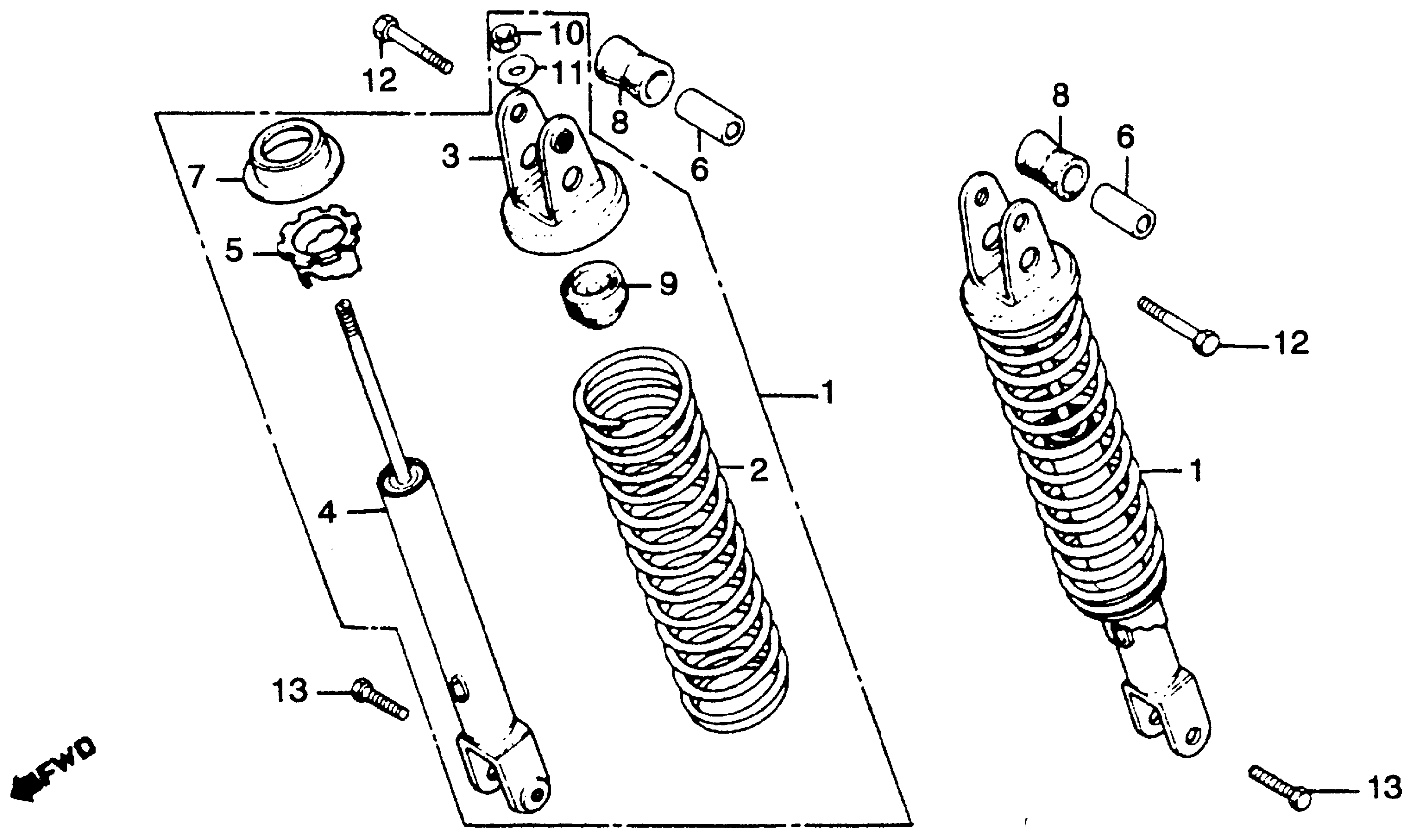

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR.

52400-413-405

Unavailable

SHOCK ABSORBER ASSY., RR. This part replaces 52400-413-943.

52400-413-405

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-413-013

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-443-611

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-443-612

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

COLLAR, RR. SHOCK ABSORBER SETTING

52450-413-000

Unavailable

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-443-611

Unavailable

RUBBER, RR. SHOCK ABSORBER JOINT (NOT AVAILABLE)

52484-413-010

Unavailable

RUBBER, STOPPER

52517-404-003

$5.70

NUT, HEX. (10MM)

94002-10000-0S

$4.06

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

BOLT, FLANGE (10X32)

95701-10032-00

$1.49

BOLT, FLANGE (10X45) This part replaces 95700-10045-00.

95701-10045-00

$2.98

BOLT, FLANGE (10X45)

95701-10045-00

$2.98
