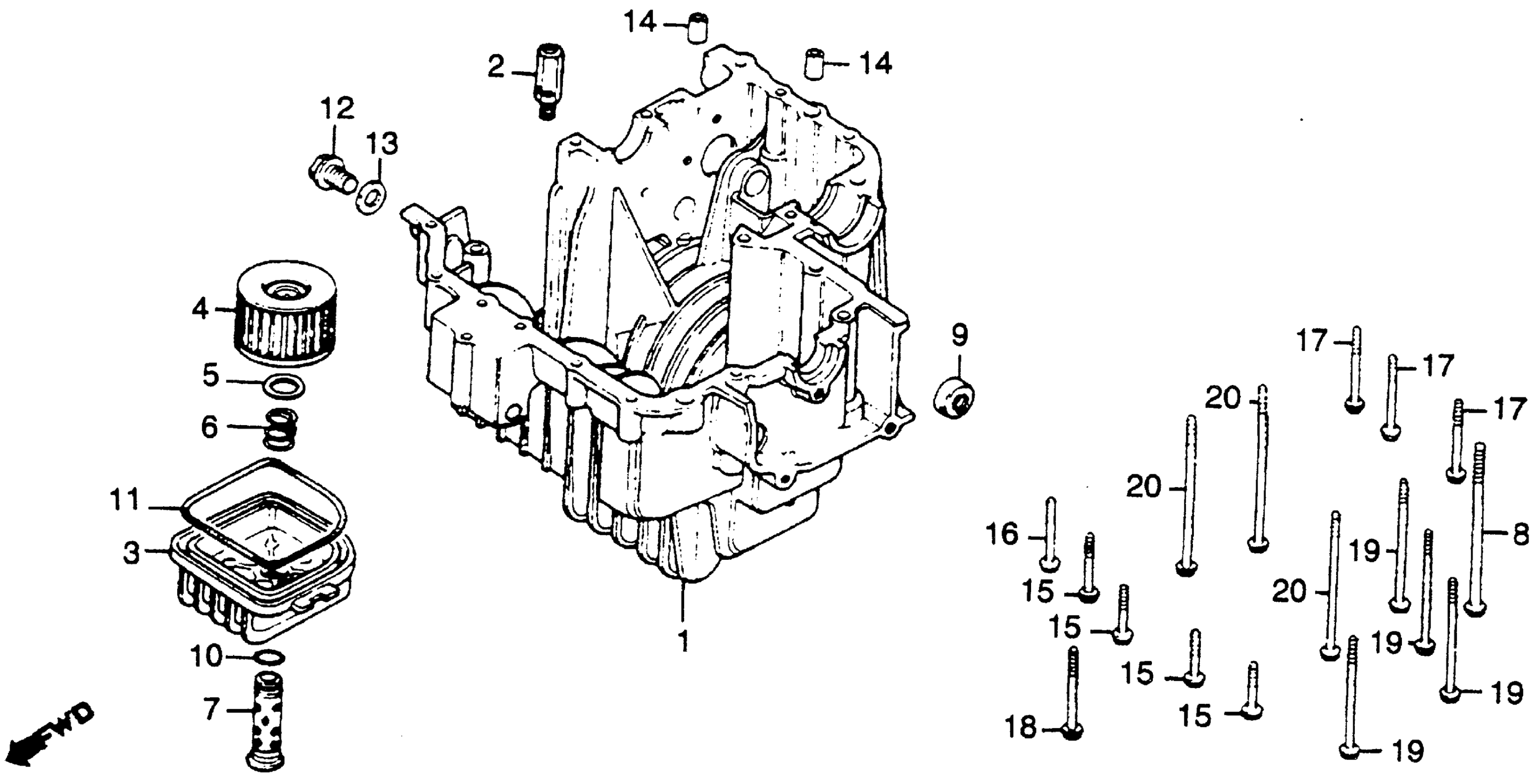

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 LOWER CRANKCASE Diagram

CRANKCASE (LOWER)

11200-MC0-000

Unavailable

VALVE ASSY., RELIEF

15220-413-020

Unavailable

CASE, OIL FILTER This part replaces 15411-443-790.

15411-443-791

Unavailable

CASE, OIL FILTER

15411-443-791

Unavailable

ELEMENT, OIL FILTER This part replaces 154A1-MA6-000.

154A1-413-505

$9.47

ELEMENT, OIL FILTER This part replaces 154A1-413-005.

154A1-413-505

$9.47

FILTER, OIL

154A1-415-000

Unavailable

ELEMENT, OIL FILTER This part replaces 15412-413-005.

154A1-413-505

$9.47

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

BOLT, OIL FILTER CENTER

15420-MA6-000

Unavailable

BOLT, OIL FILTER CENTER This part replaces 15420-415-000.

15420-MA6-000

Unavailable

BOLT, HEX. (8X135) (NOT AVAILABLE)

90003-302-000

Unavailable

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

O-RING (15X2.5)

91302-377-000

$5.31

GASKET, OIL FILTER CASE

91306-413-000

$9.65

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (6X105) This part replaces 95700-06105-00.

95701-06105-00

$3.09

BOLT, FLANGE (6X105)

95701-06105-00

$3.09
