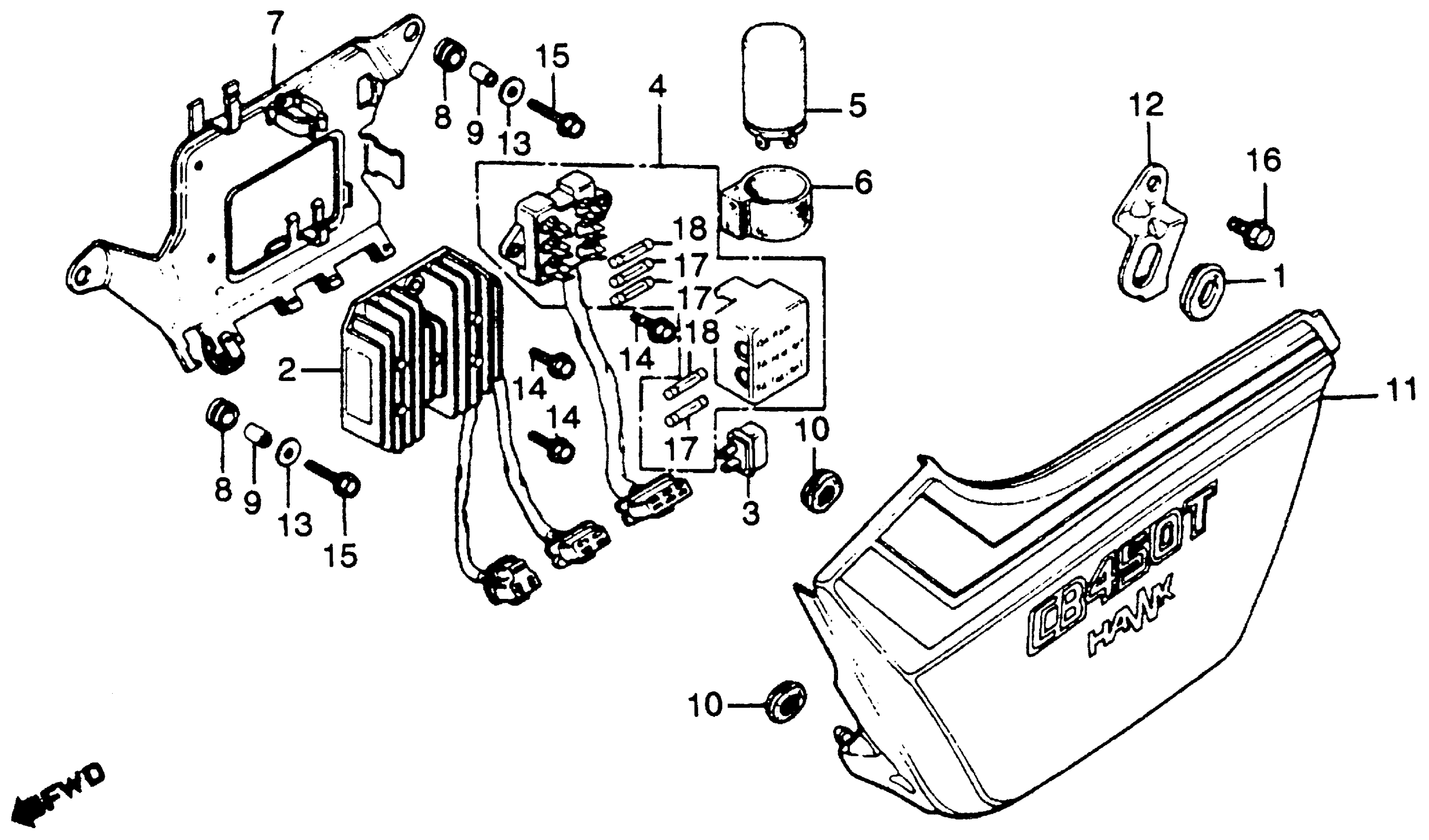

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 LEFT SIDE COVER + RECTIFIER + FUSE Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.56

2

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

2

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

3

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$26.68

3

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$26.68

4

BOX ASSY., FUSE (NOT AVAILABLE)

38200-413-003

Unavailable

5

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

5

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

5

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

5

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

6

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.51

7

PLATE, ELECTRIC BASE

50330-413-010

Unavailable

8

RUBBER A, RR. FENDER

80105-061-000

$3.73

9

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$3.82

9

COLLAR A, RR. FENDER

80108-061-010

$3.82

10

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

11

COVER SET, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

837A0-413-940ZA

Unavailable

11

COVER SET, L. SIDE *NH104MU* (PLEIADES SILVER METALLIC)

837A0-413-940ZB

Unavailable

12

STAY, L. SIDE COVER (NOT AVAILABLE)

83711-443-610

Unavailable

13

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.70

13

WASHER (18MM)

90581-831-650

$1.70

14

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.48

14

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

15

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$0.35

15

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

16

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.03

16

BOLT, FLANGE (8X12)

95701-08012-00

$1.03

17

FUSE B (7A)

98200-20700

$1.12

18

FUSE B (15A)

98200-21500

$0.97
