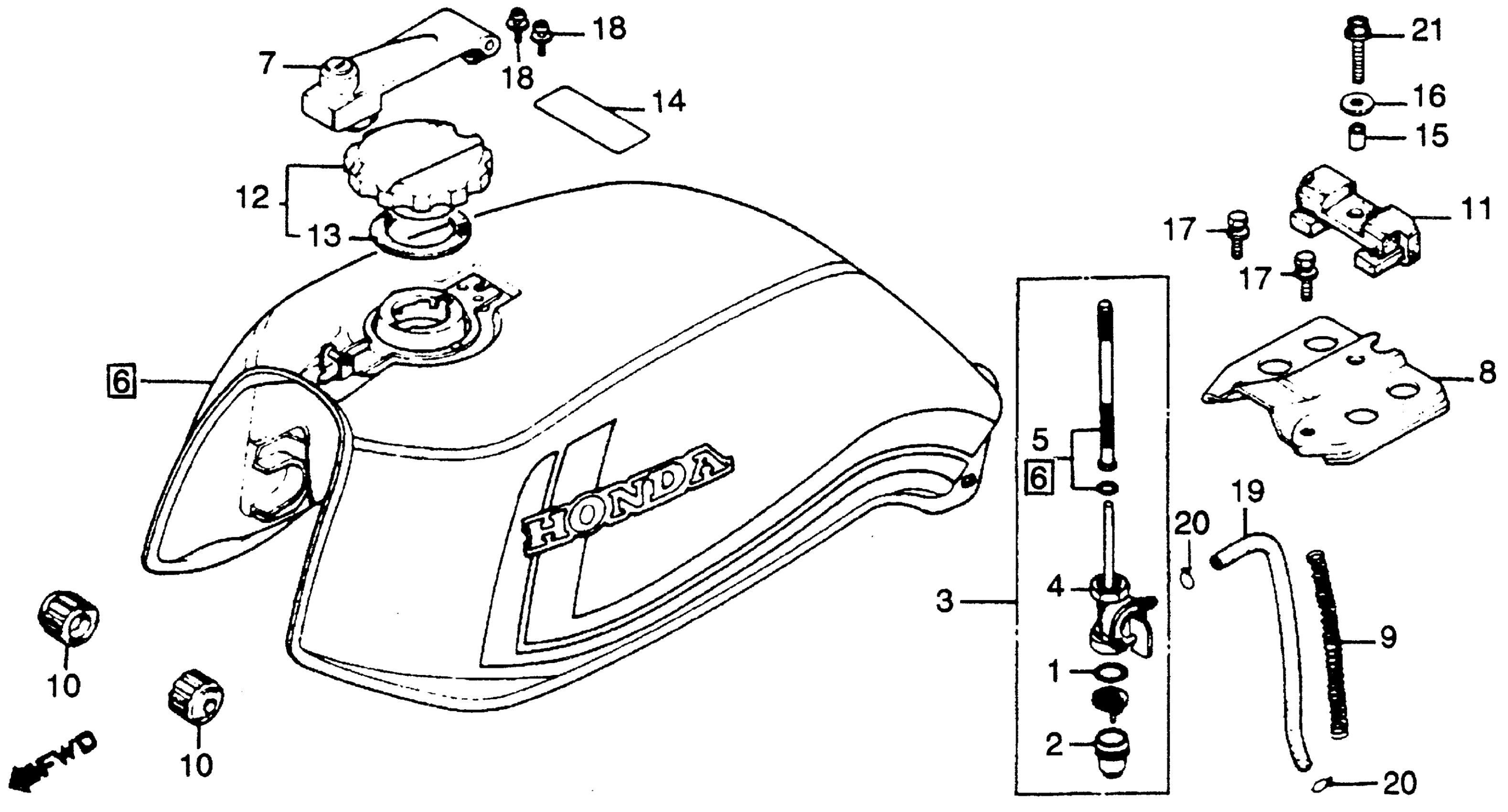

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 FUEL TANK Diagram

#

Description
Price

1

O-RING (NOT AVAILABLE)

16080-471-831

Unavailable

2

CUP, FUEL STRAINER

16081-471-831

$25.14

3

PETCOCK ASSY. This part replaces 16950-KB7-005.

16950-KB7-910

Unavailable

3

PETCOCK ASSY.

16950-KB7-910

Unavailable

3

PETCOCK ASSY. This part replaces 16950-471-831.

16950-KB7-910

Unavailable

4

BODY, PETCOCK

16951-471-831

Unavailable

5

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

6

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)

175A1-ME0-670ZA

Unavailable

6

TANK SET, FUEL *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

175A1-ME0-670ZB

Unavailable

7

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-017.

17530-443-305

Unavailable

7

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

7

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-611.

17530-443-305

Unavailable

7

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

8

BRACKET, RR. TANK SUPPORT

17531-443-610

Unavailable

9

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

10

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

10

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

11

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-443-610

Unavailable

12

CAP, FUEL FILLER This part replaces 17620-449-003.

17620-469-000

Unavailable

12

CAP, FUEL FILLER

17620-469-000

Unavailable

13

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

13

GASKET This part replaces 17632-469-000.

17632-176-772

$11.02

14

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

14

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

14

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

14

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

15

COLLAR (8MM)

90324-300-000

$4.35

16

WASHER (8.3MM)

90534-011-000

$1.49

17

BOLT-WASHER (8X16)

93412-08016-08

$2.05

17

BOLT-WASHER (8X16) This part replaces 93482-08016-08.

93412-08016-08

$2.05

18

SCREW-WASHER (4X6)

93892-04006-00

$1.49

19

BULK HOSE, FUEL (5.5X3000) (5.5X100)

95001-55003-60M

$47.32

20

CLIP, TUBE (B10)

95002-02100

$1.90

21

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

21

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
