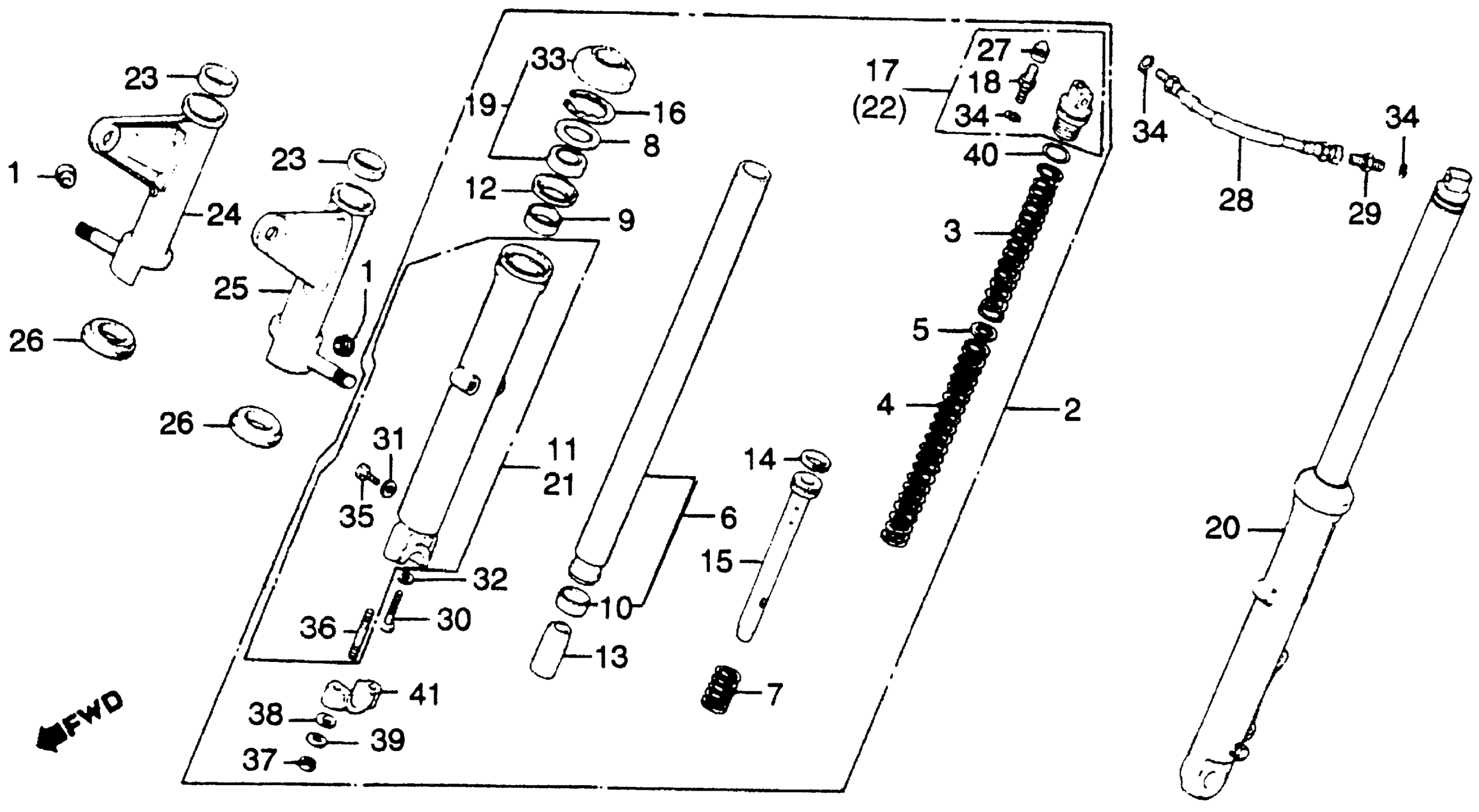

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 FRONT FORK Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.31

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-413-941

Unavailable

3

SPRING A, FR. FORK (NOT AVAILABLE)

51401-413-941

Unavailable

4

SPRING B, FR. FORK (NOT AVAILABLE)

51402-413-941

Unavailable

5

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-447-731

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-413-941

Unavailable

7

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

8

PLATE, BACK-UP

51413-447-731

Unavailable

9

BUSH, GUIDE

51414-447-731

$15.25

10

BUSH, SLIDER

51415-447-731

Unavailable

11

CASE, R. (LOWER)

51421-413-941

Unavailable

12

RING, BACK-UP

51422-376-305

Unavailable

13

PIECE, OIL LOCKING

51432-447-731

$27.42

14

RING, PISTON

51437-413-003

$7.96

15

PIPE, SEAT (NOT AVAILABLE)

51440-447-731

Unavailable

16

CIRCLIP (INNER)

51447-447-731

Unavailable

17

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-447-731

Unavailable

18

VALVE, AIR (SHOWA)

51456-469-013

$33.69

19

SEAL SET, FR. FORK

51490-413-305

Unavailable

20

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-413-941

Unavailable

21

CASE, L. (LOWER) (NOT AVAILABLE)

51521-413-941

Unavailable

22

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-447-731

Unavailable

23

CUSHION, FORK COVER (UPPER) (NOT AVAILABLE)

51601-449-000

Unavailable

24

COVER, R. FR. FORK (NOT AVAILABLE)

51602-413-940

Unavailable

25

COVER, L. FR. FORK (NOT AVAILABLE)

51606-413-940

Unavailable

26

RUBBER B, FORK COVER (NOT AVAILABLE)

51622-449-000

Unavailable

27

CAP, AIR VALVE

52425-381-771

$5.05

28

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-413-941

Unavailable

29

CONNECTOR

53139-463-000

Unavailable

30

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

30

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

31

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

32

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

33

DUST SEAL, FR. FORK

91254-413-881

$25.92

34

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

34

O-RING (5.8X1.9)

91305-323-000

$2.92

34

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

35

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

36

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

36

BOLT, STUD (8X50)

92900-08028-3B

$1.59

37

NUT, HEX. (8MM)

94030-08000

$1.49

38

WASHER, PLAIN (8MM)

94101-08000

$1.49

39

WASHER, SPRING (8MM)

94111-08000

$1.49

40

O-RING (23X2.8)

94608-50000

$1.49

41

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
