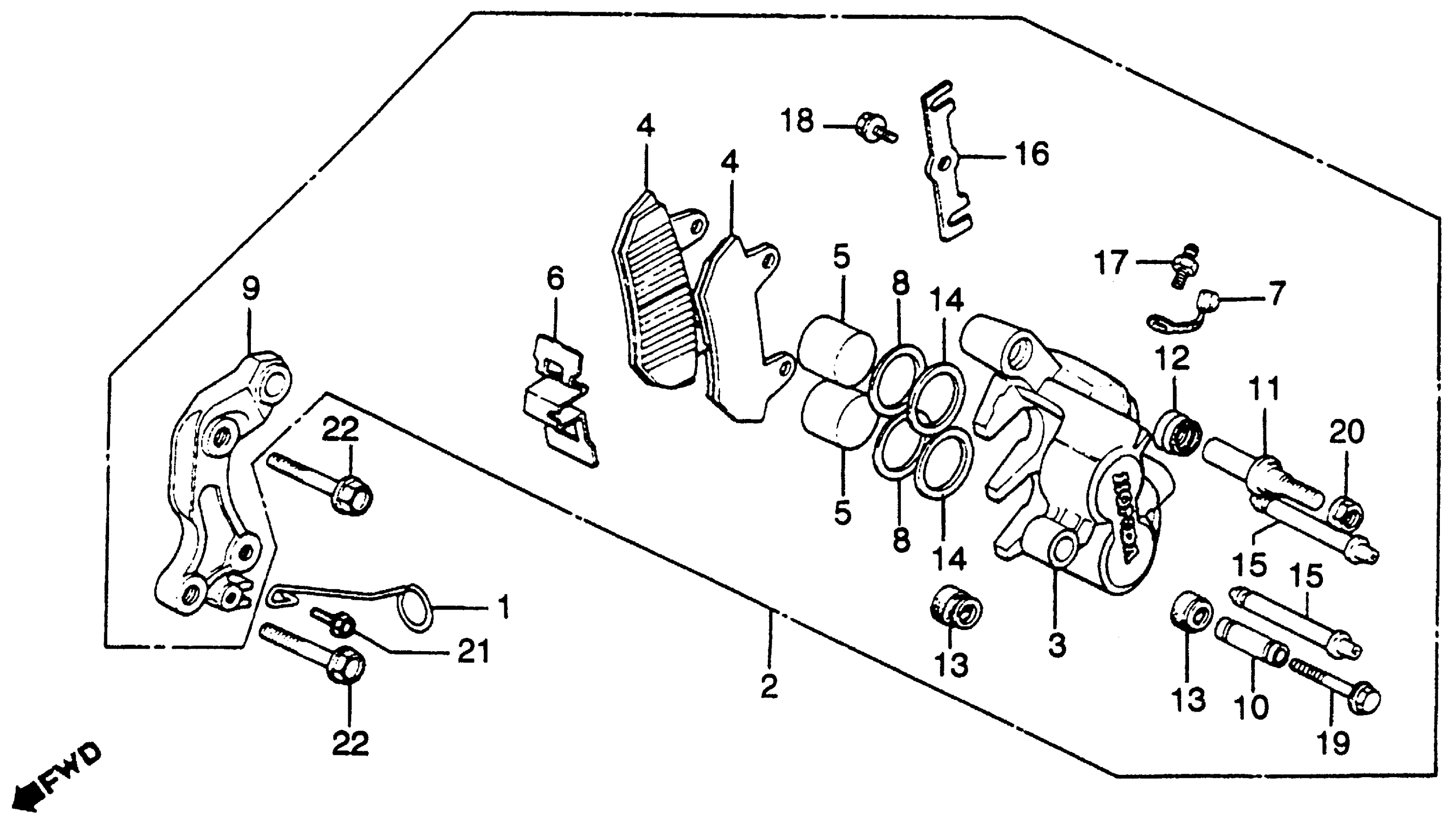

Honda CB450SCAC (86) NIGHTHAWK 450, JPN, VIN# JH2PC055-GM400004 FRONT BRAKE CALIPER Diagram

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MC0-670

Unavailable

CALIPER ASSY., L. FR. (NISSHIN) This part replaces 45100-MC9-741.

45100-MC9-743

Unavailable

CALIPER ASSY., L. FR. (NISSHIN) This part replaces 45100-MC9-742.

45100-MC9-743

Unavailable

CALIPER ASSY., L. FR. (NISSHIN)

45100-MC9-743

Unavailable

CALIPER, L.

45101-MA3-006

Unavailable

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-007.

45105-KL8-014

Unavailable

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

PISTON

45107-MA3-006

$50.26

SPRING, PAD

45108-MA3-006

$6.28

CAP, BLEEDER

43353-461-771

$5.05

DUST SEAL

45109-166-006

$6.41

BRACKET, L. FR.

45110-445-632

Unavailable

SLEEVE

45111-MA3-006

$13.38

PIN, BOLT

45131-MA3-006

$17.59

BOOT B

45133-MA3-006

$5.46

BOOT, PIN

45133-166-016

$3.85

SEAL, PISTON

45209-166-006

$8.64

PIN, HANGER

45215-MA3-006

$12.77

PLATE

45217-MJ0-006

Unavailable

SCREW, BLEEDER

43352-568-003

$7.95

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

BOLT, FLANGE (10X32)

95801-10032-00

$2.31
