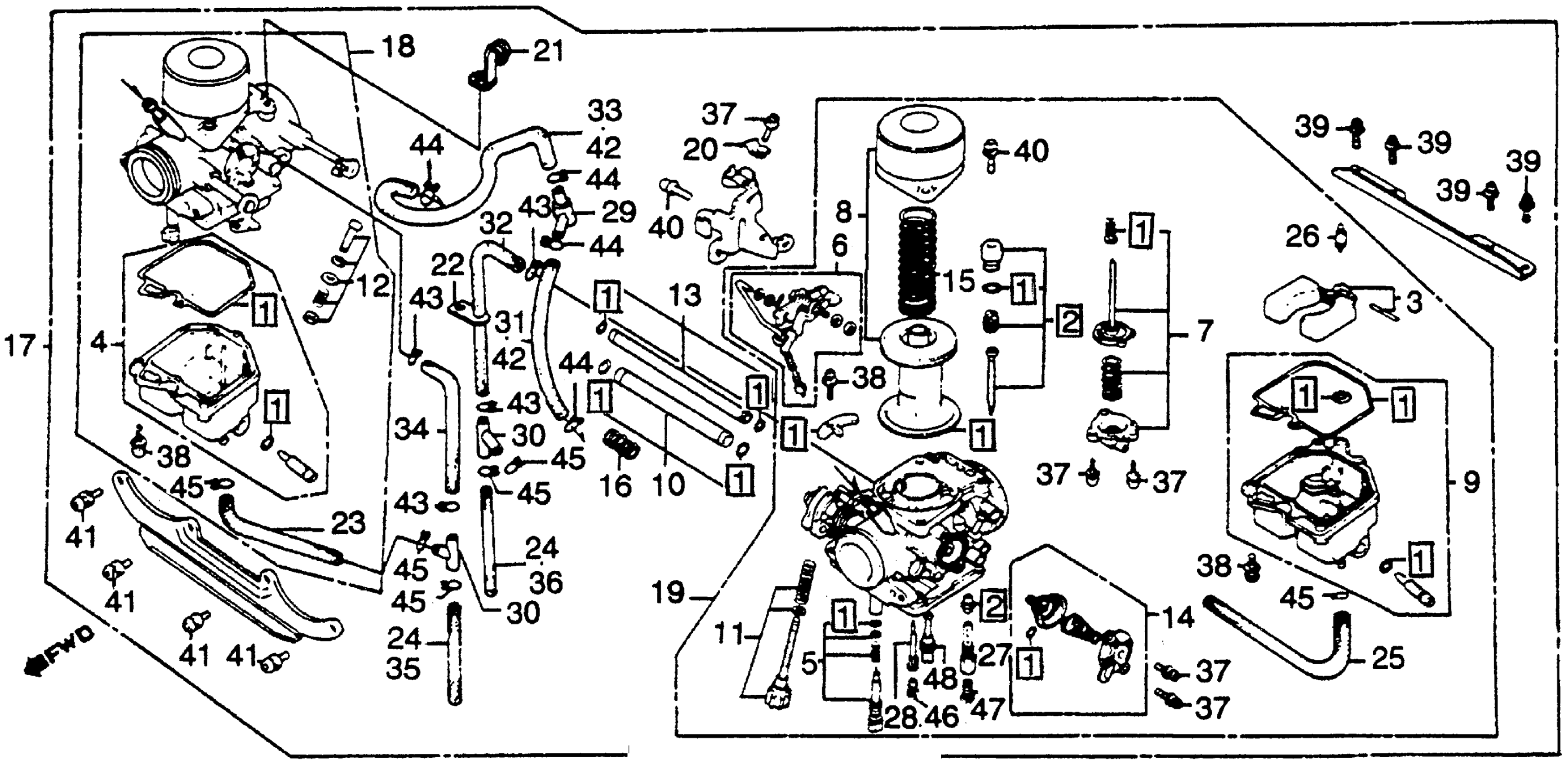

Honda CB450SCAC (86) NIGHTHAWK 450, JPN, VIN# JH2PC055-GM400004 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MC9-761.

16010-MC9-305

Unavailable

2

NEEDLE SET, JET

16012-MC9-761

Unavailable

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET A, FLOAT

16015-MC9-791

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-MC9-771

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16022-MC9-771

Unavailable

9

CHAMBER SET A, FLOAT

16015-MC9-791

Unavailable

10

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-004

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

12

SCREW SET C

16029-PC6-005

Unavailable

12

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

13

JOINT SET, FUEL This part replaces 16037-413-751.

16037-443-851

Unavailable

14

VALVE SET, AIR CUT

16048-MC9-761

Unavailable

15

SPRING, VACUUM PISTON

16050-448-004

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

17

CARBURETOR ASSY.

16100-MC9-762

Unavailable

18

CARBURETOR ASSY., R.

16101-MC9-761

Unavailable

19

CARBURETOR ASSY., L.

16102-MC9-761

Unavailable

20

STAY, PLATE

16119-MC9-771

Unavailable

21

BINDER

16134-MC9-791

Unavailable

22

BINDER

16134-460-671

Unavailable

23

TUBE, AIR VENT

16199-GC7-004

Unavailable

25

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

25

TUBE, FUEL This part replaces 16144-MC9-791.

16199-KG4-405

$9.49

26

VALVE, FLOAT

16155-397-971

$41.45

27

HOLDER, NEEDLE JET

16165-417-004

$24.74

29

T-JOINT

16179-MB2-881

Unavailable

30

T-JOINT This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

30

T-JOINT

17194-MN5-000

$12.39

31

TUBE

16198-MC9-761

Unavailable

32

PIPE, OVERFLOW This part replaces 16143-HA8-405.

16198-ML4-405

Unavailable

32

PIPE, OVERFLOW This part replaces 16198-MC9-791.

16198-ML4-405

Unavailable

33

TUBE, FUEL

16199-MC9-761

Unavailable

34

PIPE, OVERFLOW This part replaces 16143-HA8-405.

16198-ML4-405

Unavailable

34

PIPE, OVERFLOW This part replaces 16199-MC9-791.

16198-ML4-405

Unavailable

35

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

35

TUBE This part replaces 16199-460-671.

16199-MN5-405

$11.86

36

TUBE, FUEL

16199-KG4-405

$9.49

36

TUBE, FUEL This part replaces 16199-471-004.

16199-KG4-405

$9.49

37

SCREW-WASHER (4X12)

93892-04012-00

$1.49

38

SCREW-WASHER (4X16)

93892-04016-00

$1.49

39

SCREW-WASHER (5X12)

93892-05012-00

$1.49

40

SCREW-WASHER (5X16)

93892-05016-00

$1.49

41

SCREW-WASHER (6X14)

93892-06014-00

$1.49

43

CLIP, TUBE (B8)

95002-02080

$1.80

44

CLIP, TUBE (B10)

95002-02100

$1.90

45

CLIP, TUBE (B6.5)

95002-02650

$1.49

47

JET, MAIN (#125) This part replaces 99101-GHB-1250.

99101-443-1250

$5.78

47

JET, MAIN (#125) This part replaces 99101-393-1250.

99101-443-1250

$5.78

48

JET, SLOW (#40)

99103-420-0400

Unavailable
