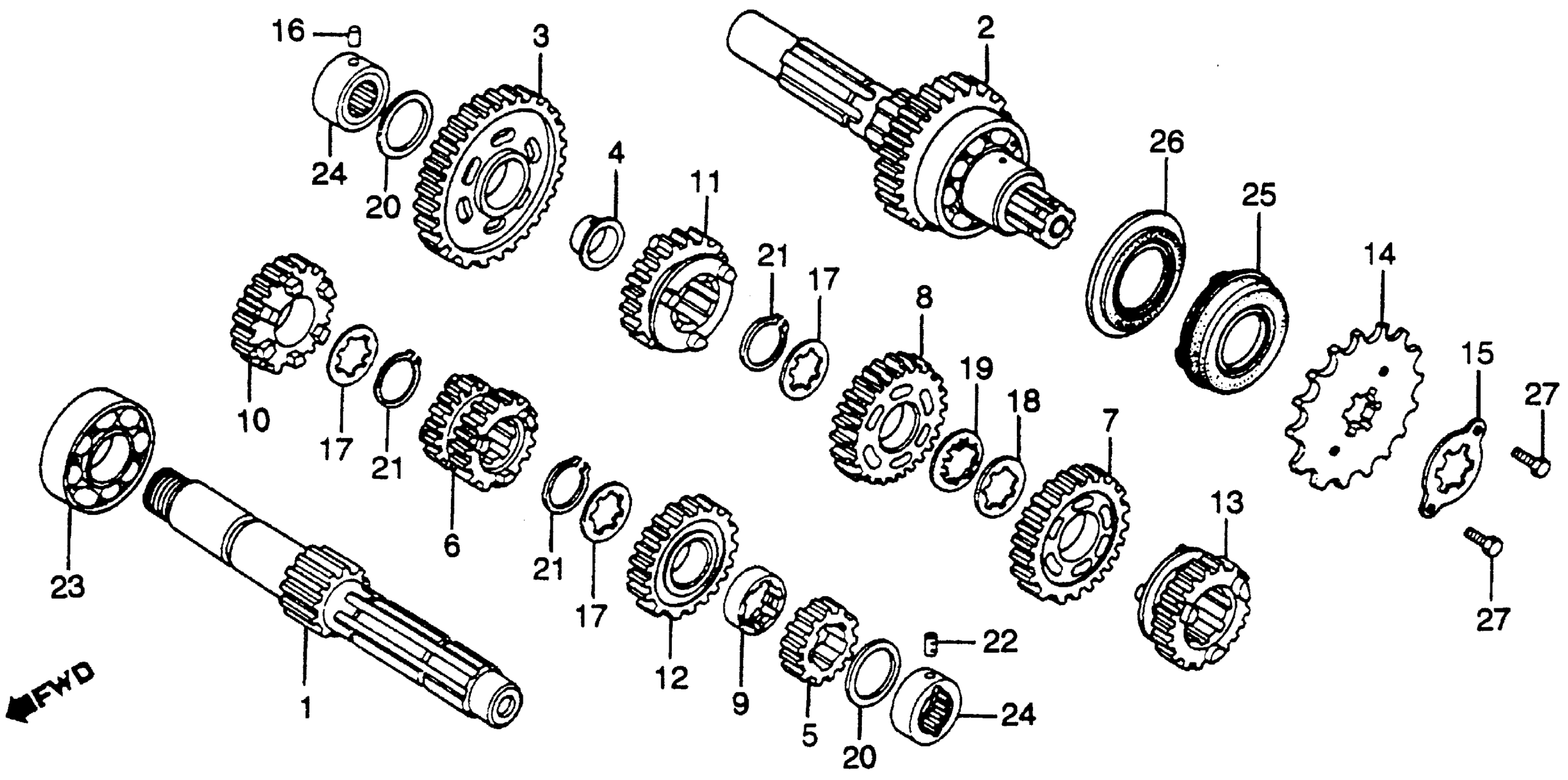

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (14T) This part replaces 23211-MC0-000.

23211-MC0-010

Unavailable

MAINSHAFT, TRANSMISSION (14T)

23211-MC0-010

Unavailable

COUNTERSHAFT This part replaces 23220-MC9-000.

23220-MC9-010

Unavailable

COUNTERSHAFT

23220-MC9-010

Unavailable

GEAR, COUNTERSHAFT FIRST (40T) (NOT AVAILABLE)

23421-MC0-000

Unavailable

BUSH (20MM) (NOT AVAILABLE)

23422-443-000

Unavailable

GEAR, MAINSHAFT SECOND (19T)

23431-MF5-750

Unavailable

GEAR, MAINSHAFT THIRD & FOURTH (22T, 25T)

23451-443-000

Unavailable

GEAR, COUNTERSHAFT THIRD (34T)

23461-MC0-000

Unavailable

GEAR, COUNTERSHAFT FOURTH (32T)

23481-443-020

Unavailable

BUSH, SPLINE (28MM)

23485-369-000

$29.59

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-MC0-000

Unavailable

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MC0-000

Unavailable

GEAR, MAINSHAFT TOP (30T) (NOT AVAILABLE)

23511-MC0-000

Unavailable

GEAR, COUNTERSHAFT TOP (26T) (NOT AVAILABLE)

23521-MC0-000

Unavailable

SPROCKET, DRIVE (17T)

23801-333-000

Unavailable

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

WASHER, THRUST (25MM)

90451-413-000

$3.26

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

WASHER, LOCK (25MM)

90462-323-000

$3.77

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

PIN, BEARING SETTING (NOT AVAILABLE)

90705-413-000

Unavailable

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

OIL SEAL (34X63X12)

91206-MC0-000

$18.67

OIL SEAL (34X66)

91211-393-003

$14.10

OIL SEAL (34X66) This part replaces 91211-393-005.

91211-393-003

$14.10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
