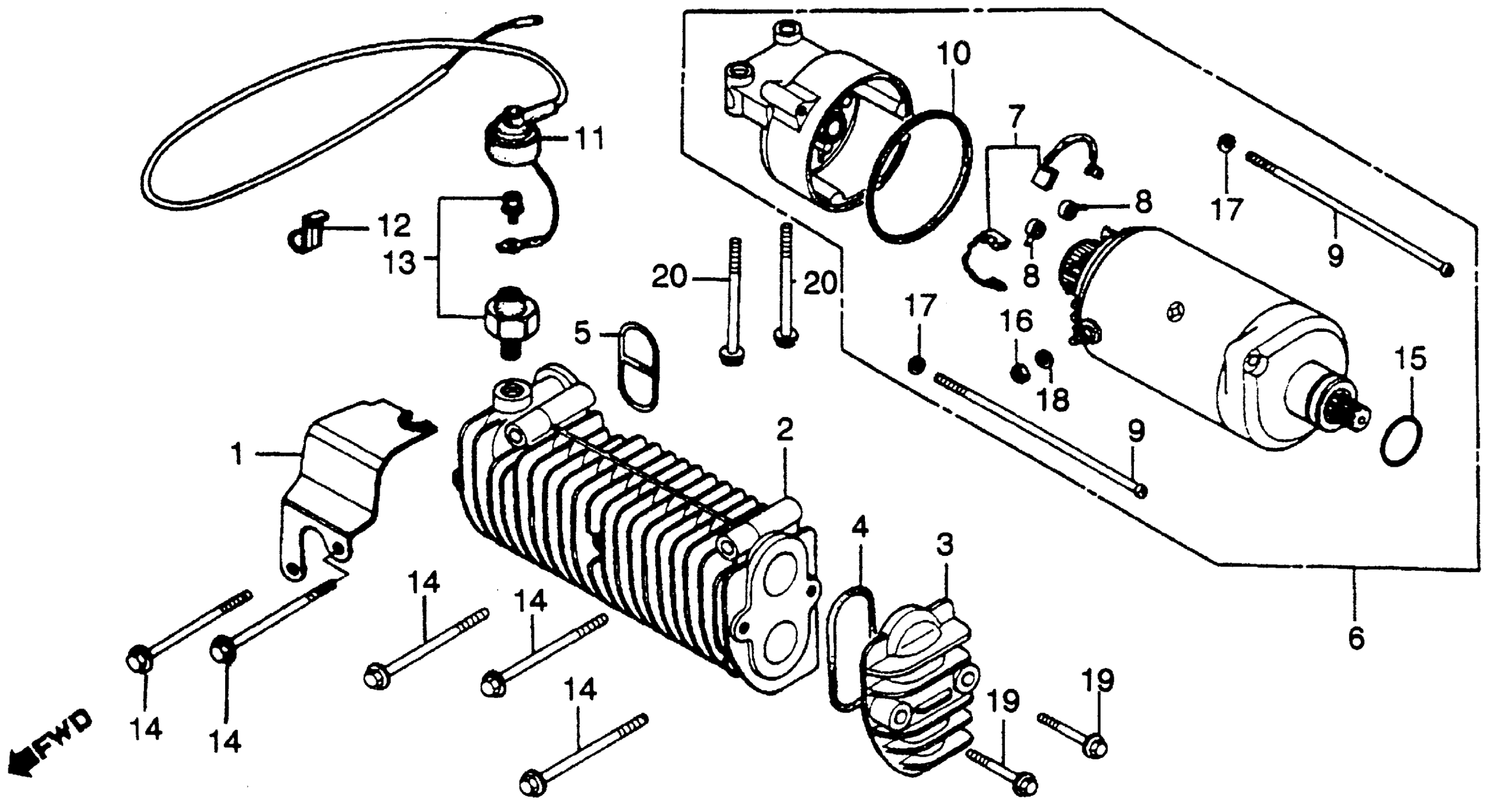

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 STARTER MOTOR + OIL COOLER Diagram

#

Description
Price

1

PROTECTOR, PRESSURE SWITCH (NOT AVAILABLE)

11711-MC0-000

Unavailable

2

COOLER, OIL (NOT AVAILABLE)

15811-MC0-000

Unavailable

3

CAP, OIL COOLER (NOT AVAILABLE)

15812-MC0-000

Unavailable

4

GASKET, OIL COOLER CAP (NOT AVAILABLE)

15911-417-000

Unavailable

5

GASKET, OIL COOLER

15912-MC0-000

Unavailable

6

MOTOR ASSY., STARTER This part replaces 31200-MC0-671.

31200-MC0-673

Unavailable

6

MOTOR ASSY., STARTER This part replaces 31200-MC0-672.

31200-MC0-673

Unavailable

6

MOTOR ASSY., STARTER

31200-MC0-673

Unavailable

7

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

8

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

8

SPRING, BRUSH

31204-230-174

$4.64

9

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

10

O-RING (60X1.4)

31206-402-008

Unavailable

11

CABLE, OIL PRESSURE SWITCH SUB (NOT AVAILABLE)

32111-MC9-740

Unavailable

12

CLIP, ENGINE WIRE HARNESS (NOT AVAILABLE)

32185-413-000

Unavailable

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

13

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

14

BOLT, FLANGE (6X85) (NOT AVAILABLE)

90035-MC0-000

Unavailable

15

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

15

O-RING (24.4X3.1)

91312-MG7-003

$6.34

16

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

16

NUT, HEX. (6MM)

94002-06000-0S

$1.49

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

19

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

20

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

20

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
