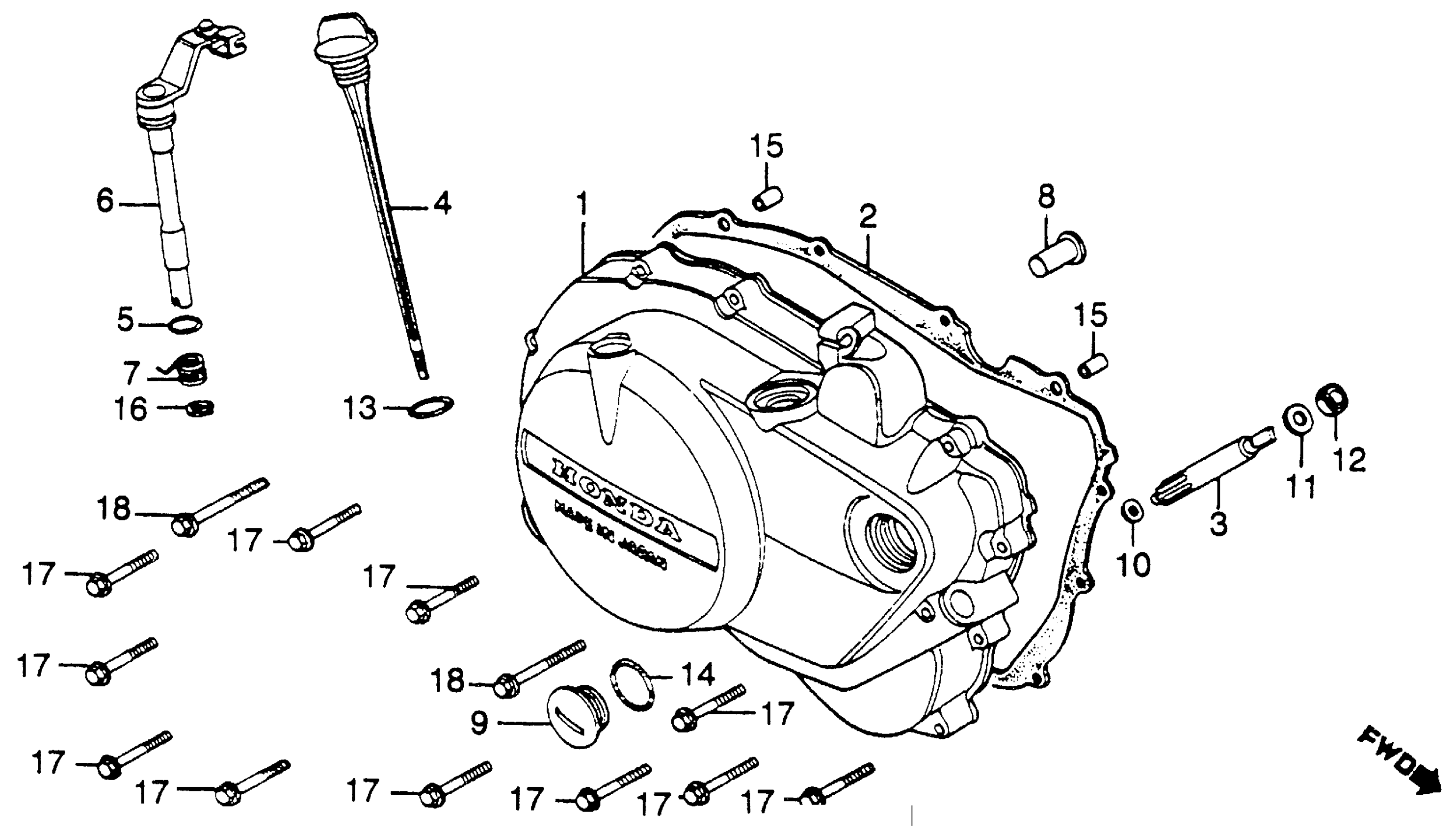

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MC0-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11393-MC0-000.

11393-MC0-010

$18.61

2

GASKET, R. CRANKCASE COVER

11393-MC0-010

$18.61

3

GEAR, TACHOMETER

12431-KK9-960

Unavailable

4

DIPSTICK, OIL

15650-443-790

Unavailable

5

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

6

LEVER, CLUTCH (NOT AVAILABLE)

22810-443-790

Unavailable

7

SPRING, CLUTCH LEVER

22815-413-000

$3.08

8

ROD, CLUTCH LIFTER

22847-ME0-000

Unavailable

9

BOLT, SPECIAL (25MM)

90008-443-000

Unavailable

10

WASHER B, TACHOMETER (NOT AVAILABLE)

90446-611-920

Unavailable

11

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

12

OIL SEAL (4.8X14.5X5) (ARAI)

91256-425-003

$5.13

12

OIL SEAL (4.8X14.5X5) (ARAI) This part replaces 91256-425-005.

91256-425-003

$5.13

13

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

13

O-RING (22X3.0)

91307-425-003

$2.59

14

O-RING (25.4X2.4)

91307-703-000

Unavailable

15

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

16

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

17

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

17

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

18

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
