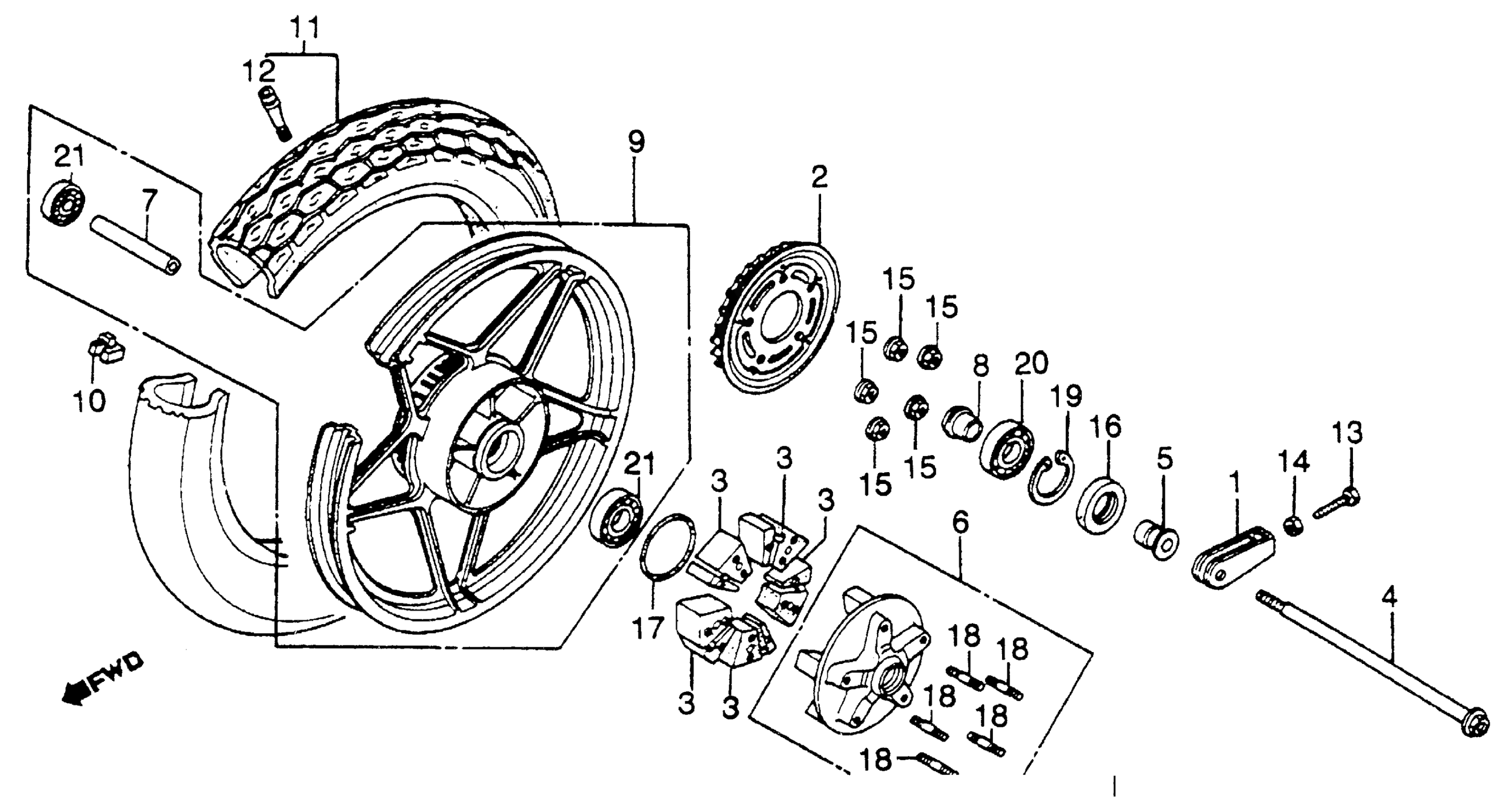

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 REAR WHEEL 83-86 Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-MC9-670.

40543-443-760

Unavailable

1

ADJUSTER, DRIVE CHAIN

40543-443-760

Unavailable

2

SPROCKET, FINAL DRIVEN (36T) (NOT AVAILABLE)

41200-MC9-670

Unavailable

3

DAMPER, RR. WHEEL

41241-MC9-770

Unavailable

4

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MA6-000

Unavailable

5

COLLAR, RR. WHEEL (NOT AVAILABLE)

42312-MC9-670

Unavailable

6

FLANGE ASSY., FINAL DRIVEN

42610-MC9-670

Unavailable

7

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-286-000

Unavailable

8

COLLAR B, RR. AXLE DISTANCE

42625-MA6-000

Unavailable

9

WHEEL, RR.

42650-MC9-770

Unavailable

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

10

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-671.

42710-ME2-672

Unavailable

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-672.

42710-ME2-672

Unavailable

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-673.

42710-ME2-672

Unavailable

12

VALVE, RIM (BS)

42753-425-003

$11.00

12

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

13

BOLT, CHAIN ADJUSTING

90119-413-000

$3.69

14

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

15

NUT, HEX. (10MM)

90308-357-000

$4.85

16

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

16

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

16

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

17

O-RING (61X2)

91302-MA6-003

$5.17

18

BOLT, STUD (10X45)

92716-10045-0E

$2.75

19

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

19

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

19

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

20

BEARING, RADIAL BALL (6204) (NOT AVAILABLE)

96120-62040-10

Unavailable

21

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
