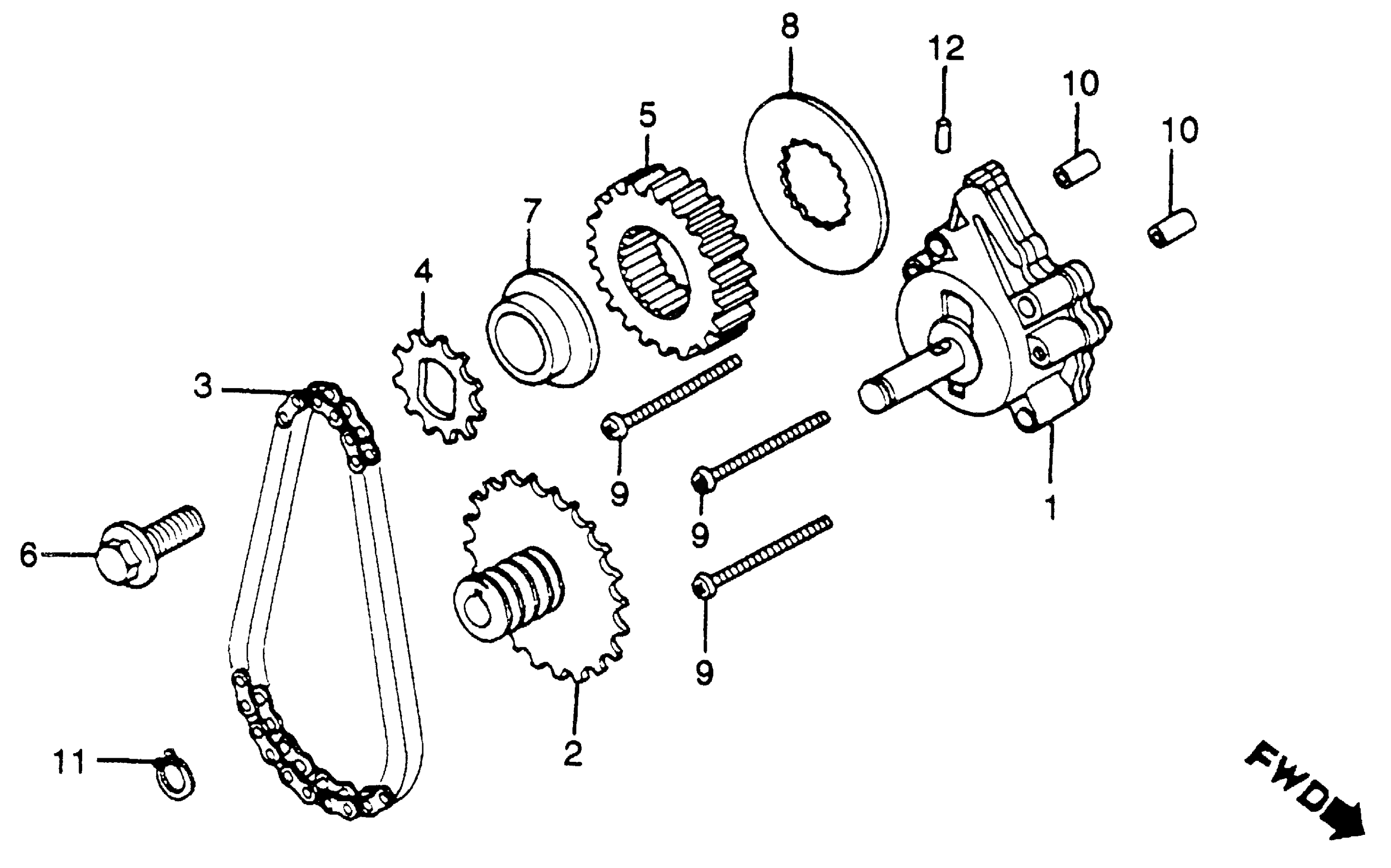

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL This part replaces 15100-MC0-000.

15100-MC0-010

Unavailable

1

PUMP ASSY., OIL

15100-MC0-010

Unavailable

2

SPROCKET, OIL PUMP (NOT AVAILABLE)

15110-413-010

Unavailable

3

CHAIN, OIL PUMP This part replaces 15140-MC0-003.

15141-KJ9-003

Unavailable

4

SPROCKET, OIL PUMP DRIVE (17T) (NOT AVAILABLE)

15151-413-000

Unavailable

5

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-MC0-000

Unavailable

6

BOLT, FLANGE (12X25)

90019-413-000

$5.62

7

COLLAR, DISTANCE

90406-MC0-000

Unavailable

8

WASHER, SPLINE

90407-413-020

Unavailable

9

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.29

9

SCREW, PAN (6X40)

93500-06040-0A

$1.29

10

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

11

CIRCLIP (OUTER) (11MM)

94510-11000

$0.65

12

ROLLER (4X10)

96220-40100

$0.45
