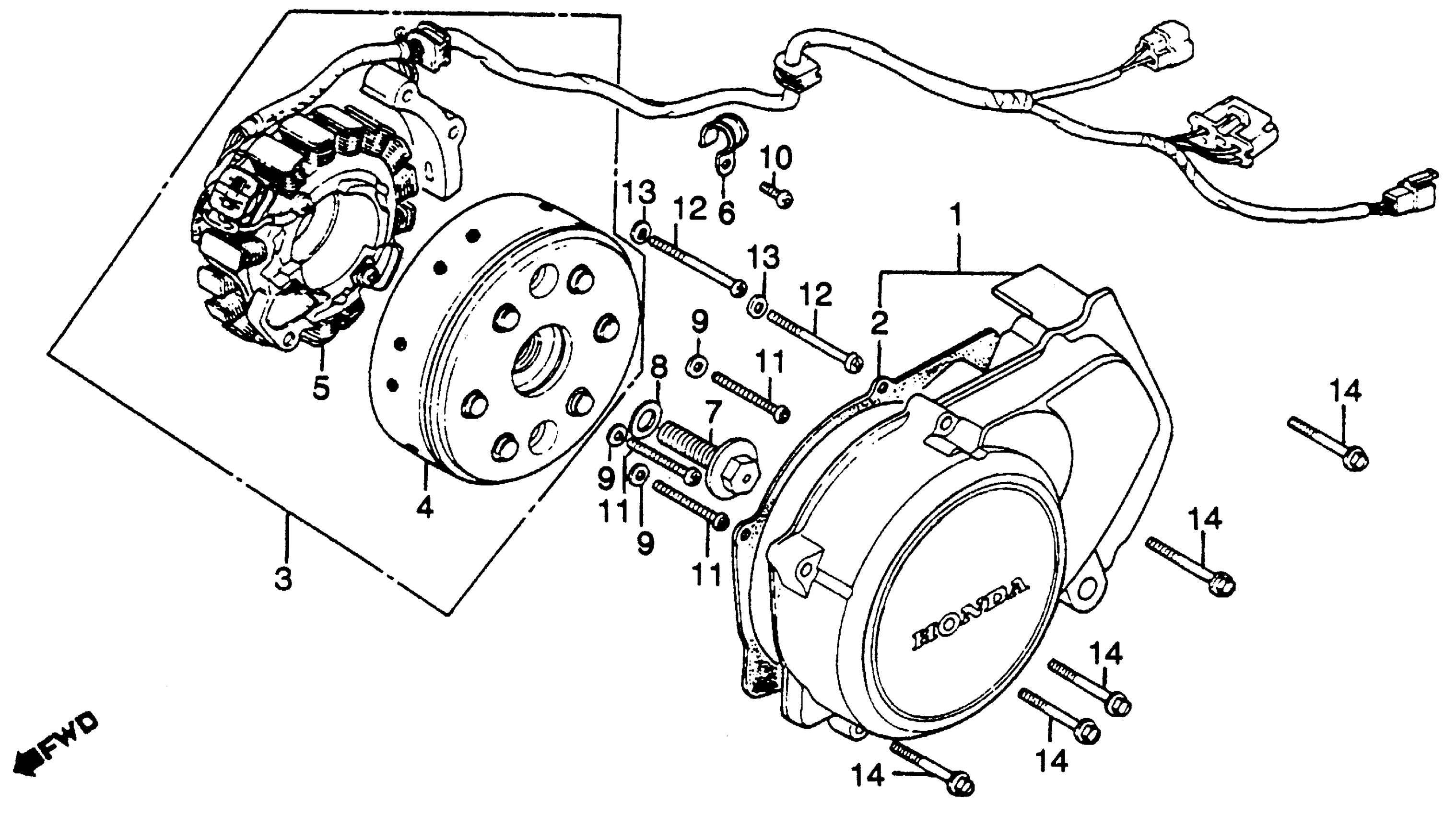

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. SIDE This part replaces 11360-MC9-760.

11360-MC9-405

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11492-413-300.

11492-413-306

Unavailable

GASKET, L. CRANKCASE COVER

11492-413-306

Unavailable

ALTERNATOR ASSY. This part replaces 31100-MC9-701.

31100-443-720

Unavailable

ROTOR

31110-443-720

Unavailable

STATOR (HITACHI) This part replaces 31120-MC9-701.

31120-413-881

Unavailable

STATOR (HITACHI)

31120-413-881

Unavailable

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

BOLT, FLANGE (12X45)

90025-KK9-960

$9.98

WASHER (12X30X4.5)

90401-KK9-960

Unavailable

WASHER, THRUST (12MM) (NOT AVAILABLE)

90457-333-000

Unavailable

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
