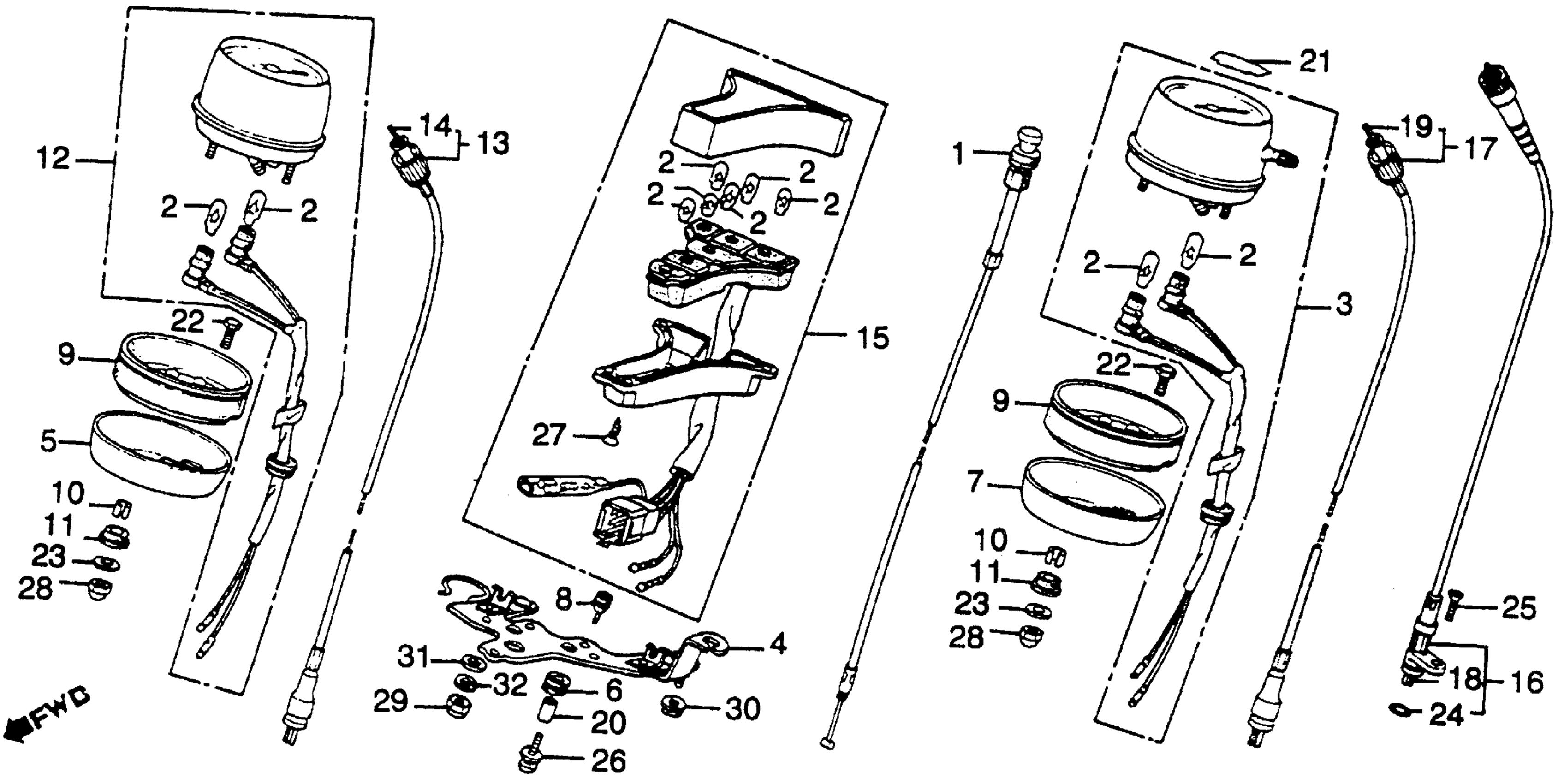

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 INSTRUMENTS Diagram

#

Description
Price

1

CABLE, CHOKE This part replaces 17950-447-000.

17950-448-000

Unavailable

1

CABLE, CHOKE

17950-448-000

Unavailable

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.99

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.99

2

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$3.99

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.99

3

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-MC9-831

Unavailable

4

BRACKET, INSTRUMENT (NOT AVAILABLE)

37211-MC9-670

Unavailable

5

RING, R. METER SETTING

37212-447-000

$36.26

6

RUBBER, PILOT BOX MOUNTING (NOT AVAILABLE)

37213-443-760

Unavailable

7

RING, L. METER SETTING

37213-447-000

$35.93

8

STOPPER, INSTRUMENT BRACKET (NOT AVAILABLE)

37214-443-760

Unavailable

9

RUBBER, METER

37242-323-701

$15.86

10

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

11

RUBBER, METER SETTING

37244-307-670

$2.47

12

TACHOMETER ASSY. This part replaces 37250-MC9-831.

37250-MC9-861

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-MC9-830.

37260-MC9-860

Unavailable

13

CABLE ASSY., TACHOMETER

37260-MC9-860

Unavailable

14

CABLE (INNER) This part replaces 37261-GJ1-300.

44831-KB2-300

Unavailable

14

CABLE (INNER) This part replaces 37261-413-000.

44831-KB2-300

Unavailable

15

PILOT ASSY., COMBINATION

37600-MC9-740

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-MC9-770.

44830-MJ1-000

$24.47

16

CABLE ASSY., SPEEDOMETER

44830-MJ1-000

$24.47

18

CABLE (INNER) This part replaces 44831-MC9-770.

44831-MJ1-300

Unavailable

18

CABLE (INNER) This part replaces 44831-MG9-300.

44831-MJ1-300

Unavailable

18

CABLE (INNER)

44831-MJ1-300

Unavailable

20

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$2.87

22

BOLT, METER SETTING

90159-356-000

$4.66

23

WASHER (6.5X18)

90545-323-700

$1.84

24

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.87

24

O-RING (6.8X1.9)

91306-PJ4-000

$2.87

24

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.87

25

SCREW, OVAL (5X16)

93700-05016-0G

$0.65

26

SCREW-WASHER (5X16)

93894-05016-00

$0.94

27

SCREW, TAPPING (4X16)

93903-24480

$0.84

28

NUT, CAP (6MM)

94021-06020

$2.07

28

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

28

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

29

NUT, CAP (8MM)

94021-08020-0S

$2.07

30

NUT, FLANGE (8MM)

94050-08000

$0.87

31

WASHER, PLAIN (8MM)

94101-08000

$0.76

32

WASHER, SPRING (8MM)

94111-08000

$0.91
