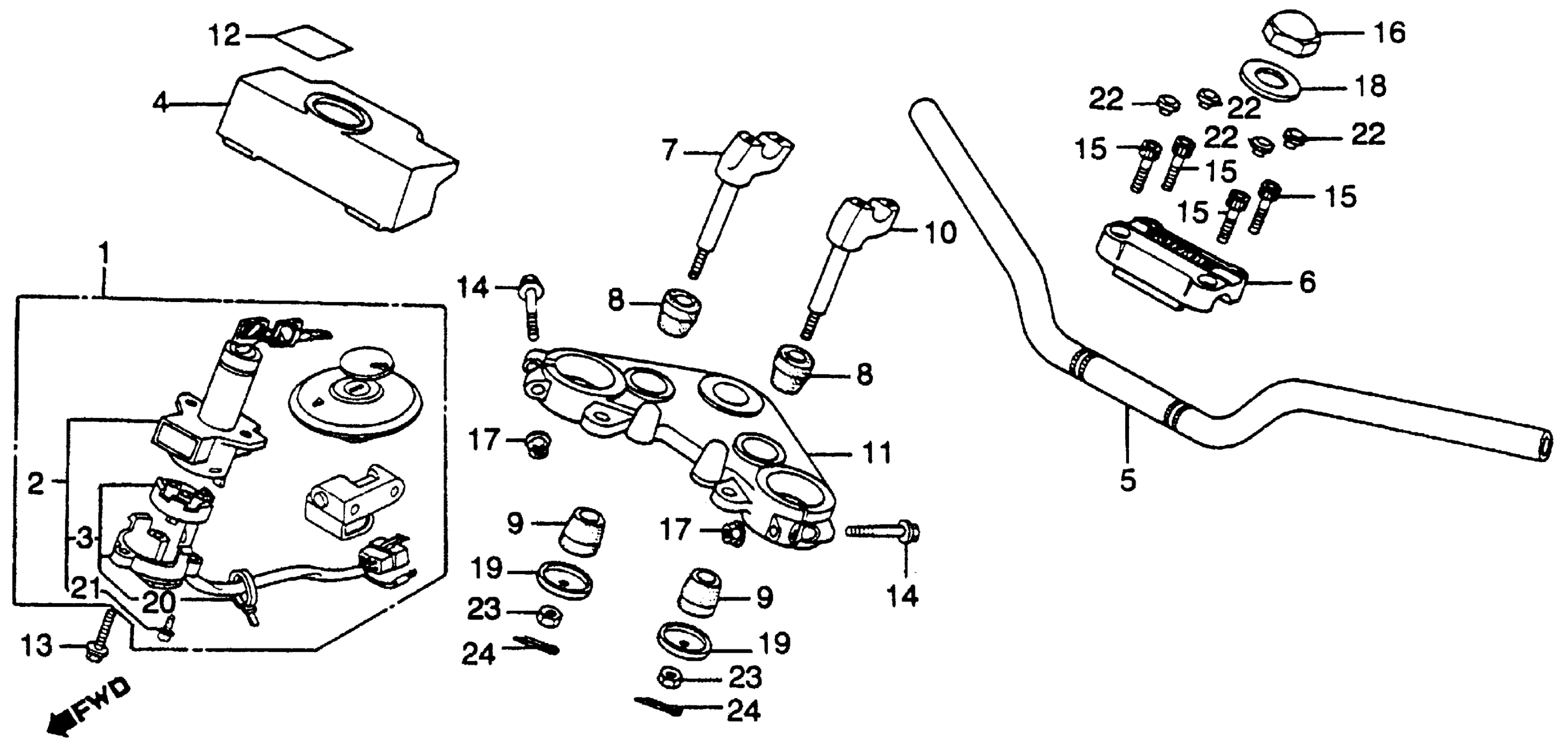

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) | Use up to Frame SN GM401187 This part replaces 35010-MC9-740.

35010-MC9-741

Unavailable

1

LOCK SET (NOT AVAILABLE) | Use from Frame SN GM401188

35010-MC9-741

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-MC9-741

Unavailable

3

BASE, CONTACT (NOT AVAILABLE)

35101-MC9-740

Unavailable

4

CASE, COMBINATION SWITCH

35102-MC9-670

Unavailable

5

HANDLEBAR (NOT AVAILABLE)

53100-MC9-830

Unavailable

6

HOLDER, HANDLEBAR

53131-MC9-670

Unavailable

7

HOLDER, R. (LOWER) (NOT AVAILABLE)

53132-MC9-670

Unavailable

8

RUBBER, HANDLEBAR CUSHION

53133-237-680

$4.76

9

RUBBER, HANDLEBAR CUSHION

53133-385-000

$5.22

10

HOLDER, L. (LOWER) (NOT AVAILABLE)

53134-MC9-670

Unavailable

11

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-MC9-670

Unavailable

12

LABEL, FR. SHOCK CAUTION (NOT AVAILABLE)

87517-MC9-670

Unavailable

13

BOLT, COMBINATION SWITCH SETTING (NOT AVAILABLE)

90105-MC7-000

Unavailable

14

BOLT, FLANGE (7X54)

90155-329-790

Unavailable

15

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

16

NUT, STEERING STEM (NOT AVAILABLE)

90304-MC9-670

Unavailable

17

NUT, FLANGE (7MM)

90355-MA6-000

Unavailable

17

NUT, FLANGE (7MM) This part replaces 90355-329-790.

90355-MA6-000

Unavailable

18

WASHER, STEERING STEM (NOT AVAILABLE)

90503-428-900

Unavailable

19

WASHER, RUBBER

90535-292-000

$2.03

20

BAND, SELF-LOCK

91058-MG9-681

$2.21

21

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39

22

CAP, SOCKET BOLT

91456-371-770

$3.47

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, COTTER (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49
