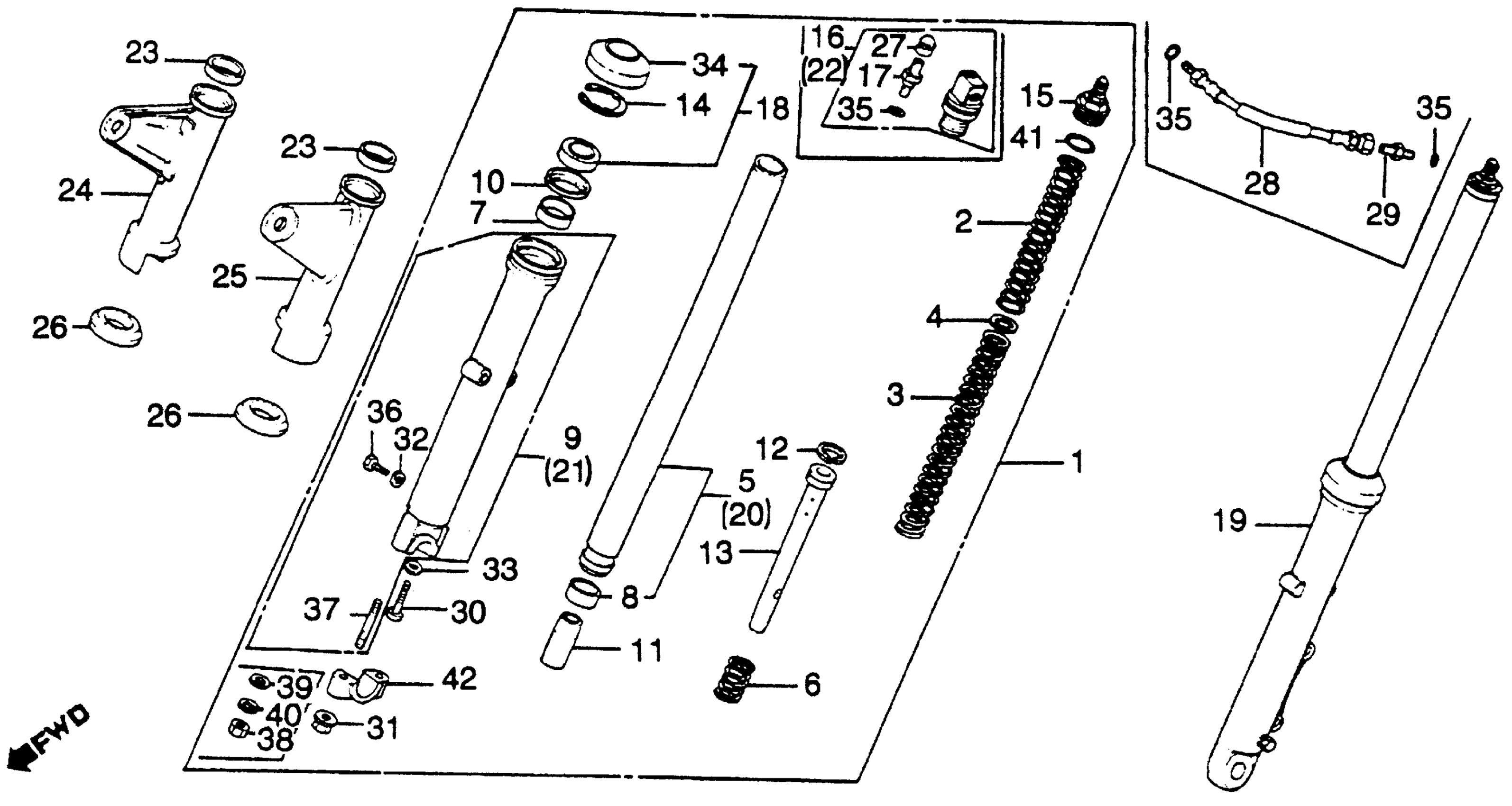

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 FRONT FORK Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. FR. (SHOWA)

51400-MC9-741

Unavailable

2

SPRING A, FR. FORK (NOT AVAILABLE)

51401-MC9-671

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-MC9-671

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-961-003

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-MC9-741

Unavailable

6

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

7

BUSH, GUIDE

51414-447-731

$15.25

8

BUSH, SLIDER (NOT AVAILABLE)

51415-MC9-671

Unavailable

9

CASE, R. (LOWER)

51421-MC9-741

Unavailable

10

RING, BACK-UP

51422-376-305

Unavailable

11

PIECE, OIL LOCKING

51432-447-731

$27.42

12

RING, PISTON

51437-413-003

$7.96

13

PIPE, SEAT

51440-MC9-671

Unavailable

14

RING, OIL SEAL STOP

90601-GC4-731

Unavailable

15

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-KB9-003

Unavailable

18

SEAL SET, FR. FORK

51490-413-305

Unavailable

19

SHOCK ABSORBER ASSY., L. FR. (SHOWA)

51500-MC9-741

Unavailable

20

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-MC9-741

Unavailable

21

CASE, L. (LOWER)

51521-MC9-741

Unavailable

23

CUSHION, FORK COVER (UPPER) (NOT AVAILABLE)

51601-447-000

Unavailable

24

COVER, R. FR. FORK (NOT AVAILABLE)

51602-MC9-670

Unavailable

25

COVER, L. FR. FORK (NOT AVAILABLE)

51606-MC9-670

Unavailable

26

RUBBER B, FR. FORK COVER

51622-317-700

Unavailable

30

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

31

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

31

NUT, FLANGE (8MM)

90309-428-731

$3.35

32

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

33

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

34

DUST SEAL, FR. FORK

91254-413-881

$25.92

36

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

36

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

37

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable

41

O-RING (23X2.8)

94608-50000

$1.49

42

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
