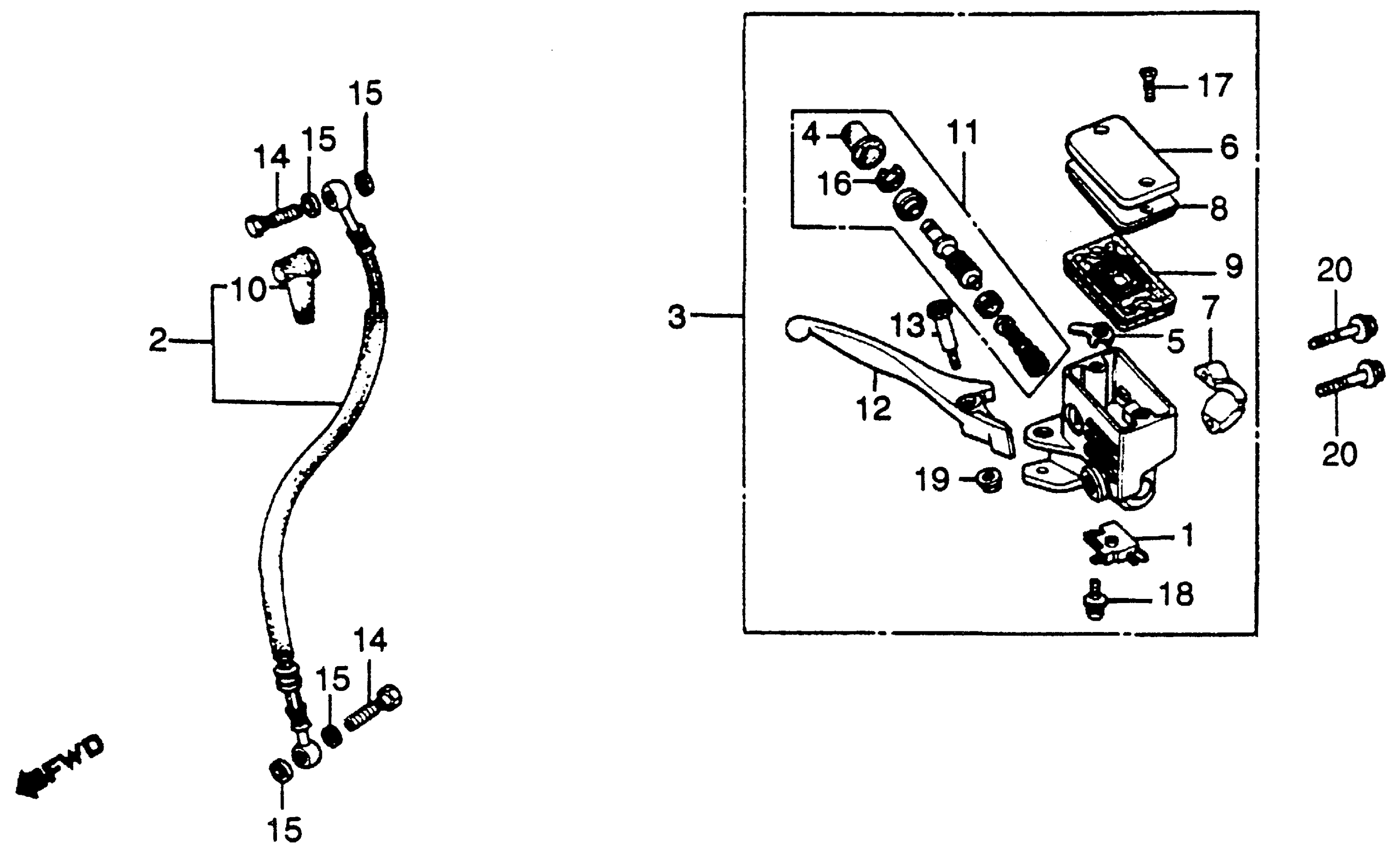

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 FR. BRAKE MASTER CYL. II Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$22.48

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-MC9-673

Unavailable

3

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-KC1-306)

45500-KC1-603

Unavailable

4

BOOT

45504-410-003

$11.17

5

PROTECTOR

45512-MA6-006

$4.09

6

CAP This part replaces 45513-MA6-623.

45540-MA6-621

$15.68

6

CAP

45540-MA6-621

$15.68

7

HOLDER, MASTER CYLINDER

45517-MA5-671

$28.72

8

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

9

DIAPHRAGM

45520-MA5-672

$16.64

10

BOOT, MASTER CYLINDER

45522-422-000

$7.99

11

MASTER CYLINDER SET

45530-MA4-671

$43.86

12

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

13

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

14

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

14

BOLT, OIL (10X22)

90145-KM3-751

$10.11

14

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$10.11

15

WASHER, OIL BOLT

90545-300-000

$6.56

16

CIRCLIP

90651-MA5-671

$2.38

17

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

18

SCREW-WASHER (4X12)

93893-04012-08

$1.24

18

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.24

19

NUT, FLANGE (6MM)

94050-06000

$0.60

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.66

20

BOLT, FLANGE (6X25)

95701-06025-07

$1.66
