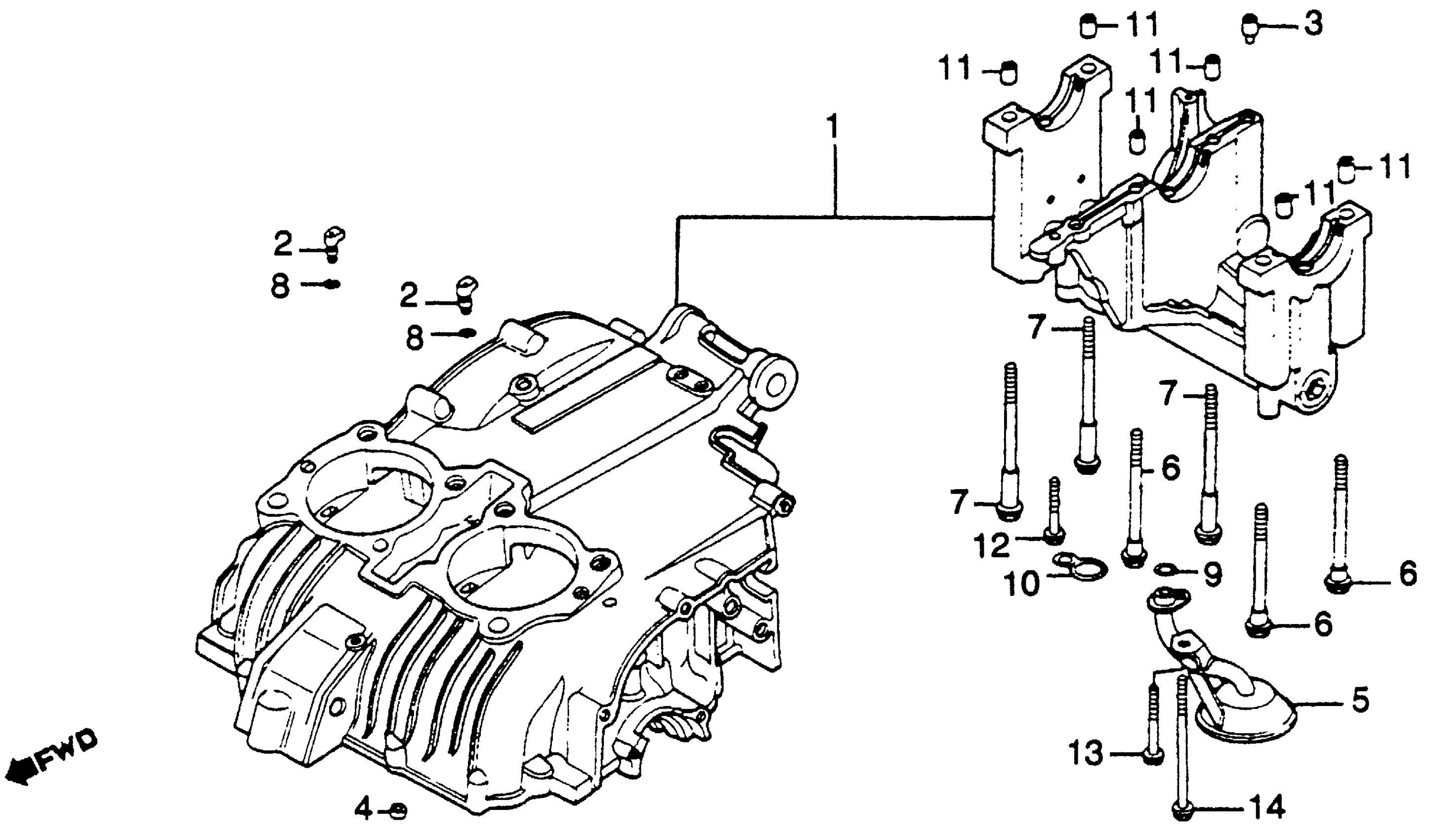

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 CRANKCASE SET Diagram

CRANKCASE SET This part replaces 11000-MC0-000.

11000-MC0-305

Unavailable

JET, OIL (NOT AVAILABLE)

11146-MC0-000

Unavailable

ORIFICE (2MM) (NOT AVAILABLE)

11901-413-000

Unavailable

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12902-413-000

Unavailable

STRAINER, OIL (NOT AVAILABLE)

15141-413-010

Unavailable

BOLT, BEARING CAP

90002-611-000

Unavailable

BOLT, FLANGE (10X122) (NOT AVAILABLE)

90009-413-005

Unavailable

O-RING (3.6X1.4) (NOT AVAILABLE)

91301-MC0-000

Unavailable

O-RING (15X2.5)

91302-377-000

$5.31

O-RING (24X1.5)

91307-413-005

Unavailable

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X115) This part replaces 95700-06115-00.

95701-06115-00

$3.09

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
