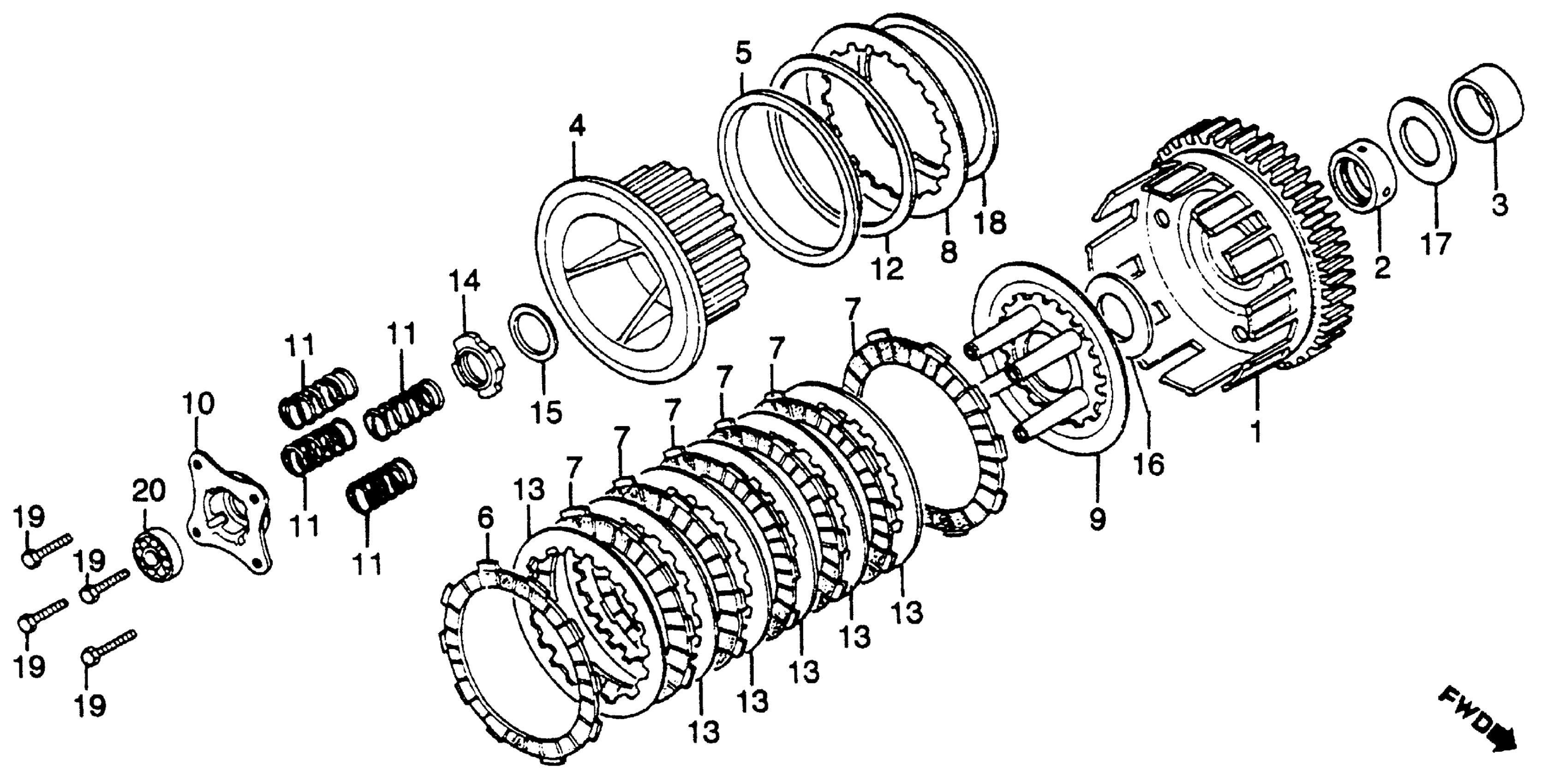

Honda CB450SCA (86) NIGHTHAWK 450, JPN, VIN# JH2PC054-GM400004 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MC0-000.

22100-ML4-610

Unavailable

2

GUIDE, CLUTCH (OUTER) This part replaces 22116-MC0-000.

22116-MM2-670

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-MM2-670

Unavailable

3

COLLAR (25MM) (NOT AVAILABLE)

22118-MC0-000

Unavailable

4

CENTER, CLUTCH

22120-413-000

Unavailable

5

SEAT, DISK SPRING

22125-333-000

Unavailable

6

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

6

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

6

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

7

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

7

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

8

PLATE B, CLUTCH

22321-333-010

Unavailable

9

PLATE, CLUTCH PRESSURE

22350-413-000

Unavailable

10

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-413-010

Unavailable

11

SPRING, CLUTCH

22401-MC9-000

Unavailable

12

SPRING, DISK

22402-333-003

Unavailable

13

PLATE A, CLUTCH

23311-413-000

$11.30

14

NUT, LOCK (20MM) (NOT AVAILABLE)

90204-706-000

Unavailable

15

WASHER, LOCK

90432-121-000

$4.21

16

WASHER, THRUST (25X45X0.8)

90458-MC0-000

Unavailable

17

WASHER, THRUST (25X42X2.3)

90459-413-000

Unavailable

18

CLIP (OUTER) (94MM) (NOT AVAILABLE)

90609-413-000

Unavailable

19

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$1.49

19

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

20

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

20

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
