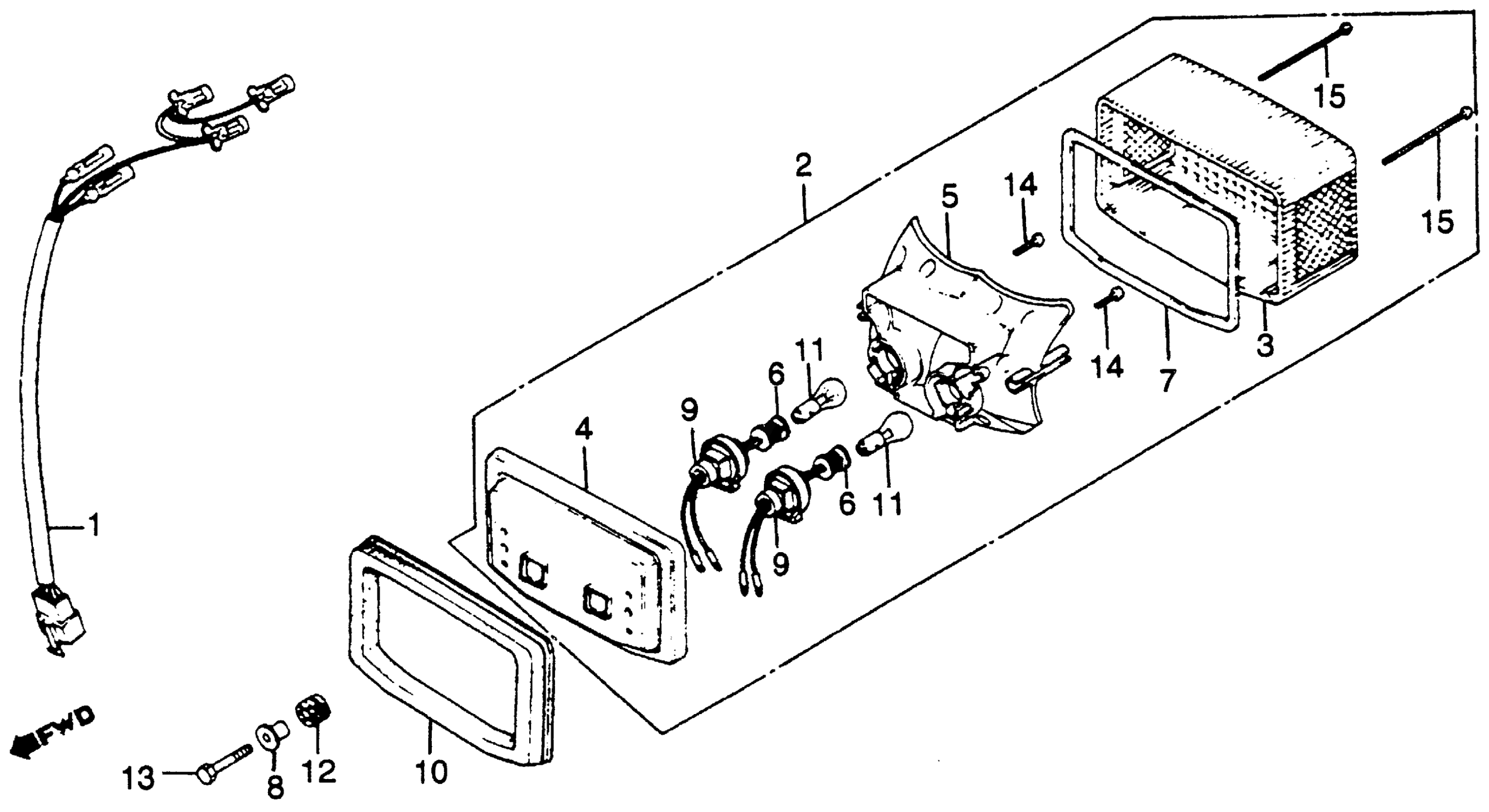

Honda CB450SCA (83) NIGHTHAWK 450, JPN, VIN# JH2PC054-DM100001 TO JH2PC054-DM102503 TAILLIGHT Diagram

SUB-WIRE HARNESS, TAILLIGHT (NOT AVAILABLE)

32102-MC9-670

Unavailable

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-425-772.

33701-MC9-830

Unavailable

LENS, TAILLIGHT

33702-425-771

Unavailable

BASE, TAILLIGHT

33703-425-772

Unavailable

REFLECTOR This part replaces 33704-425-771.

33704-460-791

Unavailable

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

GASKET, LENS

33708-425-771

Unavailable

COLLAR, TAILLIGHT MOUNT (NOT AVAILABLE)

33709-460-840

Unavailable

SOCKET, TAILLIGHT

33710-425-772

Unavailable

GASKET, TAILLIGHT BASE

33718-460-840

Unavailable

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

RUBBER, CUSHION (NOT AVAILABLE)

84905-460-840

Unavailable

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X55)

93500-04055-4J

$1.49
