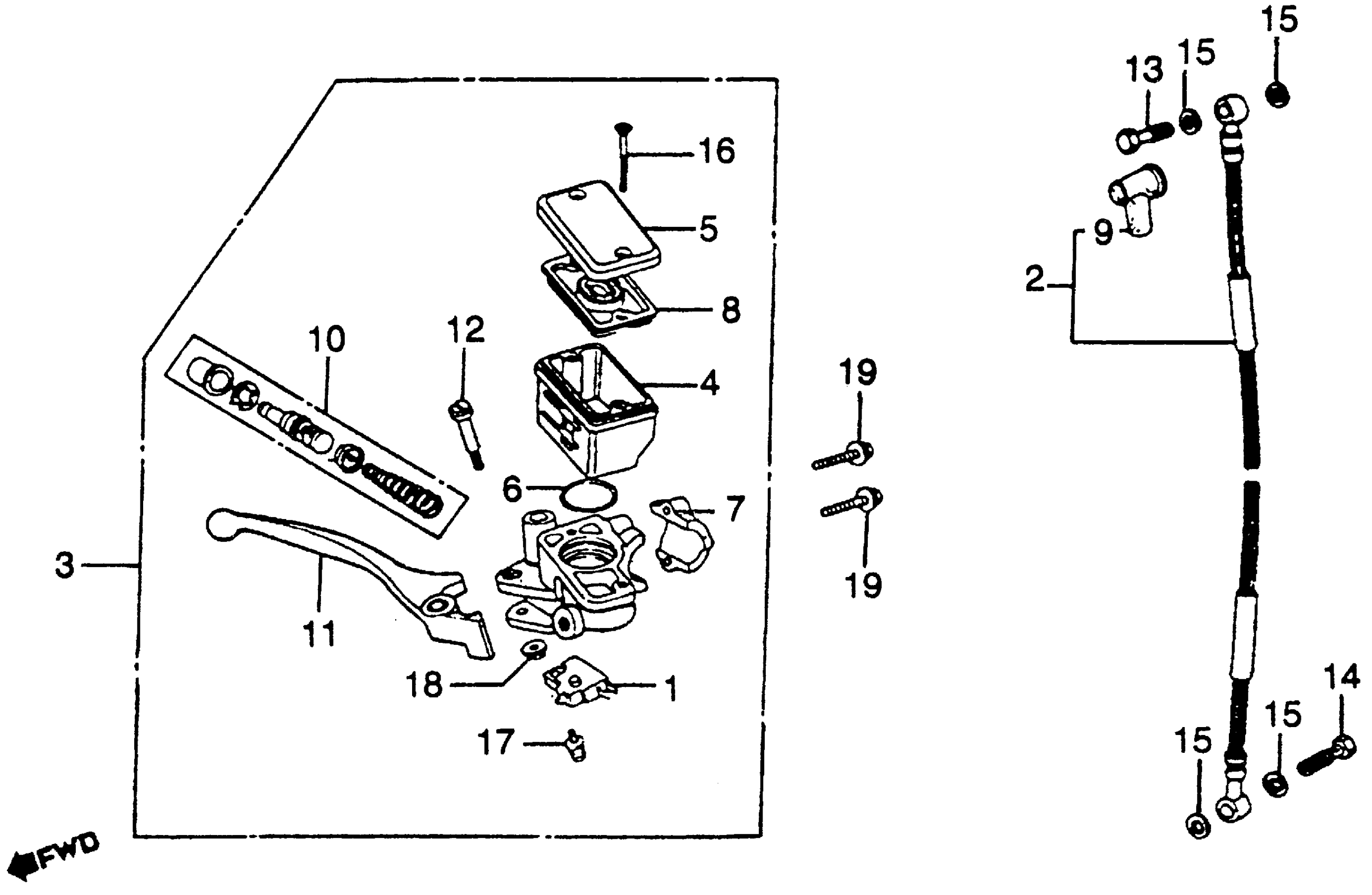

Honda CB450SCA (83) NIGHTHAWK 450, JPN, VIN# JH2PC054-DM100001 TO JH2PC054-DM102503 FRONT BRAKE MASTER + CYLINDER I Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-MC9-671.

45126-MC9-673

Unavailable

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-MC9-672.

45126-MC9-673

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NOT AVAILABLE)

45500-MA4-672

Unavailable

CUP, OIL

45511-MA5-671

$44.69

CAP, OIL CUP

45513-MA5-671

Unavailable

O-RING (26.7X2.4)

45516-166-006

$6.81

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

BOLT, OIL This part replaces 90145-460-840.

90145-300-010

$9.68

WASHER, OIL BOLT

90545-300-000

$3.99

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
