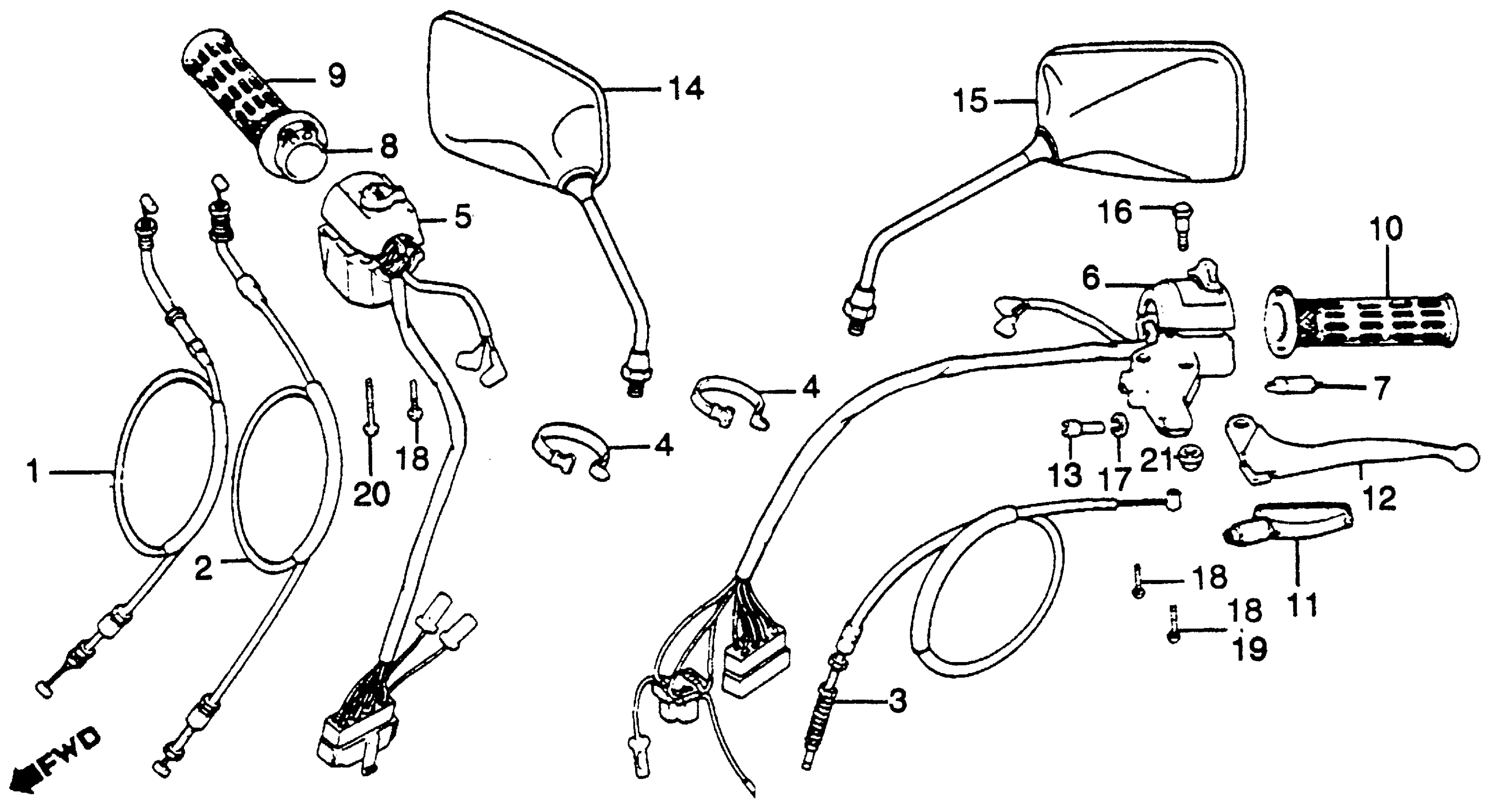

Honda CB450SCA (83) NIGHTHAWK 450, JPN, VIN# JH2PC054-DM100001 TO JH2PC054-DM102503 CONTROL LEVERS + SWITCHES + CABLES Diagram

CABLE A, THROTTLE This part replaces 17910-MC9-670.

17910-MC9-760

Unavailable

CABLE A, THROTTLE

17910-MC9-760

Unavailable

CABLE B, THROTTLE This part replaces 17920-MC9-670.

17920-MC9-760

Unavailable

CABLE B, THROTTLE

17920-MC9-760

Unavailable

CABLE, CLUTCH

22870-KG1-920

Unavailable

CABLE, CLUTCH This part replaces 22870-442-711.

22870-KG1-920

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE)

35130-MC9-670

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MC9-670

Unavailable

SWITCH, FR. LEVER

35330-413-003

$21.91

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLEBAR

53165-390-780

$10.88

GRIP, L. HANDLEBAR

53166-390-780

$10.88

COVER, L. HANDLEBAR LEVER

53172-402-700

$7.41

LEVER, L. HANDLEBAR

53178-399-700

$28.00

LEVER, L. HANDLEBAR This part replaces 53190-443-610.

53178-399-700

$28.00

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

MIRROR, R. (NOT AVAILABLE)

88110-MC9-670

Unavailable

MIRROR, L. (NOT AVAILABLE)

88120-MC9-670

Unavailable

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

NUT, FIXING

90321-315-670

$7.31

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X35)

93500-05035-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49
