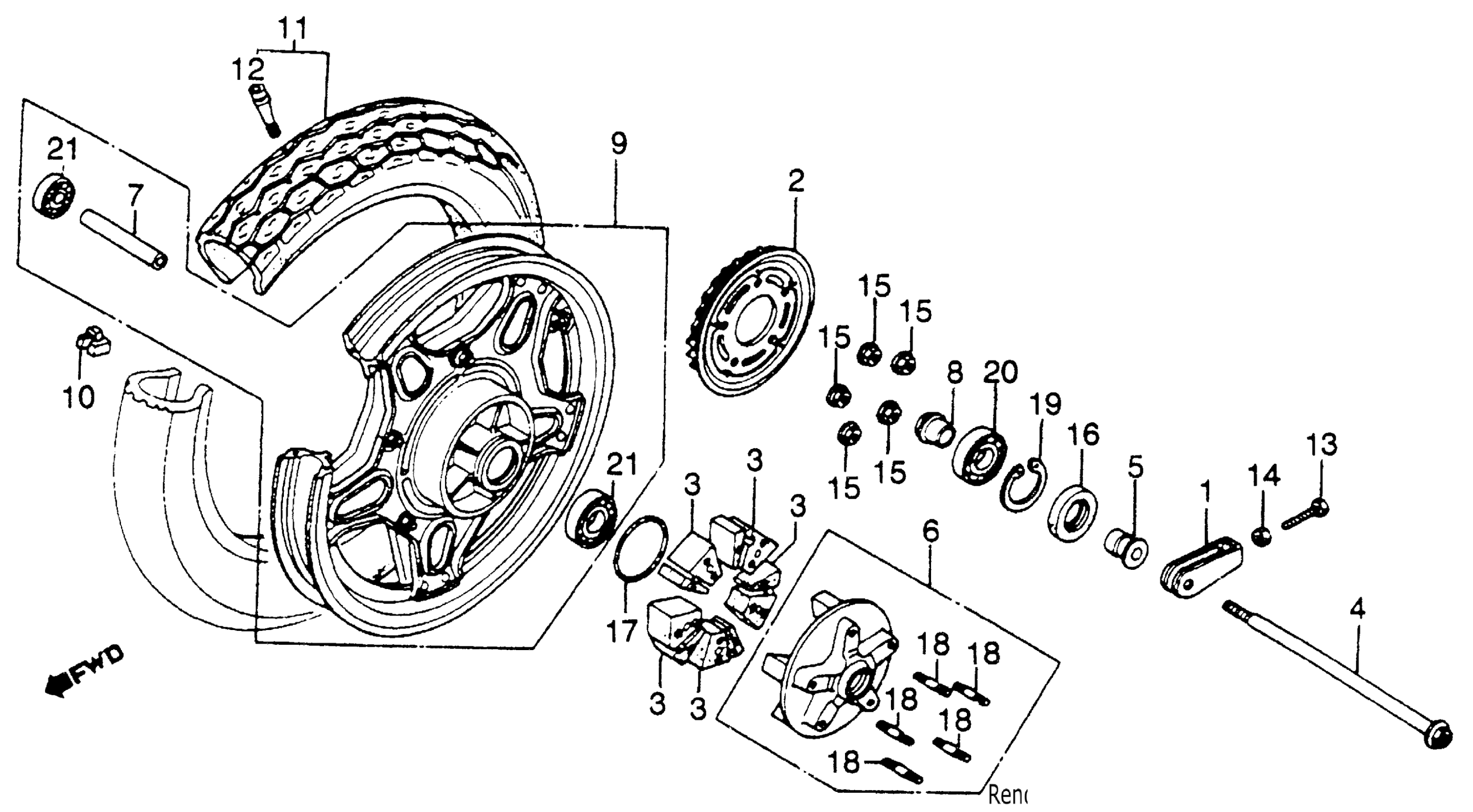

Honda CB450SCA (82) NIGHTHAWK 450, JPN, VIN# JH2PC054-CM000015 TO JH2PC054-CM019266 REAR WHEEL 82 Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-MC9-670.

40543-443-760

Unavailable

1

ADJUSTER, DRIVE CHAIN

40543-443-760

Unavailable

2

SPROCKET, FINAL DRIVEN (36T) (NOT AVAILABLE)

41200-MC9-670

Unavailable

3

DAMPER, RR. WHEEL

41241-MA6-000

$16.01

4

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MA6-000

Unavailable

5

COLLAR, RR. WHEEL (NOT AVAILABLE)

42312-MC9-670

Unavailable

6

FLANGE ASSY., FINAL DRIVEN

42610-MC9-670

Unavailable

7

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-286-000

Unavailable

8

COLLAR B, RR. AXLE DISTANCE

42625-MA6-000

Unavailable

9

WHEEL, RR. (NOT AVAILABLE)

42650-MC9-670

Unavailable

10

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

10

WEIGHT, BALANCE (30G)

42706-410-000

$10.79

11

TIRE ASSY., RR. (130/90-H16) (DUNLOP) This part replaces 42710-MB1-671.

42710-MB1-700

Unavailable

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE)

42710-MB1-672

Unavailable

11

TIRE ASSY., RR. (130/90-H16) (DUNLOP)

42710-MB1-700

Unavailable

11

TIRE ASSY., RR. (130/90-H16) (DUNLOP) This part replaces 42710-460-841.

42710-MB1-700

Unavailable

11

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-460-842.

42710-MB1-672

Unavailable

12

VALVE, RIM (BS)

42753-425-003

$10.10

12

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$10.10

13

BOLT, CHAIN ADJUSTING

90119-413-000

$3.75

14

NUT, CHAIN ADJUSTING

90307-283-000

$3.23

15

NUT, HEX. (10MM)

90308-357-000

$4.65

16

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.66

16

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.66

16

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66

17

O-RING (61X2) This part replaces 91302-MA6-000.

91302-MA6-003

$4.93

17

O-RING (61X2)

91302-MA6-003

$4.93

18

BOLT, STUD (60X40) (NOT AVAILABLE)

92714-10045-0E

Unavailable

19

CIRCLIP (INNER) (47MM)

94520-47000

$2.16

19

CIRCLIP (INNER) (47MM)

94521-47000

$2.21

19

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.21

20

BEARING, RADIAL BALL (6204) (NOT AVAILABLE)

96120-62040-10

Unavailable

21

BEARING, RADIAL BALL (6303U)

96140-63030-10

$13.34
