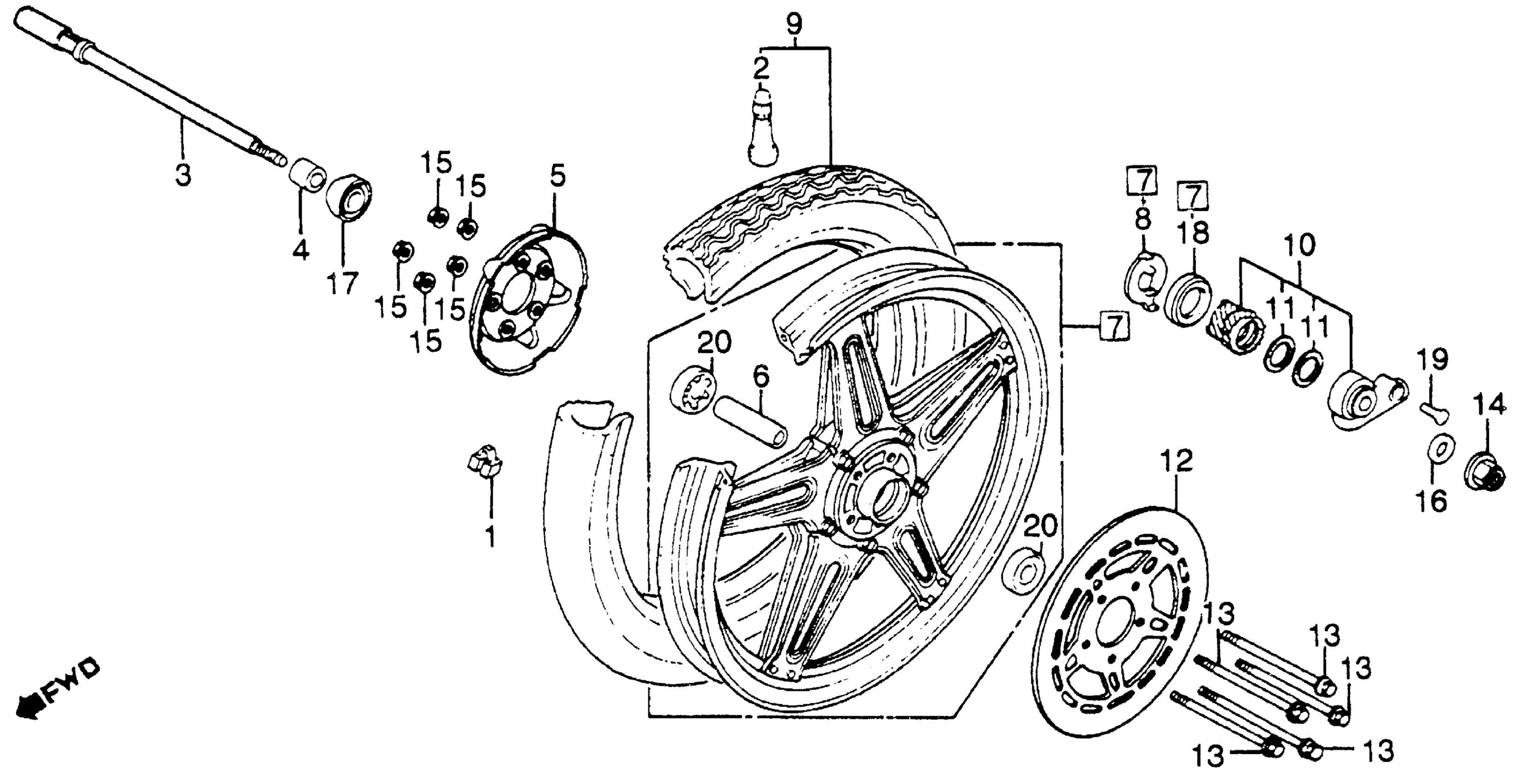

Honda CB450SCA (82) NIGHTHAWK 450, JPN, VIN# JH2PC054-CM000015 TO JH2PC054-CM019266 FRONT WHEEL 82 Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MC9-670

Unavailable

4

COLLAR, FR. WHEEL

44311-413-000

Unavailable

5

COVER, FR. WHEEL

44607-449-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-413-940

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE)

44710-MC9-671

Unavailable

9

TIRE ASSY., FR. (3.25S19) (4PR) (DUNLOP) (NOT AVAILABLE)

44710-MC9-672

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE) This part replaces 44800-MC9-671.

44800-449-003

Unavailable

11

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-413-941

Unavailable

13

BOLT, FLANGE (8X87) (NOT AVAILABLE)

90156-MC9-670

Unavailable

14

NUT, U (14MM)

90305-GE8-003

$3.86

14

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

15

NUT, FLANGE (8MM)

90308-460-841

$3.43

15

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

16

WASHER (15.2X25)

90557-230-000

$2.39

17

OIL SEAL (26X42X7)

91252-230-003

$10.56

17

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

18

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

18

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

18

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

19

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

20

BEARING, RADIAL BALL (6302Z)

96120-63020-10

Unavailable
