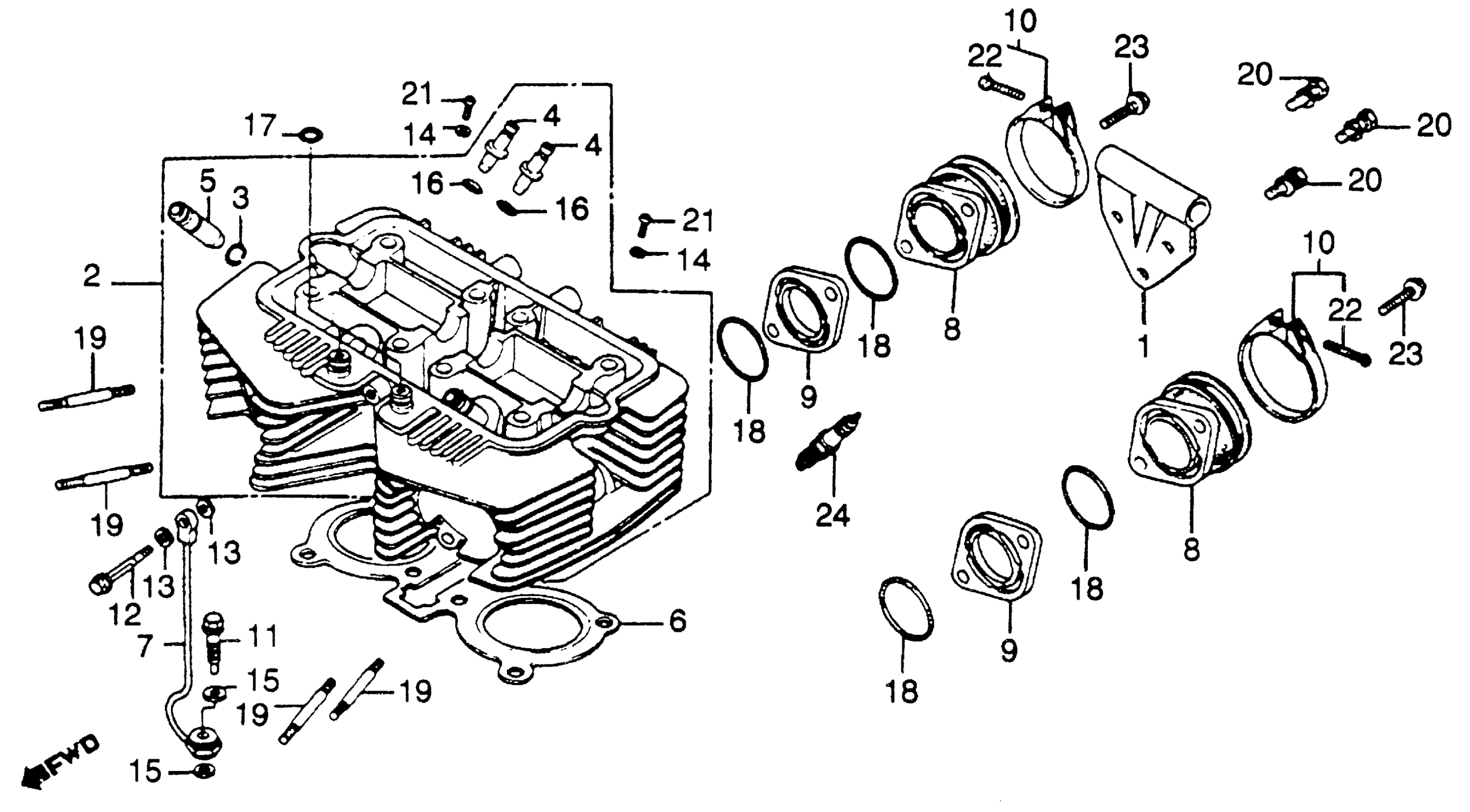

Honda CB450SCA (82) NIGHTHAWK 450, JPN, VIN# JH2PC054-CM000015 TO JH2PC054-CM019266 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, ENGINE HANGER (NOT AVAILABLE)

11851-413-000

Unavailable

2

CYLINDER HEAD

12200-MC0-000

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.06

4

GUIDE, VALVE This part replaces 12021-426-405.

12204-KW1-405

$10.65

4

GUIDE, VALVE This part replaces 12231-413-305.

12204-KW1-405

$10.65

5

GUIDE, EX. VALVE

12241-413-305

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MC0-000.

12251-MC0-405

Unavailable

6

GASKET, CYLINDER HEAD

12251-MC0-405

Unavailable

7

PIPE B, OIL

15520-MC0-000

Unavailable

8

INSULATOR, CARBURETOR

16211-447-670

Unavailable

10

BAND, INSULATOR

16219-ME9-000

$9.52

10

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$9.52

11

BOLT, OIL CONTROL (NOT AVAILABLE)

90045-MC0-000

Unavailable

12

BOLT, SPECIAL (6X44)

90130-MC0-000

Unavailable

13

WASHER, SEALING (7MM)

90441-MC0-000

$2.21

14

WASHER, SEALING (5MM)

90452-323-000

$1.54

15

WASHER, OIL BOLT (10.2X15X1.4)

90545-MC0-000

$3.23

15

WASHER, OIL BOLT

90545-300-000

$6.56

16

O-RING (10X1.6)

91301-200-000

$2.87

18

O-RING (40X2.4)

91325-413-830

$8.03

19

BOLT, STUD (6X65)

92700-06065-0B

$1.32

20

BOLT-WASHER (8X20)

93482-08020-08

$1.91

21

SCREW, PAN (5X8)

93500-05008-0H

$0.84

22

SCREW, PAN (5X20)

93500-05020-0G

$0.76

23

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.66

23

BOLT, FLANGE (6X18)

96001-06018-00

$1.66

24

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.00

24

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.00

24

SPARK PLUG (DR7ES) (NGK) This part replaces 98069-57716.

98069-57719

$2.19

24

SPARK PLUG (DR7ES) (NGK)

98069-57719

$2.19

24

SPARK PLUG (X22ESR-U) (DENSO)

98069-57726

$2.19

24

SPARK PLUG (DR8ES) (NGK) This part replaces 98069-58716.

98069-58719

$2.35

24

SPARK PLUG (DR8ES) (NGK)

98069-58719

$2.35

24

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.28

24

SPARK PLUG (X27ESR-U) (DENSO)

98069-59726

$2.28
