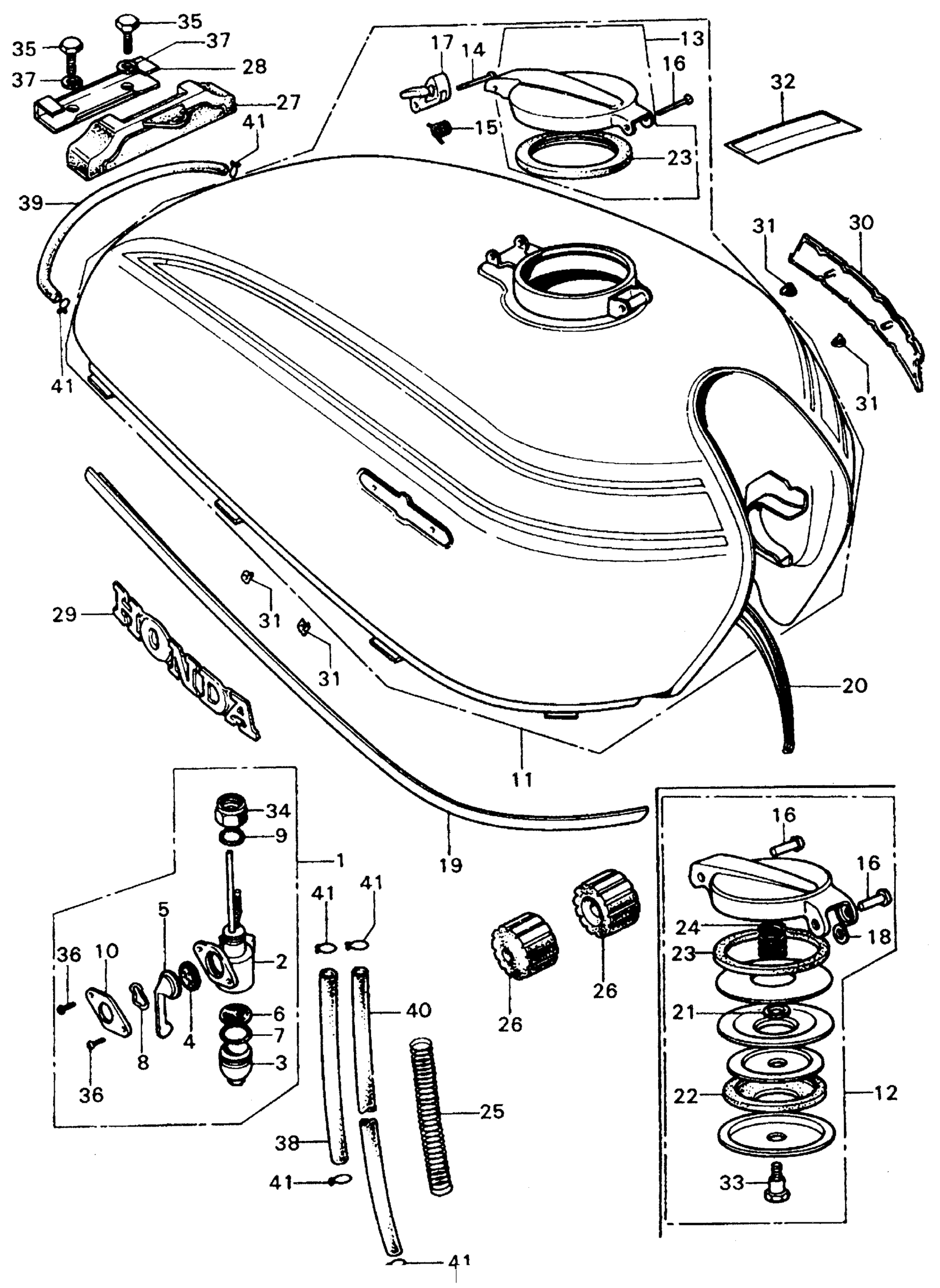

Honda CB450K7A MOTORCYCLE, JPN, VIN# CB450-7000001 TO CB450-7022920 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-292-000

$72.05

2

BODY, PETCOCK (NOT AVAILABLE)

16951-292-000

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

4

GASKET, PETCOCK

16953-283-000

$12.77

5

LEVER, FUEL (NOT AVAILABLE)

16953-298-000

Unavailable

6

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

7

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

9

GASKET, JOINT NUT

16956-283-000

$4.67

10

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-298-000

Unavailable

11

TANK, FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)

17050-457-710NC

Unavailable

11

TANK, FUEL *YR20MC* (MAXIM BROWN METALLIC CUSTOM) (NOT AVAILABLE)

17050-457-710QQ

Unavailable

11

TANK, FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE) This part replaces 17500-457-710NC.

17050-457-710NC

Unavailable

11

TANK, FUEL *YR20MC* (MAXIM BROWN METALLIC CUSTOM) (NOT AVAILABLE) This part replaces 17500-457-710QQ.

17050-457-710QQ

Unavailable

13

CAP, FUEL TANK

17510-323-310

Unavailable

14

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

15

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

16

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

17

CHECK, FUEL FILLER CAP (NA USE ALT:17550-377-315)

17517-300-340

Unavailable

19

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17521-346-670

Unavailable

20

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17522-346-670

Unavailable

23

GASKET, FUEL FILLER CAP

17525-300-000

$7.49

25

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

17531-346-000

Unavailable

26

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

27

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-336-000

Unavailable

28

PLATE, RR. CUSHION SETTING (NOT AVAILABLE)

17615-342-300

Unavailable

29

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-346-670

Unavailable

30

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-346-670

Unavailable

31

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

31

NUT, EMBLEM CLAMP

87311-634-600

$4.79

32

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

32

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

34

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

35

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

36

SCREW, PAN (3X6)

93500-03006-0A

$1.49

36

SCREW, PAN (3X6) This part replaces 93500-03006-0F.

93500-03006-0A

$1.49

36

SCREW, PAN (3X6) This part replaces 93500-03006-1A.

93500-03006-0A

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

BULK HOSE, FUEL (5.5X3000) (5.5X110)

95001-55003-60M

$47.32

39

BULK HOSE, FUEL (5.5X3000) (5.5X220)

95001-55003-60M

$47.32

40

BULK HOSE, FUEL (5.5X3000) (5.5X320)

95001-55003-60M

$47.32

41

CLIP, TUBE (B10)

95002-02100

$1.90
