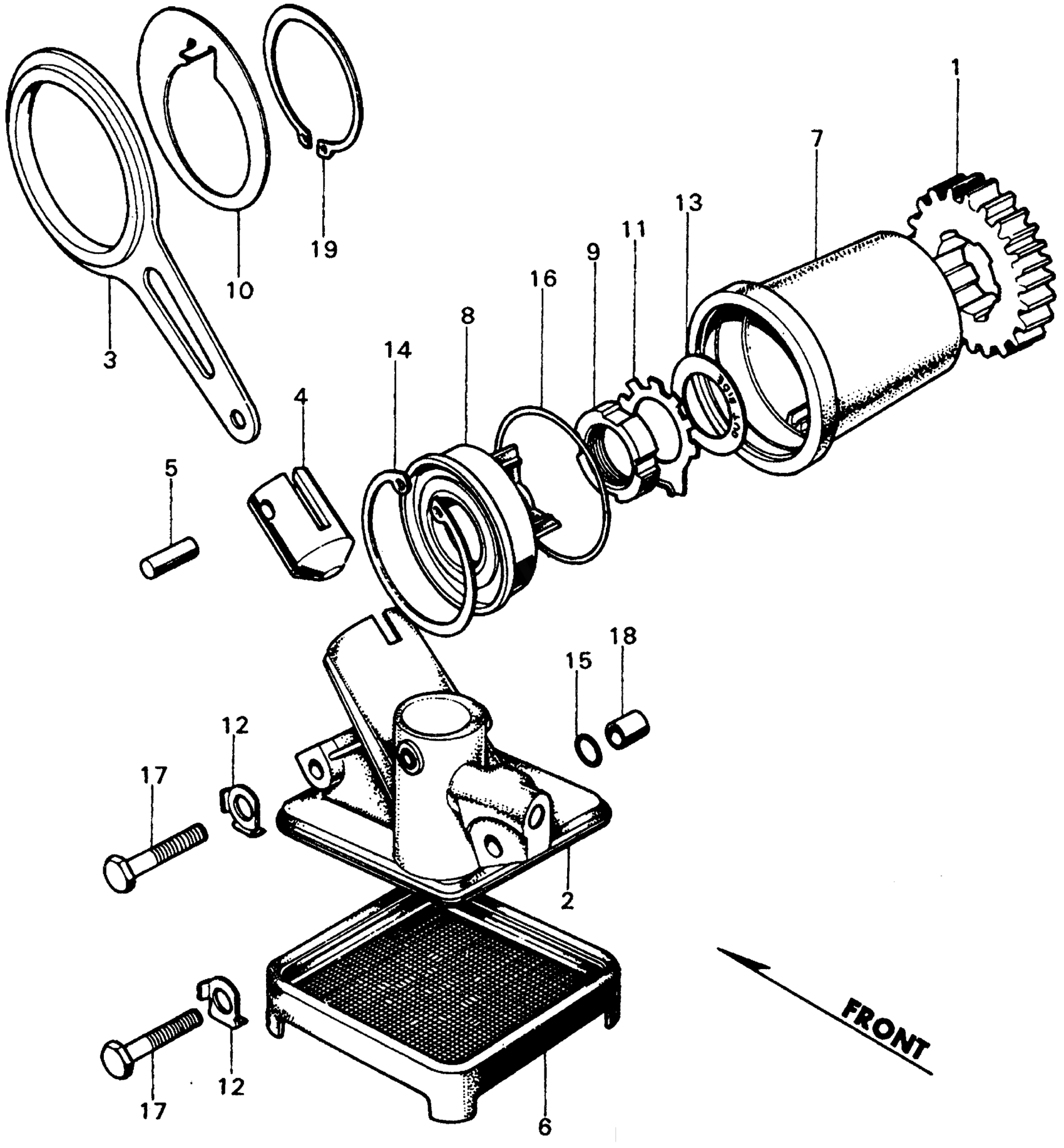

Honda CB450K6A MOTORCYCLE, JPN, VIN# CB450-6000001 TO CB450-6025991 OIL PUMP Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (23T) (NOT AVAILABLE)

13611-292-020

Unavailable

2

PUMP, OIL (NOT AVAILABLE)

15200-319-003

Unavailable

3

ROD, OIL PUMP

15205-292-030

$33.66

4

PLUNGER, OIL PUMP (NOT AVAILABLE)

15209-286-010

Unavailable

5

PIN, OIL PUMP PLUNGER (NOT AVAILABLE)

15210-286-000

Unavailable

6

SCREEN, OIL FILTER (NOT AVAILABLE)

15211-283-000

Unavailable

7

ROTOR, OIL FILTER

15441-292-030

Unavailable

8

CAP, OIL FILTER (NOT AVAILABLE)

15450-292-040

Unavailable

9

NUT, LOCK (16MM) (NOT AVAILABLE)

90231-292-000

Unavailable

10

WASHER, PUMP ROD SIDE (NOT AVAILABLE)

90404-292-000

Unavailable

11

WASHER, SPRING (16MM)

90431-292-000

$2.92

12

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

13

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

14

CIRCLIP (INNER) (45MM)

90604-292-000

Unavailable

15

O-RING (8X1.5) (NOT AVAILABLE)

91307-283-000

Unavailable

16

O-RING (41X2)

91309-286-000

$7.46

17

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

17

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

18

PIN A, DOWEL (8X12)

94301-08120

$2.19

19

CIRCLIP (OUTER) (32MM) | Use up to Engine SN 6024909

94510-32000

$1.77

19

CIRCLIP (OUTER) (34MM) | Use from Engine SN 6024910

94511-34000

Unavailable
