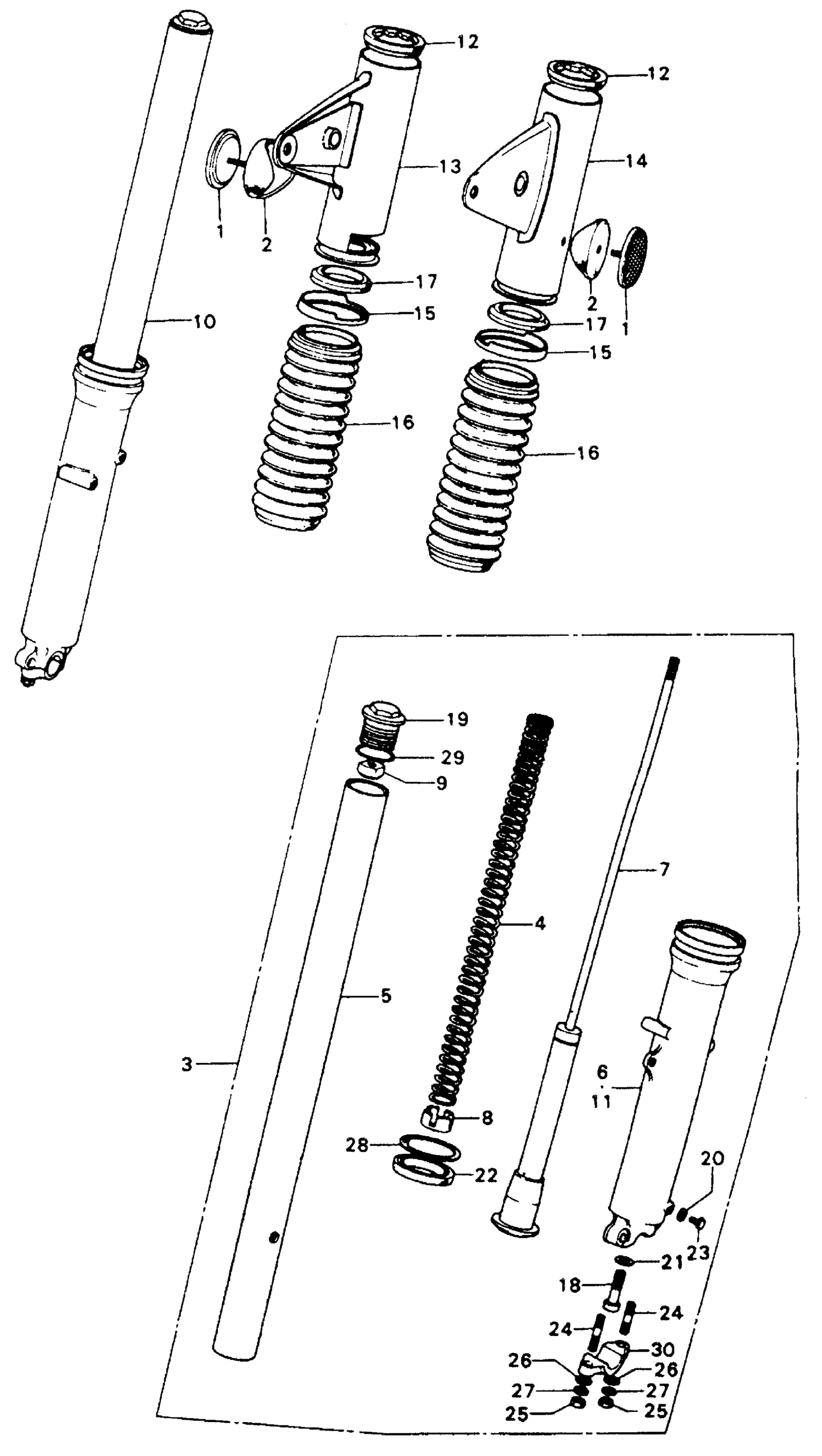

Honda CB450K6A MOTORCYCLE, JPN, VIN# CB450-6000001 TO CB450-6025991 FRONT SHOCK ABSORBER K5-K7 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

SHOCK ABSORBER ASSY., R. FR.

51400-323-315

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-323-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-323-010

Unavailable

6

CASE, R. FR. FORK (LOWER)

51421-323-010

Unavailable

7

DAMPER (NOT AVAILABLE)

51430-323-020

Unavailable

8

SEAT, RUBBER SPRING (NOT AVAILABLE)

51461-323-010

Unavailable

9

NUT, LOCK (8MM) (NOT AVAILABLE)

51462-323-000

Unavailable

10

SHOCK ABSORBER ASSY., L. FR.

51500-323-315

Unavailable

11

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-323-010

Unavailable

12

RUBBER, FORK COVER (UPPER)

51601-300-000

$15.11

13

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51602-457-670XW

Unavailable

14

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING)

51606-457-670XW

Unavailable

15

RIB, FR. FORK

51608-300-000

$21.02

16

BOOT, FR. FORK

51611-300-000

$48.26

17

RUBBER, FR. FORK COVER (LOWER)

51622-292-010

$5.84

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

BOLT, FR. FORK (NOT AVAILABLE)

90123-323-010

Unavailable

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

23

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

24

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

24

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

24

BOLT, STUD (8X50)

92900-08028-3B

$1.59

25

NUT, HEX. (8MM)

94030-08000

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

CIRCLIP (INNER) (48MM) (NOT AVAILABLE)

94521-48000

Unavailable

29

O-RING (23X2.8)

94608-50000

$1.49

30

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
