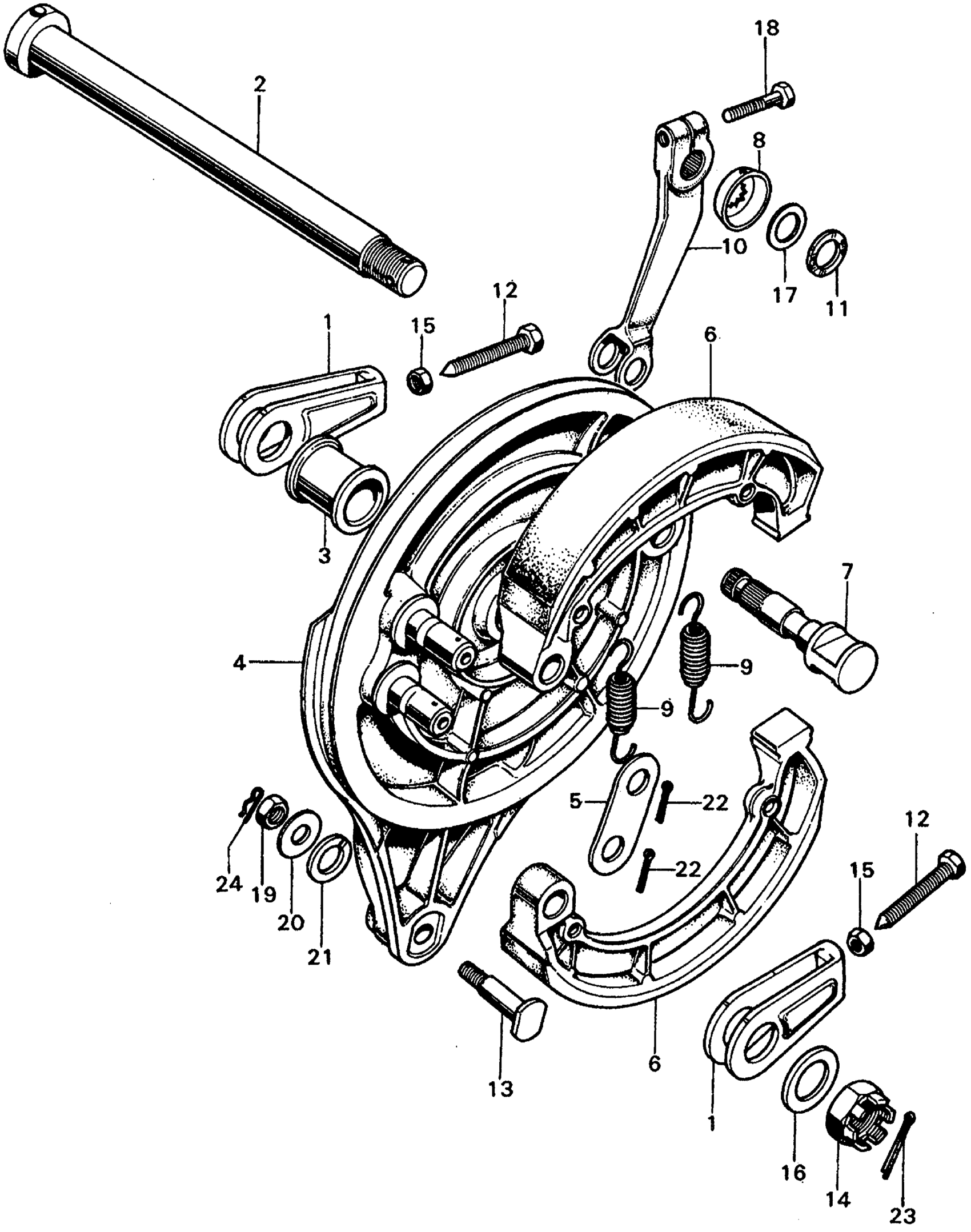

Honda CB450K5A MOTORCYCLE, JPN, VIN# CB450-5000001 TO CB450-5040742 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 431A0-458-670.

06430-458-405

Unavailable

1

ADJUSTER, CHAIN This part replaces 40532-283-010.

95014-18000

$20.48

1

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

1

ADJUSTER, CHAIN

95014-18000

$20.48

2

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-292-000.

42301-292-010

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-292-010

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-292-000

Unavailable

4

PANEL, RR. BRAKE | Use up to Frame SN 5040742 This part replaces 43100-319-000.

43100-374-000

Unavailable

4

PANEL, RR. BRAKE This part replaces 43100-347-000.

43100-374-000

Unavailable

4

PANEL, RR. BRAKE

43100-374-000

Unavailable

5

WASHER, ANCHOR PIN

43102-319-000

$6.21

5

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

6

SHOE KIT, BRAKE

06430-390-405

Unavailable

6

SHOE KIT, BRAKE This part replaces 43120-283-000.

06430-390-405

Unavailable

6

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

6

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-216-000

Unavailable

9

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use up to Frame SN 5040742

95014-74320

Unavailable

9

SPRING, RR. BRAKE SHOE | Use from Frame SN 5040743

43151-346-000

$5.90

10

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43411-283-000.

43411-374-000

Unavailable

10

ARM, RR. BRAKE (NOT AVAILABLE)

43411-374-000

Unavailable

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

13

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-283-000

Unavailable

14

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

14

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

15

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

16

WASHER (18.5X34) (NOT AVAILABLE)

90523-292-000

Unavailable

17

WASHER (14MM) | Use from Frame SN 5040743

90549-121-000

Unavailable

18

BOLT, HEX. (6X20) This part replaces 92000-06020-02.

92101-06020-0B

Unavailable

18

BOLT, HEX. (6X20) This part replaces 92018-06020-02.

92101-06020-0B

Unavailable

18

BOLT, HEX. (6X20)

92101-06020-0B

Unavailable

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49

22

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

22

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

22

PIN, COTTER (2.5MM)

94201-25300

$1.49

23

PIN, COTTER (4.0X30)

94201-40300

$1.49

24

PIN, LOCK (8MM)

94251-08000

$1.49
