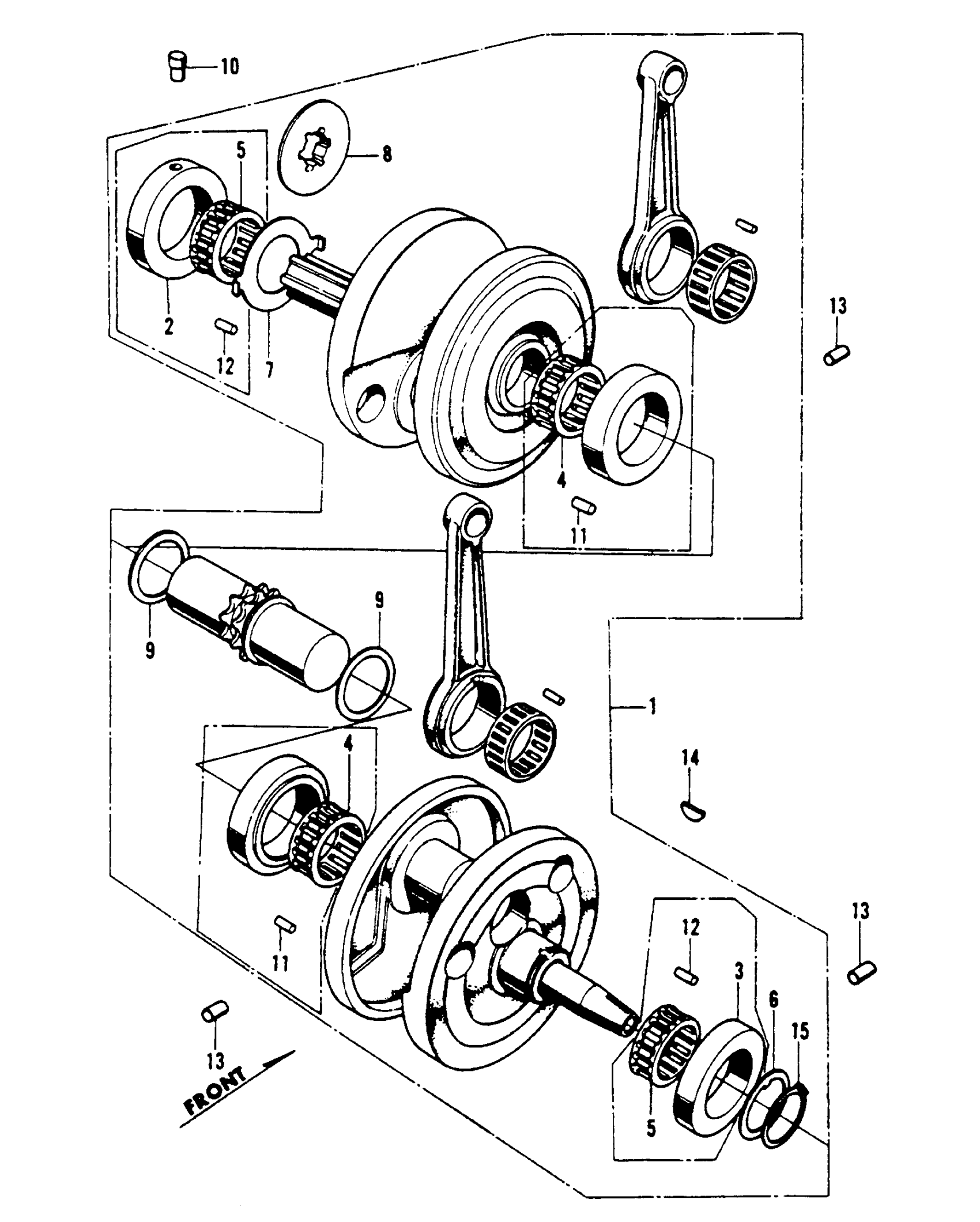

Honda CB450K5A MOTORCYCLE, JPN, VIN# CB450-5000001 TO CB450-5040742 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use up to Engine SN 5042905

13000-292-677

Unavailable

1

CRANKSHAFT (NOT AVAILABLE) | Use from Engine SN 5042906

13000-292-678

Unavailable

2

RACE, R. CRANK BEARING (OUTER) | Use up to Engine SN 5044843

13411-292-360

Unavailable

3

RACE, L. CRANK BEARING (OUTER) (NOT AVAILABLE) | Use up to Engine SN 5044843

13421-292-330

Unavailable

4

RETAINER, ROLLER MAIN BEARING

13471-283-008

Unavailable

5

RETAINER, ROLLER MAIN BEARING | Use up to Engine SN 6024908

13473-292-008

$38.31

5

RETAINER, ROLLER MAIN BEARING | Use from Engine SN 5044844

13473-292-008

$38.31

6

WASHER B (34MM) (NOT AVAILABLE)

90454-292-010

Unavailable

7

WASHER C, THRUST (34MM) (NOT AVAILABLE)

90455-292-020

Unavailable

8

WASHER B (25MM) (NOT AVAILABLE) | Use up to Engine SN 5042905

90456-292-030

Unavailable

8

WASHER B, THRUST (25MM) | Use from Engine SN 5042906

90456-292-040

Unavailable

9

WASHER, THRUST (32MM) (NOT AVAILABLE)

90483-292-000

Unavailable

10

PIN, R. CRANK BEARING KNOCK (NOT AVAILABLE)

90713-319-000

Unavailable

11

ROLLER (5X13) (NOT AVAILABLE) | Use up to Engine SN 5044843

91102-292-008

Unavailable

12

ROLLER (6X13) | Use up to Engine SN 5044843

91103-292-000

Unavailable

13

PIN B, DOWEL (6X10)

94302-06100

$2.23

14

KEY, WOODRUFF (25X14)

94401-25140

$1.75

15

CIRCLIP (OUTER) (34MM)

94510-34000

Unavailable
