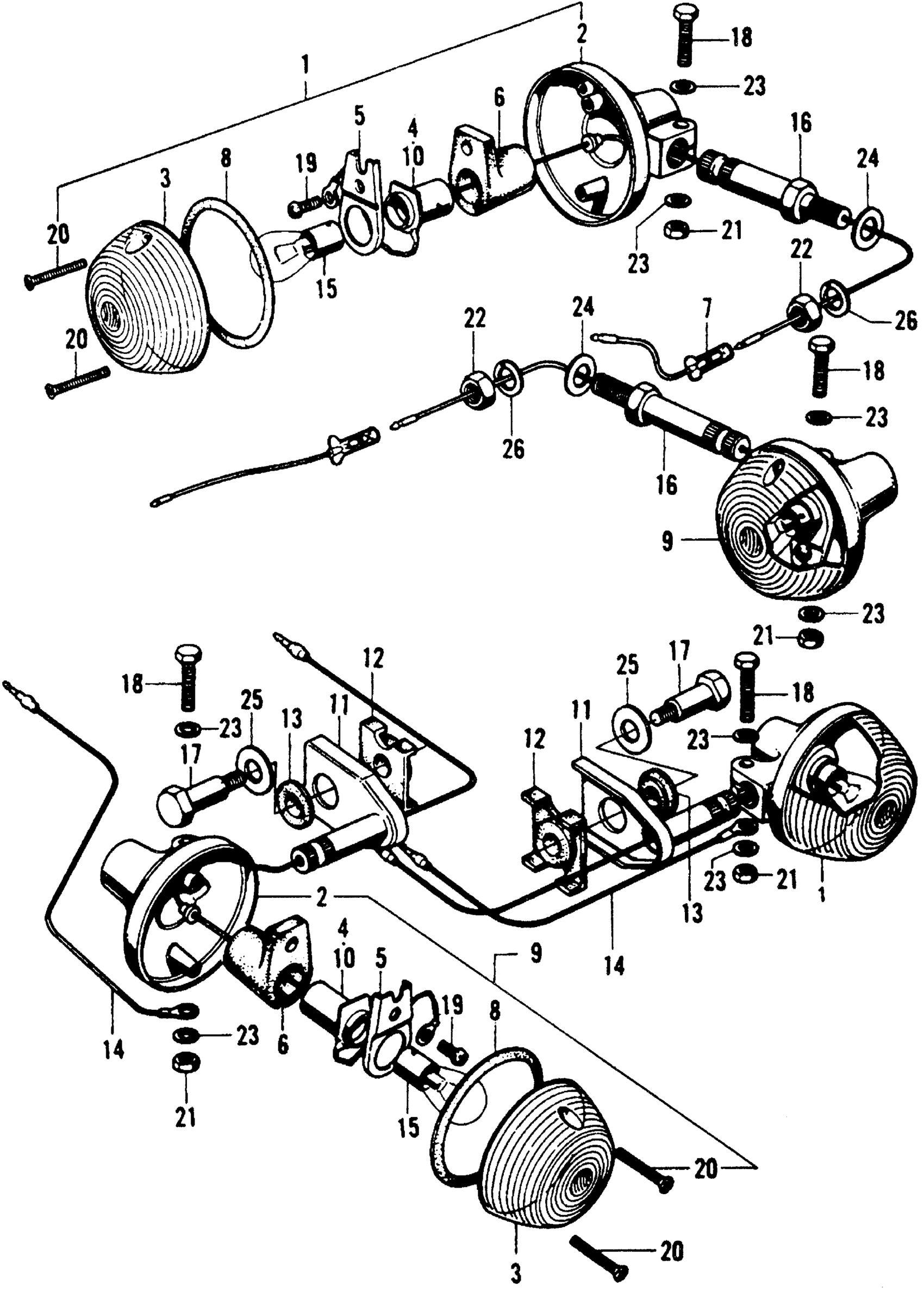

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 TURN SIGNAL K3-K5 Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-292-670.

33400-292-679

Unavailable

1

TURN SIGNAL ASSY., R. FR.

33400-292-679

Unavailable

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

3

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

4

SOCKET, R. FR. This part replaces 33402-292-003.

33410-361-003

Unavailable

5

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE) This part replaces 33407-284-000.

33407-284-003

Unavailable

5

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

6

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE) This part replaces 33408-284-000.

33408-341-701

Unavailable

6

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

7

SUB-WIRE, R. FR. TURN SIGNAL

33410-292-000

Unavailable

8

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

9

TURN SIGNAL ASSY., R. FR. This part replaces 33400-292-670.

33400-292-679

Unavailable

9

TURN SIGNAL ASSY., R. FR.

33400-292-679

Unavailable

9

TURN SIGNAL ASSY., R. FR. This part replaces 33450-292-670.

33400-292-679

Unavailable

10

SOCKET COMP., L. FR. This part replaces 33453-292-003.

33460-361-003

Unavailable

11

STAY, R. RR. TURN SIGNAL MOUNT *NH1* (BLACK)

33607-292-000B

Unavailable

12

RUBBER, RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

33608-292-020

Unavailable

13

RUBBER B, RR. TURN SIGNAL MOUNT

33608-286-000

Unavailable

13

RUBBER B, RR. TURN SIGNAL MOUNT This part replaces 33609-292-000.

33608-286-000

Unavailable

14

WIRE, RR. TURN SIGNAL GROUND (NOT AVAILABLE)

33620-286-670

Unavailable

14

WIRE, RR. TURN SIGNAL GROUND (NOT AVAILABLE) This part replaces 33620-292-000.

33620-286-670

Unavailable

15

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

16

BOLT, LIGHT CASE SETTING

90154-268-670

$30.10

17

BOLT, RR. TURN SIGNAL SET (NOT AVAILABLE)

90155-292-010

Unavailable

18

BOLT, HEX. (6X28) This part replaces 92000-06028-0B.

92201-06028-0B

$2.31

18

BOLT, HEX. (6X28) This part replaces 92000-06028-02.

92201-06028-0B

$2.31

19

SCREW, PAN (5X8)

93500-05008-0A

$1.49

20

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

20

SCREW, OVAL (3X25) This part replaces 93700-03025-02.

93700-03025-0B

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (10MM)

94001-10000-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (10MM)

94101-10200

$1.49

25

WASHER, PLAIN (12MM)

94101-12000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49
