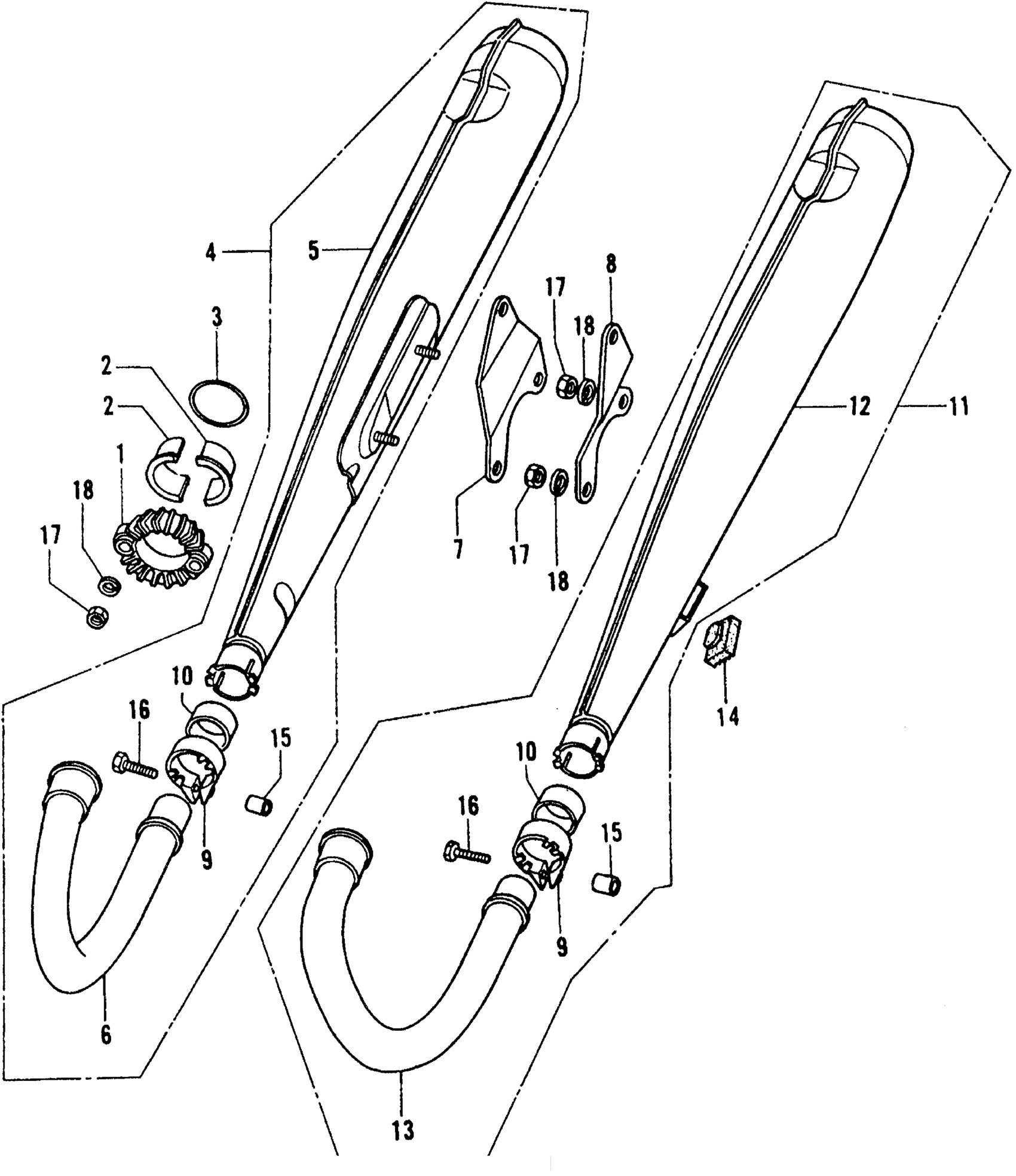

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-292-020

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-283-010

Unavailable

3

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$7.16

4

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-319-000.

18300-319-017

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-319-010.

18300-319-017

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE)

18300-319-017

Unavailable

7

BRACKET, R. MUFFLER (NOT AVAILABLE)

18353-319-000

$14.07

8

BRACKET, L. MUFFLER (NOT AVAILABLE)

18354-319-000

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-319-000.

18400-319-017

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-319-010.

18400-319-017

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE)

18400-319-017

Unavailable

14

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

14

RUBBER A, STAND STOPPER

95011-61000

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
