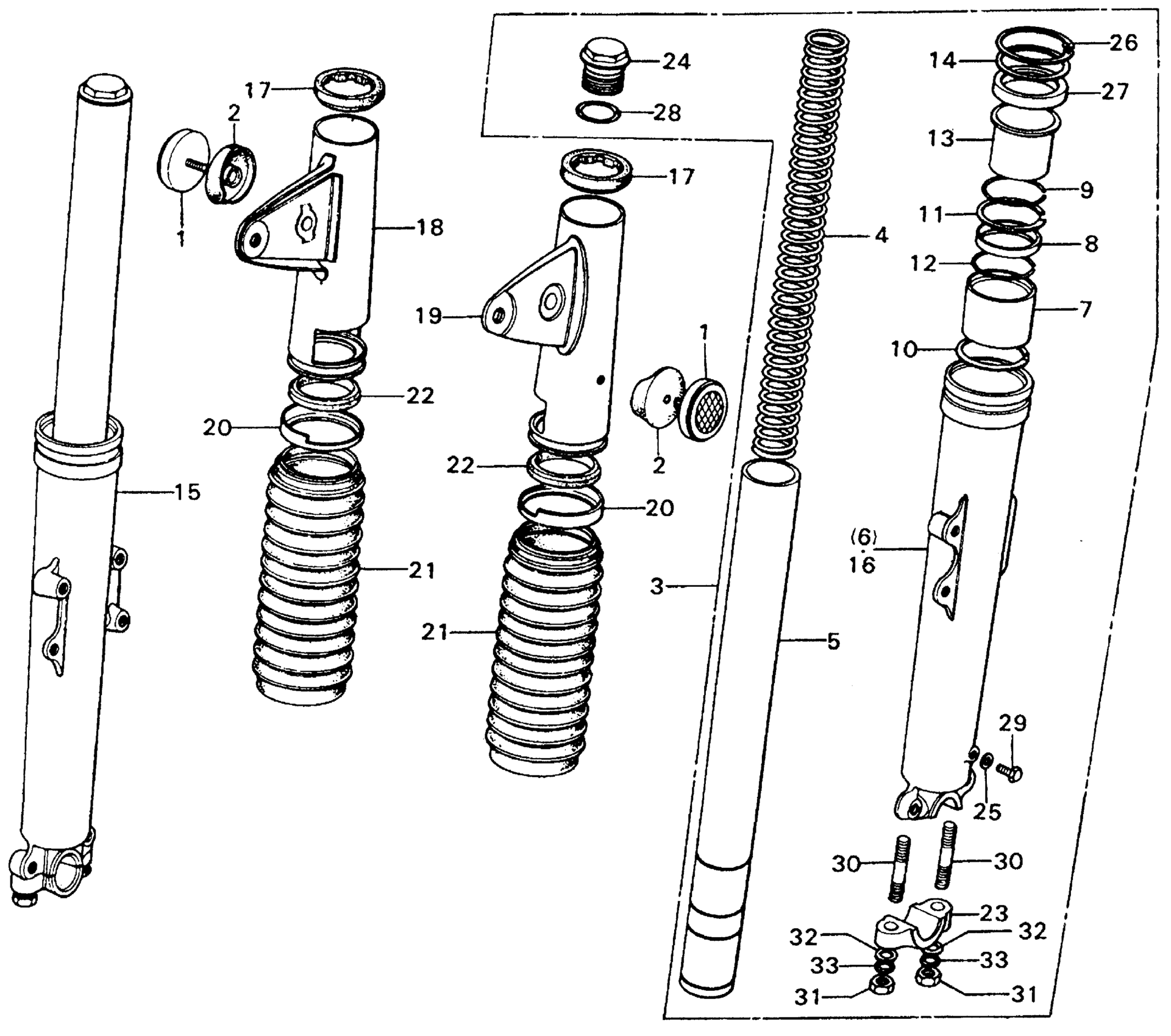

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 FRONT SHOCK ABSORBER K3-K4 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-319-000

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-319-000

Unavailable

5

PIPE, FR. FORK

51410-319-000

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-319-000

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-319-010

Unavailable

7

PISTON, FR. FORK

51442-319-000

Unavailable

8

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-273-000

Unavailable

9

RING, FR. FORK STOPPER (NOT AVAILABLE)

51444-273-000

Unavailable

10

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-319-000

Unavailable

11

RING, SHOCK VALVE STOPPER (NOT AVAILABLE)

51446-273-000

Unavailable

12

RING, PISTON STOPPER (NOT AVAILABLE)

51447-273-000

Unavailable

13

GUIDE, FR. FORK PIPE

51451-319-000

Unavailable

14

RING, BACK-UP (NOT AVAILABLE)

51452-319-000

Unavailable

14

RING, BACK-UP (NOT AVAILABLE)

51452-319-010

Unavailable

15

SHOCK ABSORBER ASSY., L. FR. (LOWER)

51500-319-000

Unavailable

16

CASE, L. FR. FORK (LOWER)

51520-319-000

Unavailable

16

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-319-010

Unavailable

17

RUBBER, FORK COVER (UPPER)

51601-300-000

$15.11

18

COVER, R. FR. FORK (UPPER)

51602-319-000Z

Unavailable

19

COVER, L. FR. FORK (UPPER)

51606-319-000Z

Unavailable

20

RIB, FR. FORK

51608-300-000

$21.02

21

BOOT, FR. FORK

51611-300-000

$48.26

22

RUBBER, FR. FORK COVER (LOWER)

51622-292-010

$5.84

23

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

23

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

24

BOLT, FR. FORK

90123-300-000

$47.61

25

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

26

CIRCLIP (OUTER) (47MM) (NOT AVAILABLE)

90601-319-000

Unavailable

26

CIRCLIP (INNER) (50MM) (NOT AVAILABLE)

94521-50000

Unavailable

27

OIL SEAL (35X46X11) | Use from Frame SN 4017272

91255-292-003

$14.61

27

OIL SEAL (35X46X11) | Use from Frame SN 4017272 This part replaces 91255-300-013.

91255-292-003

$14.61

27

OIL SEAL (35X48X11) This part replaces 91255-300-023.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-300-025.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

27

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

28

O-RING (23X2.8) This part replaces 91256-300-003.

94608-50000

$1.49

28

O-RING (23X2.8)

94608-50000

$1.49

29

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

30

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

30

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

30

BOLT, STUD (8X50)

92900-08028-3B

$1.59

31

NUT, HEX. (8MM)

94030-08000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49
