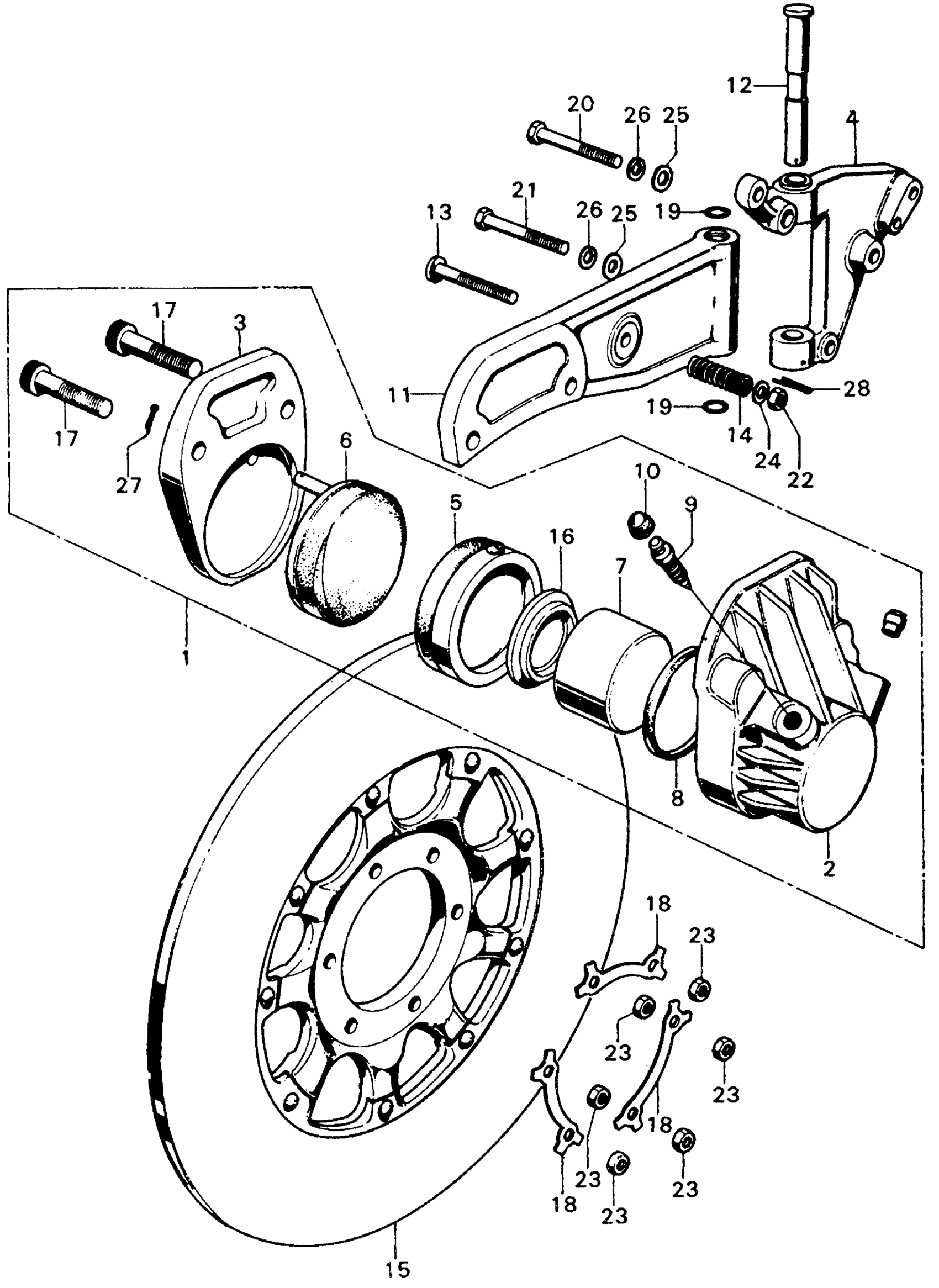

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 FRONT BRAKE CALIPER + FRONTBRAKE DISK K3-K4 Diagram

#

Description
Price

NI

PAD A This part replaces 45105-341-000.

45105-341-305

Unavailable

NI

PAD A

45105-341-305

Unavailable

NI

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

NI

PAD B, FR. BRAKE

45106-341-305

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE) | Use from Frame SN 4018702 This part replaces 45100-300-023B.

45100-341-003

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE) This part replaces 45100-300-023.

45100-341-003

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE)

45100-341-003

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE) This part replaces 45101-300-033.

45101-300-053

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE) This part replaces 45101-300-043.

45101-300-053

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE) | Use from Frame SN 4018702

45101-300-053

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE) This part replaces 45102-300-033.

45102-300-043

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-300-043

Unavailable

4

JOINT, CALIPER HOLDER (NOT AVAILABLE)

45104-300-040

Unavailable

5

PAD A This part replaces 45105-300-040.

45105-341-305

Unavailable

5

PAD A This part replaces 45105-341-000.

45105-341-305

Unavailable

5

PAD A

45105-341-305

Unavailable

6

PAD B, FR. BRAKE This part replaces 45106-300-040.

45106-341-305

Unavailable

6

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

6

PAD B, FR. BRAKE

45106-341-305

Unavailable

7

PISTON (TOKIKO)

45107-300-003

Unavailable

8

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

9

BLEEDER

45109-300-003

Unavailable

10

CAP, BLEEDER SCREW

45110-300-003

$3.26

11

HOLDER, CALIPER (NOT AVAILABLE)

45115-300-030

Unavailable

12

PIN, CALIPER HOLDER (NOT AVAILABLE)

45116-300-030

Unavailable

13

BOLT, CALIPER ADJUSTING This part replaces 45117-300-020.

45117-341-700

$5.85

13

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

14

SPRING, CALIPER ADJ.

45119-300-020

$5.19

15

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-300-040.

45120-392-000

Unavailable

15

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-341-000.

45120-392-000

Unavailable

16

SEAT, PAD

45151-300-000

Unavailable

17

BOLT, CALIPER MOUNT (TOKIKO)

90165-300-023

$11.02

18

WASHER A8, TONGUED (NOT AVAILABLE) This part replaces 90522-300-010.

94108-18000

Unavailable

18

WASHER A8, TONGUED (NOT AVAILABLE)

94108-18000

Unavailable

19

O-RING (10X1.7)

91259-300-000

Unavailable

20

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

20

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

21

BOLT, HEX. (8X50) This part replaces 92000-08050-0A.

92101-08050-0A

$1.97

21

BOLT, HEX. (8X50)

92101-08050-0A

$1.97

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (8MM)

94001-08020-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

PIN, COTTER (1.6X12)

94201-16120

$1.49

28

PIN, COTTER (2.5MM)

94201-25300

$1.49
