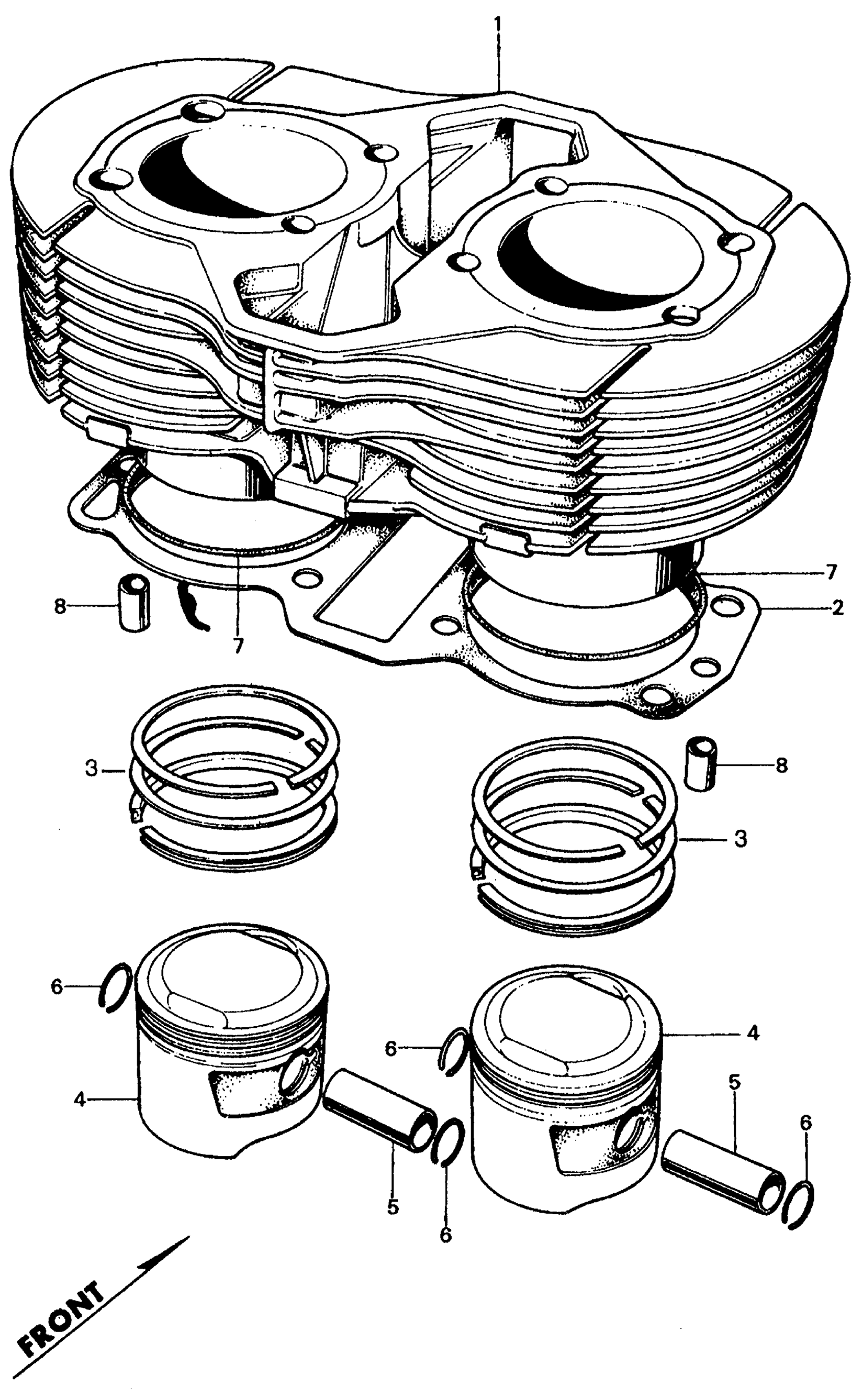

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 CYLINDER PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-292-020

Unavailable

2

GASKET, CYLINDER This part replaces 12191-283-010.

12191-283-306

Unavailable

3

RING SET, PISTON (STD) This part replaces 13011-292-000.

13011-375-005

Unavailable

3

RING SET, PISTON (STD)

13011-375-005

Unavailable

3

RING SET, PISTON (OS 0.25)

13021-292-000

Unavailable

3

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) This part replaces 13031-292-000.

13031-375-005

Unavailable

3

RING SET, PISTON (0.75) (NOT AVAILABLE) This part replaces 13041-292-000.

13041-375-005

Unavailable

3

RING SET, PISTON (1.00) (NOT AVAILABLE) This part replaces 13051-292-000.

13051-375-005

Unavailable

4

PISTON (STD) (NOT AVAILABLE)

13101-292-030

Unavailable

4

PISTON (OS 0.25) (NOT AVAILABLE)

13102-292-030

Unavailable

4

PISTON (OS 0.50) (NOT AVAILABLE)

13103-292-030

Unavailable

4

PISTON (0.75) (NOT AVAILABLE)

13104-292-030

Unavailable

4

PISTON (1.00) (NOT AVAILABLE)

13105-292-030

Unavailable

5

PIN, PISTON

13111-283-000

$14.98

6

CLIP, PISTON PIN

13115-283-000

$1.56

6

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

7

O-RING, CYLINDER (75.8X2) This part replaces 91302-283-000.

91302-283-003

$6.34

7

O-RING, CYLINDER (75.8X2)

91302-283-003

$6.34

8

PIN A, DOWEL (10X14)

94301-10140

$2.28
