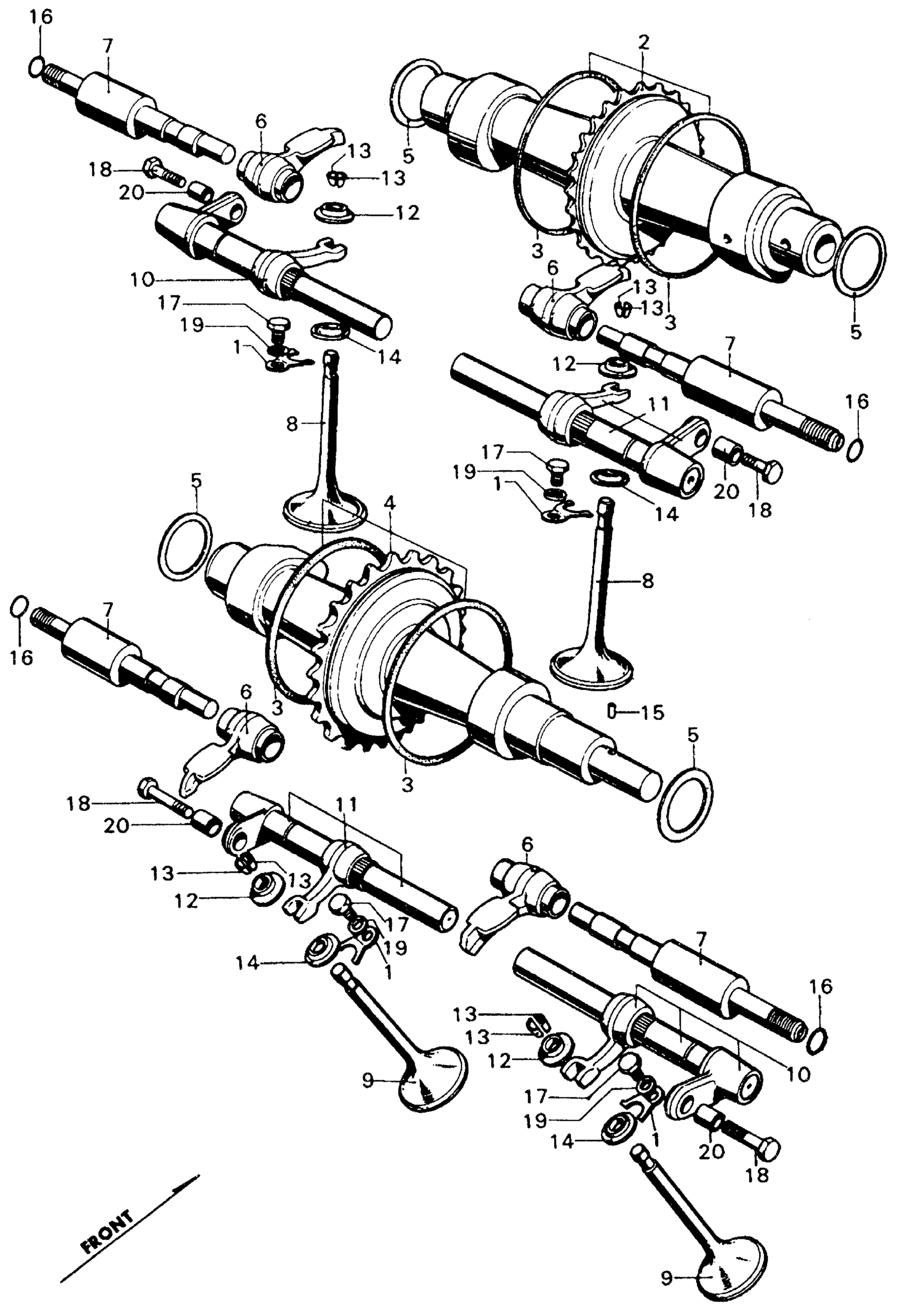

Honda CB450K3A MOTORCYCLE, JPN, VIN# CB450-4000001 CAMSHAFT VALVE Diagram

#

Description
Price

1

STOPPER, VALVE GUIDE (NOT AVAILABLE) This part replaces 12293-283-010.

12293-319-000

Unavailable

1

STOPPER, VALVE GUIDE (NOT AVAILABLE)

12293-319-000

Unavailable

2

CAMSHAFT, IN. (NOT AVAILABLE)

14110-292-670

Unavailable

3

RING, CAM CHAIN DAMPER

14116-292-300

$9.41

4

CAMSHAFT, EX. (NOT AVAILABLE) This part replaces 14120-292-003.

14120-292-013

Unavailable

5

SPACER, CAMSHAFT (0.1MM) (NOT AVAILABLE)

14294-283-000

Unavailable

5

SPACER, CAMSHAFT (0.2MM)

14295-283-000

Unavailable

6

FOLLOWER, CAM

14431-292-010

Unavailable

7

SHAFT, CAM FOLLOWER

14451-292-000

Unavailable

8

VALVE, IN. (NOT AVAILABLE)

14711-292-000

$91.18

9

VALVE, EX.

14721-292-010

Unavailable

10

SPRING ASSY. A, TORSION BAR VALVE (NOT AVAILABLE)

14750-292-000

Unavailable

11

SPRING ASSY. B, TORSION BAR VALVE

14760-292-000

Unavailable

12

RETAINER, VALVE SPRING

14771-283-305

Unavailable

13

COTTER, VALVE

14781-292-000

Unavailable

14

CAP, VALVE GUIDE SEAL This part replaces 14791-292-000.

14791-319-005

$12.44

14

CAP, VALVE GUIDE SEAL

14791-319-005

$12.44

15

PIN, KNOCK (3X6.8) (NOT AVAILABLE)

90701-283-000

Unavailable

16

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

16

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

18

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN A, DOWEL (8X12)

94301-08120

$2.19
