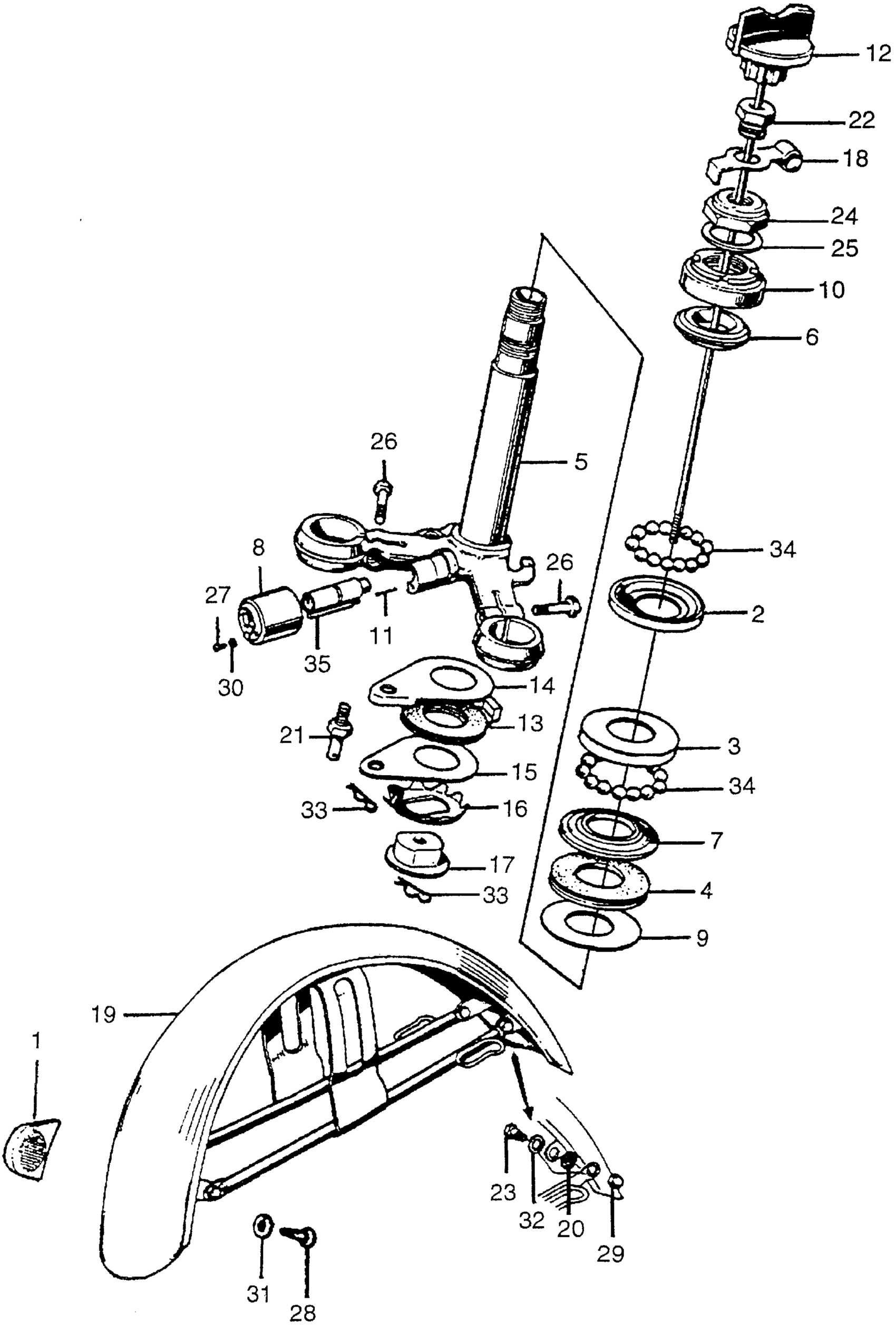

Honda CB450K2A MOTORCYCLE, JPN, VIN# CB450-3008956 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

2

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

4

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

4

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

5

STEM, STEERING

53200-292-000Z

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

6

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

6

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

8

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-230-000

Unavailable

9

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

10

THREAD, STEERING HEAD TOP

53220-283-010

Unavailable

11

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

12

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-292-000

Unavailable

13

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE)

53750-292-000

Unavailable

14

PLATE A, STEERING DAMPER (NOT AVAILABLE)

53761-292-000

Unavailable

15

PLATE B, STEERING DAMPER (NOT AVAILABLE)

53762-268-010

Unavailable

16

SPRING, STEERING DAMPER (NOT AVAILABLE)

53763-216-000

Unavailable

17

NUT, STEERING DAMPER SPRING (NOT AVAILABLE)

53764-283-000

Unavailable

18

SPRING, STEERING DAMPER LOCK (NOT AVAILABLE)

53765-283-000

Unavailable

19

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use up to Frame SN 3010745

61100-292-671XW

Unavailable

19

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 3010746

61100-292-670XW

Unavailable

20

RUBBER, FENDER CUSHION (NOT AVAILABLE)

61105-292-670

Unavailable

21

BOLT, FRICTION DISK ANCHOR (NOT AVAILABLE)

90118-268-000

Unavailable

22

BOLT, DAMPER LOCK SPRING MOUNT (NOT AVAILABLE)

90131-268-010

Unavailable

24

NUT, STEERING STEM (NOT AVAILABLE)

90304-283-010

Unavailable

25

WASHER, STEERING STEM

90503-283-000

$4.37

26

BOLT, HEX. (10X36) This part replaces 92000-10036-0A.

92101-10036-0A

Unavailable

27

SCREW, PAN (3X8)

93500-03008-0A

$1.49

28

SCREW, TAPPING (4X10) | Use up to Frame SN 3010745

93901-34210

$1.49

30

WASHER, PLAIN (3MM)

94101-03000

$1.49

31

WASHER, PLAIN (4MM) | Use up to Frame SN 3010745

94101-04000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

PIN, LOCK (6MM)

94251-06000

$1.49

34

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

35

LOCK, HANDLEBAR

35010-230-010

Unavailable
