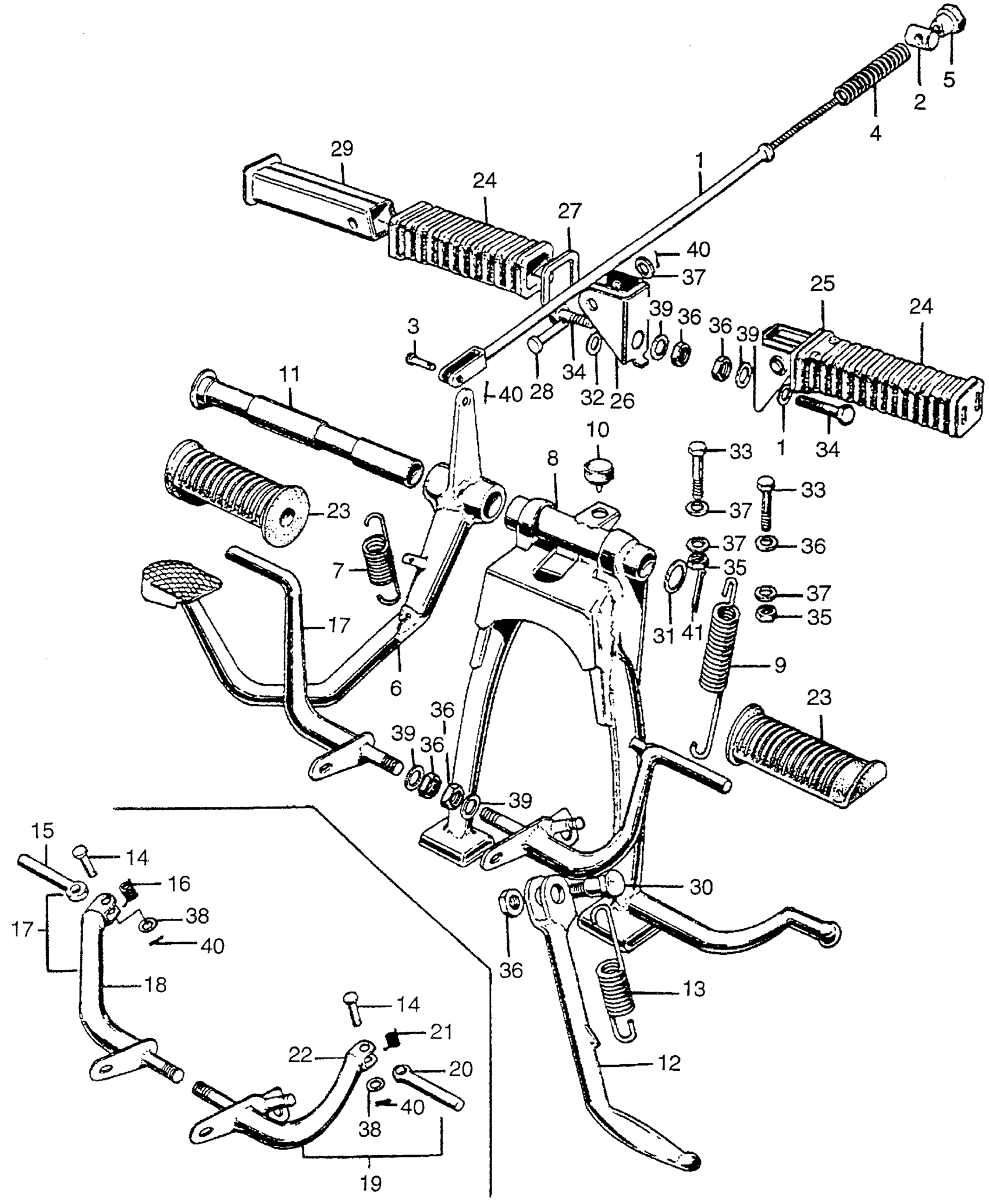

Honda CB450K2A MOTORCYCLE, JPN, VIN# CB450-3008956 PEDALS + STAND + STEP Diagram

#

Description
Price

1

ROD, RR. BRAKE | Use from Frame SN 3001322

43451-ME5-406

Unavailable

1

ROD, RR. BRAKE | Use from Frame SN 3001322 This part replaces 43451-292-020.

43451-ME5-406

Unavailable

2

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

2

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

2

JOINT, BRAKE ARM

95015-32001

$1.49

3

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

5

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

7

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-283-050

Unavailable

8

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-292-000B

Unavailable

9

SPRING J, MAIN STAND | Use from Frame SN 3003364 This part replaces 50522-292-010.

95014-71902

Unavailable

9

SPRING J, MAIN STAND | Use from Frame SN 3003364 This part replaces 95014-71901.

95014-71902

Unavailable

9

SPRING J, MAIN STAND | Use from Frame SN 3003364

95014-71902

Unavailable

9

SPRING J, MAIN STAND

95014-71902

Unavailable

10

RUBBER B, STAND STOPPER This part replaces 50524-011-000.

95011-62000

$1.49

10

RUBBER B, STAND STOPPER

95011-62000

$1.49

11

PIPE, MAIN STAND PIVOT (NOT AVAILABLE) This part replaces 50526-292-000.

50526-457-710

Unavailable

11

PIPE, MAIN STAND PIVOT (NOT AVAILABLE)

50526-457-710

Unavailable

12

BAR, SIDE STAND

50530-283-670

Unavailable

13

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.92

13

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

13

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

13

SPRING D, SIDE STAND

95014-72402

$2.92

14

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

14

PIN, STEP BAR JOINT

50603-033-010

$3.30

15

ARM, R. STEP *NH1* (BLACK)

50616-283-020B

Unavailable

16

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

17

STEP ASSY., R. *NH1* (BLACK)

50630-292-671B

Unavailable

18

BAR, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50635-292-671B

Unavailable

19

STEP ASSY., L. *NH1* (BLACK) (NOT AVAILABLE)

50640-292-671B

Unavailable

20

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

Unavailable

21

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

22

BAR, L. STEP *NH1* (BLACK)

50645-292-671B

Unavailable

23

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$10.76

23

RUBBER, STEP

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 50661-283-010.

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 95011-23000.

50661-110-000

$10.76

30

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

31

WASHER (19MM) (NOT AVAILABLE)

90512-283-000

Unavailable

33

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

33

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

33

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

34

BOLT, HEX. (10X36) This part replaces 92000-10036-0A.

92101-10036-0A

Unavailable

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (10MM)

94001-10000-0S

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, PLAIN (8MM)

94101-08000

$1.49

39

WASHER, SPRING (8MM)

94111-10000

$1.49

40

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

40

PIN, COTTER (1.6X25)

94201-16250

$1.49

41

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

41

PIN, COTTER (2.5MM)

94201-25300

$1.49
