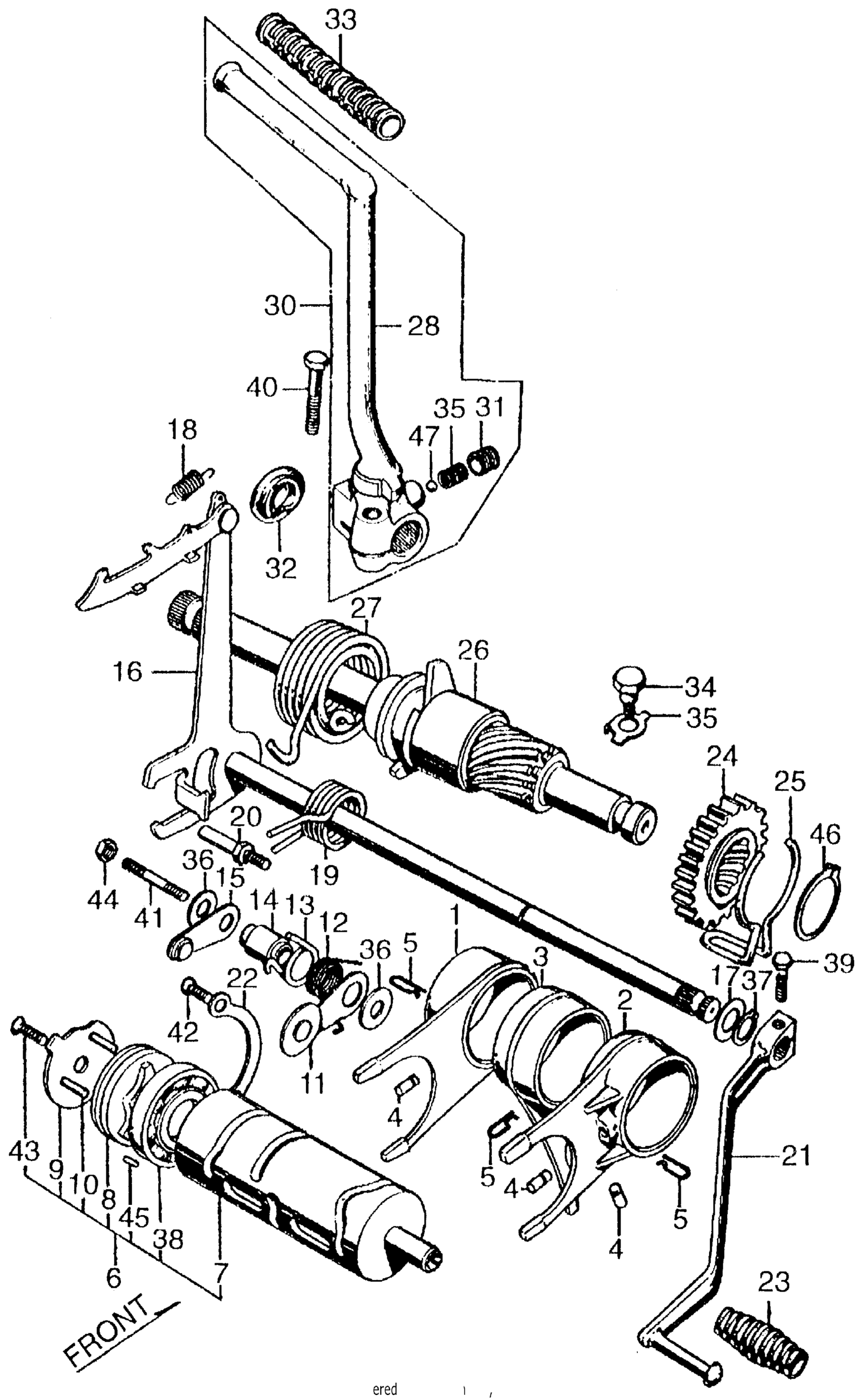

Honda CB450K2A MOTORCYCLE, JPN, VIN# CB450-3008956 GEARSHIFT DRUM + KICK STARTER + GEARSHIFT SPINDLE Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-292-020

Unavailable

2

FORK, L. GEARSHIFT

24221-292-020

Unavailable

3

FORK, CENTER GEARSHIFT

24231-292-030

Unavailable

4

PIN, GEARSHIFT FORK GUIDE

24261-292-000

Unavailable

5

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

6

DRUM, GEARSHIFT

24300-292-050

Unavailable

7

DRUM, GEARSHIFT

24301-292-330

Unavailable

8

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

24304-292-350

Unavailable

9

PLATE, DRUM STOPPER CAM

24305-292-350

Unavailable

10

PIN, GEARSHIFT DRUM (NOT AVAILABLE)

24306-235-300

Unavailable

11

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-292-020

Unavailable

12

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-292-010

Unavailable

13

SPRING, SHIFT DRUM NEUTRAL STOPPER (NOT AVAILABLE)

24436-292-000

Unavailable

14

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-292-010

Unavailable

15

STOPPER, SHIFT DRUM NEUTRAL (NOT AVAILABLE)

24440-292-010

Unavailable

16

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-292-030

Unavailable

17

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

18

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-292-000

Unavailable

19

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-292-010

Unavailable

20

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

21

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-292-000.

24701-346-010

Unavailable

22

PLATE, BEARING SET (NOT AVAILABLE)

24710-235-000

Unavailable

23

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

23

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

23

RUBBER, SHIFT PEDAL

95011-40000

$1.49

24

PINION, STARTER (NOT AVAILABLE)

28212-292-040

Unavailable

25

SPRING, FRICTION (NOT AVAILABLE)

28239-292-000

Unavailable

26

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-292-010

Unavailable

27

SPRING, KICK STARTER (NOT AVAILABLE)

28261-292-000

Unavailable

28

ARM, KICK STARTER (NOT AVAILABLE)

28262-292-000

$158.43

30

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-292-000

Unavailable

31

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

32

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

33

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

33

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

33

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

33

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

33

RUBBER B, KICK STARTER

95011-52000

$4.12

34

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

34

BOLT (8MM) (NOT AVAILABLE)

90081-283-000

Unavailable

35

WASHER (8MM) (NOT AVAILABLE)

90432-283-010

Unavailable

36

WASHER, SHIFT DRUM STOPPER

90453-292-010

$5.03

37

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

38

BEARING, RADIAL BALL (16004) (NOT AVAILABLE)

91001-235-300

Unavailable

39

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

39

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

40

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

40

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

40

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

41

BOLT 2, STUD (6X32) This part replaces 92700-06045.

92900-06032-0E

$2.45

41

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

41

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

42

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

42

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

43

SCREW, FLAT (6X40) This part replaces 93600-06040.

93600-06040-0A

$1.49

43

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

44

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM)

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

45

PIN, DOWEL (4X8) (NOT AVAILABLE)

94302-04080

Unavailable

46

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49

47

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
