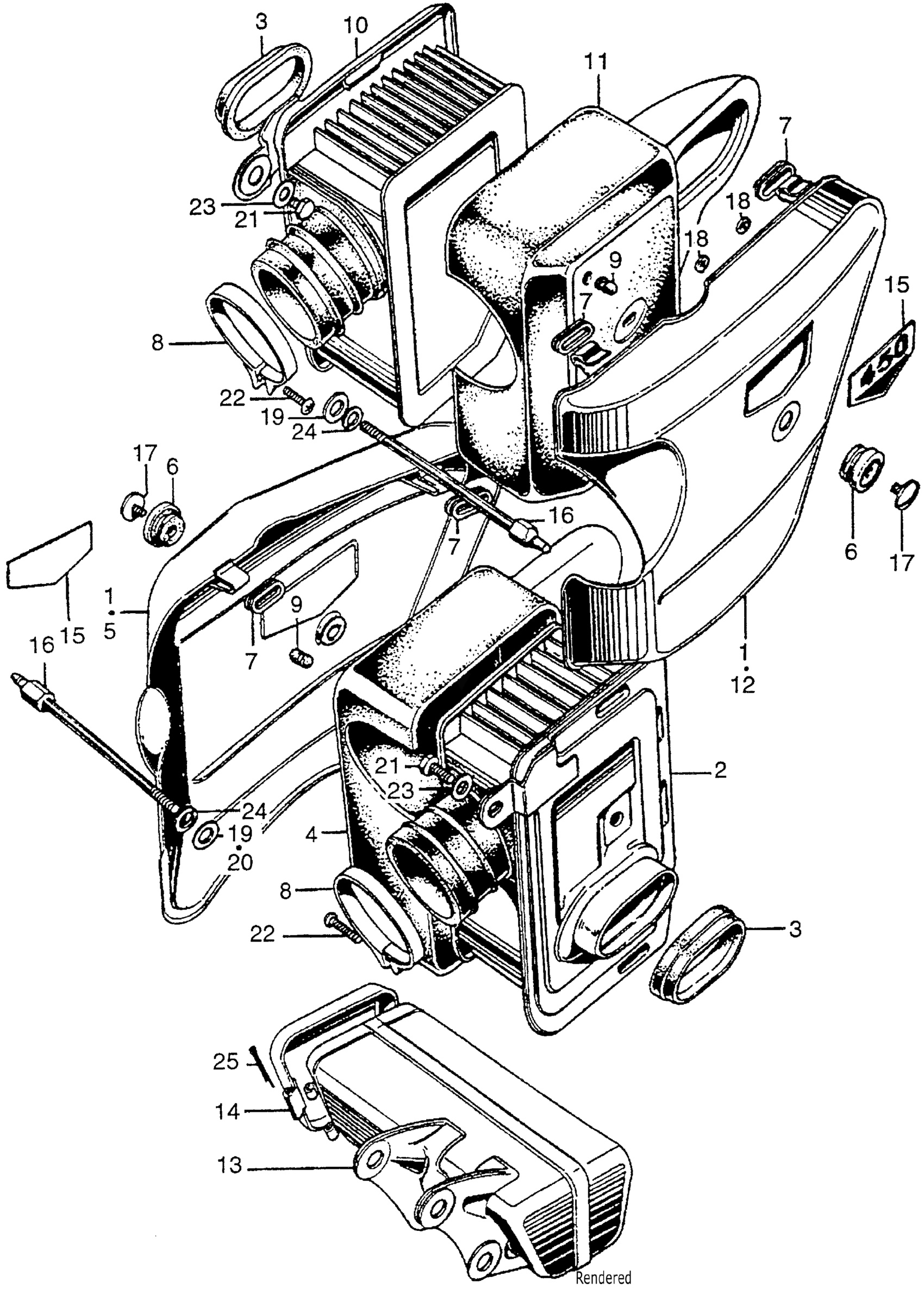

Honda CB450K2A MOTORCYCLE, JPN, VIN# CB450-3008956 AIR CLEANER + TOOL BOX Diagram

#

Description
Price

2

ELEMENT, R. AIR CLEANER (NOT AVAILABLE)

17211-292-014

Unavailable

3

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-292-000

Unavailable

4

COVER, R. AIR CLEANER (NOT AVAILABLE)

17214-283-000

Unavailable

5

CASE, R. AIR CLEANER (NOT AVAILABLE)

17231-292-040Z

Unavailable

6

GROMMET B, AIR CLEANER HOUSING

17245-292-010

Unavailable

7

GROMMET A, AIR CLEANER HOUSING

17247-292-010

$3.89

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-283-010.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-286-000.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-317-670.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

9

RUBBER, AIR CLEANER SHOCK PROOF

17257-268-000

Unavailable

10

ELEMENT, L. AIR CLEANER (NOT AVAILABLE)

17311-292-014

Unavailable

11

COVER, L. AIR CLEANER (NOT AVAILABLE)

17313-283-000

Unavailable

12

CASE, L. AIR CLEANER (NOT AVAILABLE)

17331-292-040Z

Unavailable

13

BOX, TOOL (NOT AVAILABLE)

83500-283-010Z

Unavailable

15

EMBLEM, AIR CLEANER HOUSING (NOT AVAILABLE)

87130-294-000

Unavailable

16

BOLT, R. AIR CLEANER SETTING (NOT AVAILABLE)

90112-292-000

Unavailable

16

BOLT, R. AIR CLEANER SETTING (NOT AVAILABLE) | Use from Frame SN 3000433 This part replaces 90110-292-010.

90112-292-000

Unavailable

17

BOLT, AIR CLEANER SETTING (NOT AVAILABLE) | Use from Frame SN 3000433

90113-292-000

Unavailable

18

NUT, SPEED (3MM) | Use from Frame SN 3008956 This part replaces 90313-512-000.

90313-567-000

$3.97

18

NUT, SPEED (3MM) | Use from Frame SN 3008956

90313-567-000

$3.97

19

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE) This part replaces 90465-283-000.

90417-001-000

Unavailable

21

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

21

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

22

SCREW, PAN (5X16)

93500-05016-0A

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

25

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

25

PIN, COTTER (2.5MM)

94201-25300

$1.49
