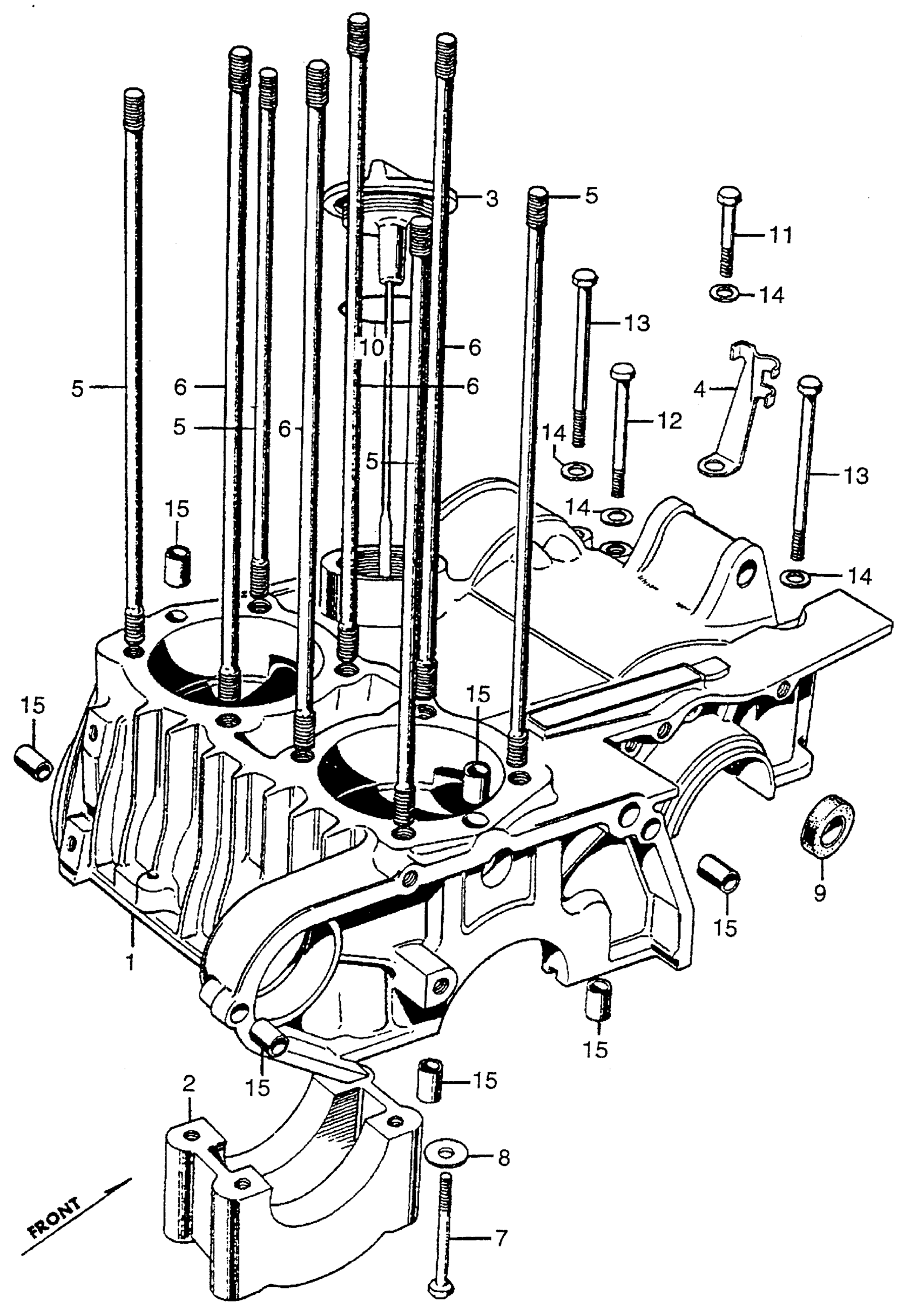

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 UPPER CRANKCASE Diagram

CRANKCASE (UPPER) | Use up to Engine SN 3020234

11100-292-080

Unavailable

CAP, BEARING CENTER (NOT AVAILABLE)

13401-292-020

Unavailable

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-292-000.

15650-292-010

Unavailable

DIPSTICK, OIL (NOT AVAILABLE)

15650-292-010

Unavailable

CLAMP, ALTERNATOR CABLE (NOT AVAILABLE)

32921-283-010

Unavailable

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90031-292-000

Unavailable

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90032-292-000

Unavailable

BOLT, HEX. (8X71) (NOT AVAILABLE)

90083-292-000

Unavailable

WASHER, HEAD (8MM)

90402-822-000

$1.49

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91303-283-000.

91305-KT7-003

$2.83

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

BOLT, HEX. (6X65) This part replaces 92000-06063.

92101-06065-0A

Unavailable

BOLT, HEX. (6X65) This part replaces 92000-06063-0A.

92101-06065-0A

Unavailable

BOLT, HEX. (6X80) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06080.

92101-06080-0A

Unavailable

BOLT, HEX. (6X80) (SOURCE: VINTAGE PARTS INC.)

92101-06080-0A

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28
