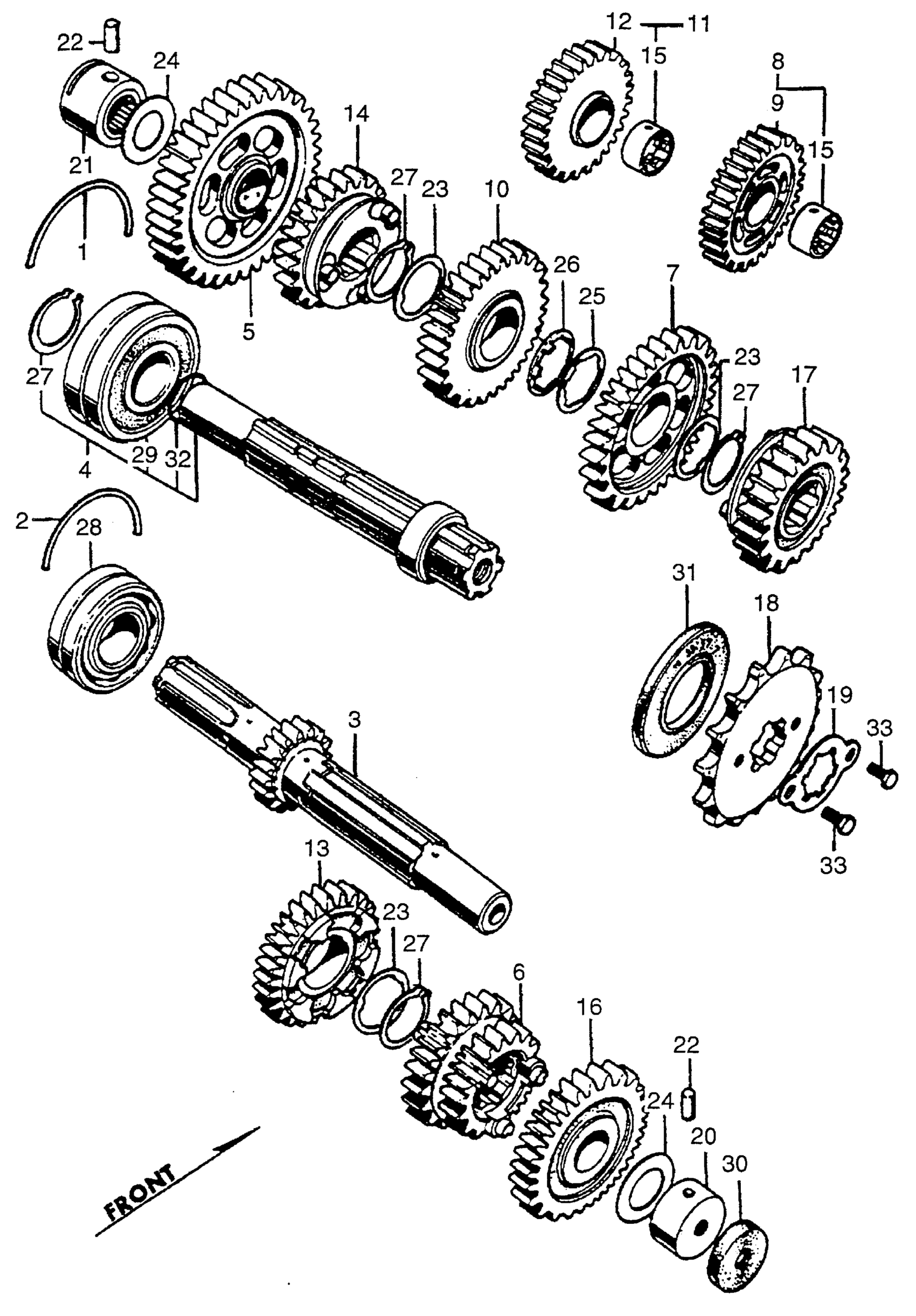

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 TRANSMISSION Diagram

#

Description
Price

1

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

2

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

2

SET-RING (520)

95015-25200

Unavailable

3

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-292-040

Unavailable

4

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 3006032 This part replaces 23220-292-040.

23220-292-050

Unavailable

4

COUNTERSHAFT, TRANSMISSION

23220-292-050

Unavailable

4

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 3006032 This part replaces 23221-292-350.

23220-292-050

Unavailable

5

GEAR, COUNTERSHAFT LOW (41T)

23421-292-010

Unavailable

6

GEAR, SECOND THIRD MAINSHAFT (22T-26T)

23431-292-060

Unavailable

7

GEAR, SECOND COUNTERSHAFT (36T) (NOT AVAILABLE) | Use up to Engine SN 3006032

23441-292-030

Unavailable

7

GEAR, SECOND COUNTERSHAFT | Use from Engine SN 3006033 This part replaces 23441-292-040.

23441-292-050

$296.90

7

GEAR, SECOND COUNTERSHAFT | Use from Engine SN 3006033

23441-292-050

$296.90

8

GEAR SET, COUNTERSHAFT (NOT AVAILABLE) | Use from Engine SN 3006033

23441-292-345

Unavailable

9

GEAR, SECOND COUNTERSHAFT | Use from Engine SN 3006033

23441-292-050

$296.90

10

GEAR, THIRD COUNTERSHAFT (33T) (NOT AVAILABLE) | Use up to Engine SN 3006032

23461-292-030

Unavailable

10

GEAR, THIRD COUNTERSHAFT (33T) (NOT AVAILABLE) | Use from Engine SN 3006033

23461-292-050

$282.90

10

GEAR, THIRD COUNTERSHAFT (33T) (NOT AVAILABLE) | Use from Engine SN 3006033 This part replaces 23461-292-040.

23461-292-050

$282.90

11

GEAR, THIRD COUNTERSHAFT (NOT AVAILABLE) | Use from Engine SN 3006033

23461-292-345

Unavailable

12

GEAR, THIRD COUNTERSHAFT (33T) (NOT AVAILABLE) | Use from Engine SN 3006033

23461-292-050

$282.90

13

GEAR, MAINSHAFT FOURTH (29T)

23471-292-030

Unavailable

14

GEAR, COUNTERSHAFT FOURTH (29T)

23481-292-030

Unavailable

15

BUSH, SPLINE (28MM) | Use from Engine SN 3006033

23485-319-000

Unavailable

16

GEAR, MAINSHAFT FIFTH (32T)

23491-292-030

Unavailable

17

GEAR, COUNTERSHAFT FIFTH (27T)

23511-292-040

Unavailable

18

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-292-000.

23801-348-690

Unavailable

18

SPROCKET, DRIVE (17T) (NOT AVAILABLE) This part replaces 23801-292-810.

23801-333-000

Unavailable

18

SPROCKET, DRIVE (17T) (NOT AVAILABLE) This part replaces 23801-300-305.

23801-333-000

Unavailable

18

SPROCKET, DRIVE (17T) (NOT AVAILABLE) This part replaces 23801-300-315.

23801-333-000

Unavailable

18

SPROCKET, DRIVE (17T)

23801-333-000

Unavailable

18

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-346-000.

23801-348-690

Unavailable

18

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-348-690

Unavailable

19

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

20

BEARING, MAINSHAFT

23931-292-000

Unavailable

21

BEARING, COUNTERSHAFT

23932-292-000

Unavailable

22

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

23

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

24

WASHER, THRUST (20MM)

90458-292-000

$3.54

25

WASHER B, THRUST (25MM) | Use from Engine SN 3006033

90461-286-000

Unavailable

26

WASHER, LOCK (25MM) (NOT AVAILABLE) | Use from Engine SN 3006033

90462-286-000

Unavailable

27

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

28

BEARING, RADIAL BALL This part replaces 91001-283-003.

91001-KE8-003

Unavailable

29

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE)

91002-283-000

Unavailable

29

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE) This part replaces 91002-283-003.

91002-283-000

Unavailable

30

OIL SEAL (8X34X8) This part replaces 91203-292-003.

91203-292-005

$13.88

30

OIL SEAL (8X34X8)

91203-292-005

$13.88

31

OIL SEAL (33X57X7) This part replaces 91205-283-010.

91205-283-015

Unavailable

31

OIL SEAL (33X57X7)

91205-283-015

Unavailable

32

O-RING (24.5X1.5) (NOT AVAILABLE)

91306-703-000

Unavailable

33

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
