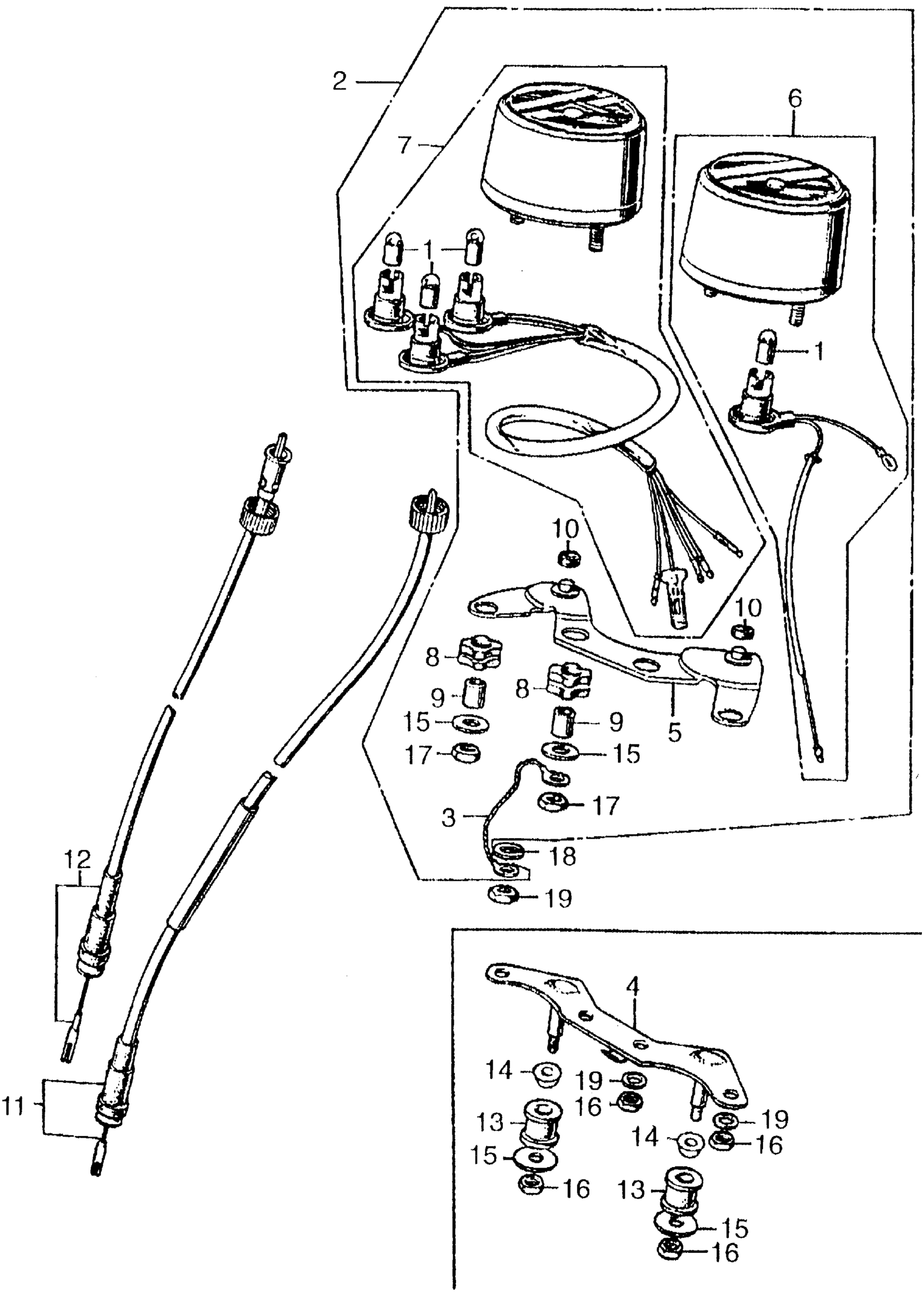

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

METER ASSY. (NOT AVAILABLE) | Use from Frame SN 3006916

37200-292-672

Unavailable

3

WIRE, HANDLE SWITCH GROUND (NOT AVAILABLE)

32111-319-000

Unavailable

4

PLATE, METER SET *NH1* (BLACK) | Use up to Frame SN 3006915 This part replaces 37211-292-000B.

37211-292-010B

Unavailable

4

PLATE, METER SET *NH1* (BLACK) | Use up to Frame SN 3006915

37211-292-010B

Unavailable

5

PLATE, METER SET *NH1* (BLACK) | Use from Frame SN 3006916

37211-292-010B

Unavailable

6

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 3006915 This part replaces 37230-292-671.

37230-292-672

Unavailable

6

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use from Frame SN 3006916

37230-292-672

Unavailable

7

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37240-292-018.

37240-292-028

Unavailable

7

TACHOMETER ASSY. (NOT AVAILABLE) | Use from Frame SN 3006916

37240-292-028

Unavailable

8

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 3006916 This part replaces 37242-292-000.

37242-292-505

Unavailable

8

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 3006916

37242-292-505

Unavailable

9

COLLAR, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 3006916

37243-292-000

Unavailable

10

RUBBER, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 3006916

37244-292-000

Unavailable

11

CABLE, TACHOMETER (NOT AVAILABLE) This part replaces 37260-292-020.

37260-375-000

Unavailable

11

CABLE, TACHOMETER (NOT AVAILABLE) This part replaces 37260-346-000.

37260-375-000

Unavailable

12

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-292-030

Unavailable

13

RUBBER, SPEEDOMETER STAY CUSHION (NOT AVAILABLE) | Use up to Frame SN 3006915

53236-292-010

Unavailable

14

COLLAR, METER SETTING (NOT AVAILABLE)

53238-292-305

Unavailable

15

WASHER (6.5X20) | Use up to Frame SN 3006915

90545-292-000

$1.77

15

WASHER (6.5X20) | Use from Frame SN 3006916

90545-292-000

$1.77

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) | Use up to Frame SN 3006915 This part replaces 94030-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (8MM) | Use up to Frame SN 3006916

94101-08000

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
