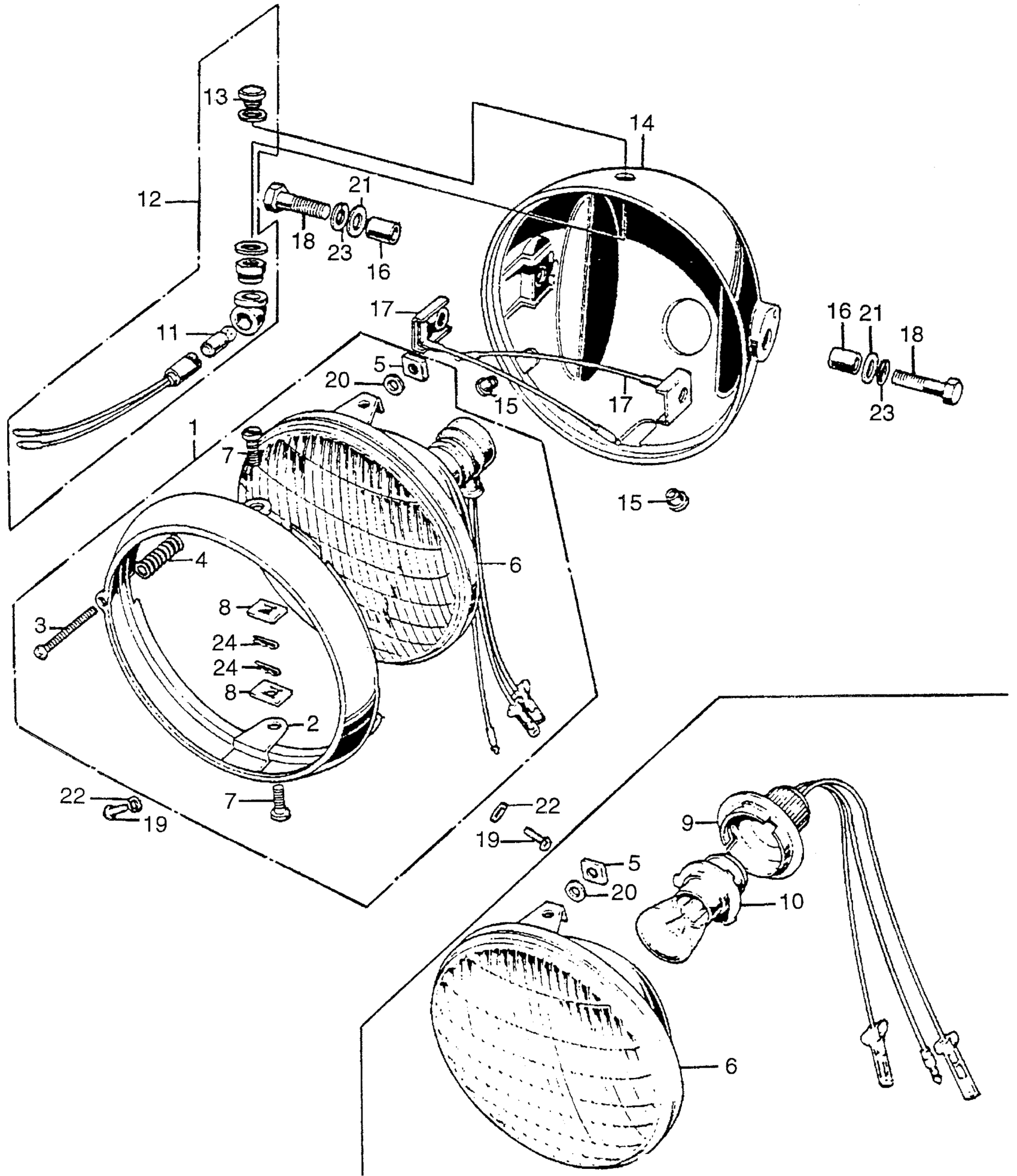

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE) | Use up to Frame SN 3009557 This part replaces 33100-292-673.

33100-292-674

Unavailable

1

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-292-674

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE) This part replaces 33101-292-671.

33101-292-672

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-292-672

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33103-292-003

$4.66

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

5

NUT, HEADLIGHT BEAM ADJ. | Use up to Frame SN 3009557

33117-001-023

$2.39

5

NUT, HEADLIGHT BEAM ADJ. | Use up to Frame SN 3009557 This part replaces 33117-292-003.

33117-001-023

$2.39

6

HEADLIGHT UNIT (12V 35/25W) | Use up to Frame SN 3009557 This part replaces 33120-292-672.

33120-292-673

Unavailable

6

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

SOCKET, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 3009557 This part replaces 33130-292-670.

33130-286-670

Unavailable

9

SOCKET, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 3009557

33130-286-670

Unavailable

10

BULB, HEADLIGHT (12V35/25W) (STANLEY) | Use up to Frame SN 3009557

34901-292-670

Unavailable

11

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

12

LAMP ASSY., BEAM PILOT (NOT AVAILABLE)

37550-292-010

Unavailable

13

LENS, BEAM PILOT (NOT AVAILABLE)

37551-292-000

Unavailable

14

CASE, HEADLIGHT (NOT AVAILABLE)

61301-286-670Z

Unavailable

14

CASE, HEADLIGHT *R3C* (CANDY RED) (NOT AVAILABLE)

61301-292-020XJ

Unavailable

15

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

16

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

17

WASHER, HEADLIGHT CASE (NOT AVAILABLE)

61303-292-000

Unavailable

18

BOLT, HEX. (10X25) This part replaces 92000-10025-0B.

92101-10025-0B

Unavailable

19

SCREW, PAN (5X16)

93500-05016-0B

$1.49

20

WASHER, PLAIN (4MM)

94101-04000

$1.49

21

WASHER, PLAIN (10MM)

94101-10200

$1.49

22

WASHER, SPRING (5MM) This part replaces 94111-05200.

94111-05000

$1.49

22

WASHER, SPRING (5MM) This part replaces 90085-371-980.

94111-05000

$1.49

22

WASHER, SPRING (5MM) This part replaces 91560-371-980.

94111-05000

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

WASHER, SPRING (8MM)

94111-10000

$1.49

24

PIN, LOCK (5MM)

94251-05000

$1.49
