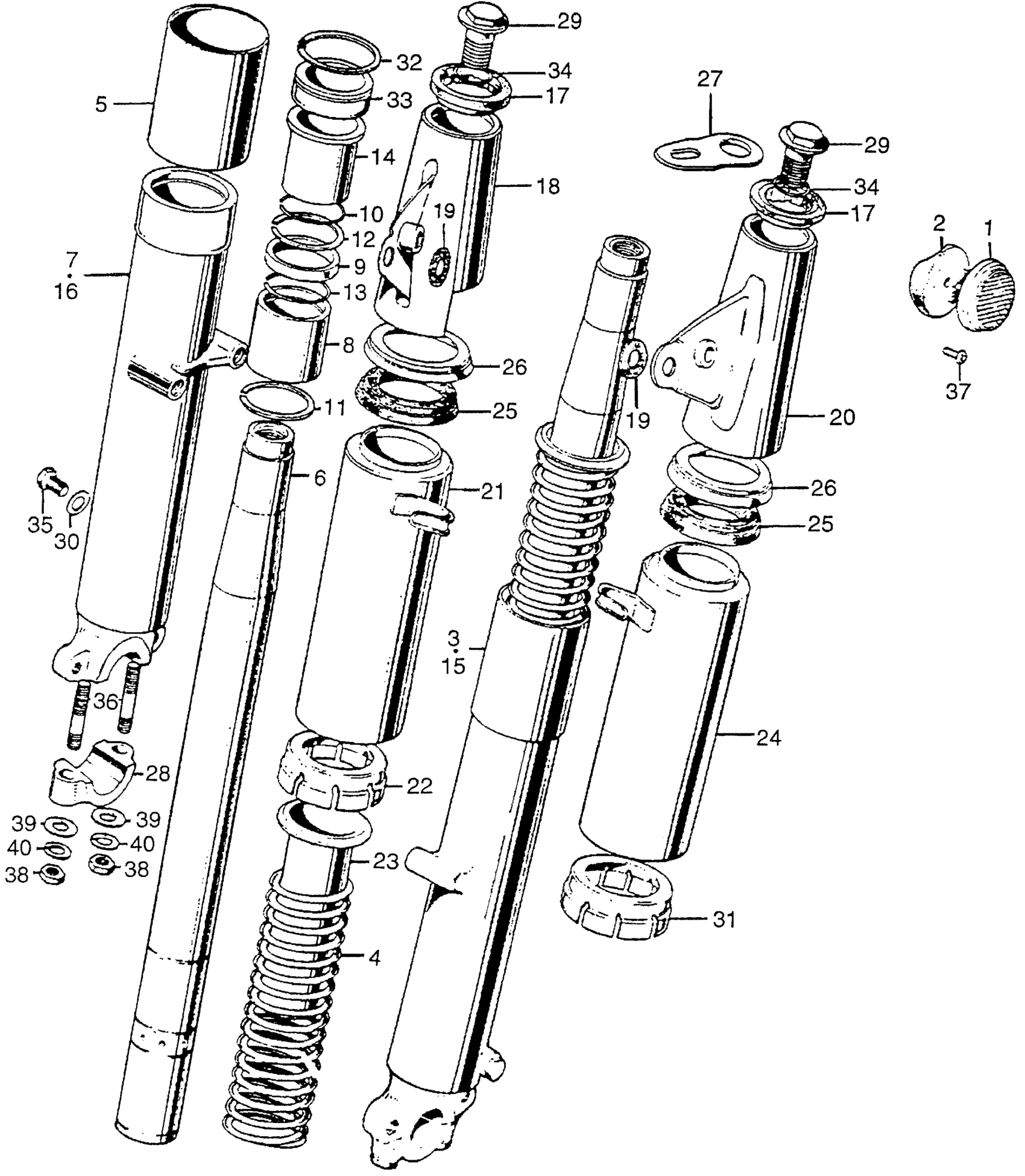

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 FRONT FORK Diagram

#

Description
Price

3

FORK ASSY., R. FR.

51400-292-670

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-292-010

Unavailable

5

COVER, SPRING (NOT AVAILABLE) | Use up to Frame SN 3003319

51402-292-670

Unavailable

5

COVER, SPRING (NOT AVAILABLE) | Use from Frame SN 3003320

51402-292-671

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-292-000

Unavailable

7

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-292-670

Unavailable

8

PISTON, FR. FORK (NOT AVAILABLE)

51442-292-000

Unavailable

9

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-273-000

Unavailable

10

RING, FR. FORK STOPPER (NOT AVAILABLE)

51444-273-000

Unavailable

11

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-273-000

Unavailable

12

RING, SHOCK VALVE STOPPER (NOT AVAILABLE)

51446-273-000

Unavailable

13

RING, PISTON STOPPER (NOT AVAILABLE)

51447-273-000

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE) This part replaces 51451-292-000.

51451-300-000

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-300-000

Unavailable

15

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-292-670

Unavailable

16

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-292-670

Unavailable

17

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

18

COVER, R. FR. FORK (NOT AVAILABLE)

51602-292-670Z

Unavailable

19

WASHER, RUBBER (NOT AVAILABLE)

51603-292-300

Unavailable

20

COVER, R. FR. FORK (NOT AVAILABLE)

51602-292-670Z

Unavailable

21

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE)

51611-292-670Z

Unavailable

22

CAP, SPRING SEAT

51612-292-670

Unavailable

23

SEAT, SPRING (NOT AVAILABLE)

51613-292-000

Unavailable

24

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE)

51615-292-670Z

Unavailable

25

RUBBER, FR. FORK COVER (LOWER)

51622-292-010

$5.84

26

GUIDE, RUBBER (NOT AVAILABLE)

51623-292-670

Unavailable

27

KEEPER, HELMET (NOT AVAILABLE)

53126-292-670

Unavailable

28

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

28

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

29

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-000

Unavailable

30

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

31

WASHER, SPRING SEAT (NOT AVAILABLE)

90550-292-000

Unavailable

32

CIRCLIP (OUTER) (47MM) (NOT AVAILABLE)

90601-292-000

Unavailable

33

OIL SEAL (35X46X11)

91255-292-003

$14.61

33

OIL SEAL (35X46X11) This part replaces 91255-292-005.

91255-292-003

$14.61

34

O-RING (11.9X2.2) This part replaces 91304-703-000.

91370-461-000

$2.39

34

O-RING (11.9X2.2)

91370-461-000

$2.39

35

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

35

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

36

BOLT, STUD (8X32) This part replaces 92700-08049.

92900-08032-0B

$2.30

36

BOLT, STUD (8X32)

92900-08032-0B

$2.30

37

SCREW, PAN (5X6)

93500-05006-0B

Unavailable

38

NUT, HEX. (8MM)

94001-08000-0S

$1.49

39

WASHER, PLAIN (8MM)

94101-08000

$1.49

40

WASHER, SPRING (8MM)

94111-08000

$1.49
