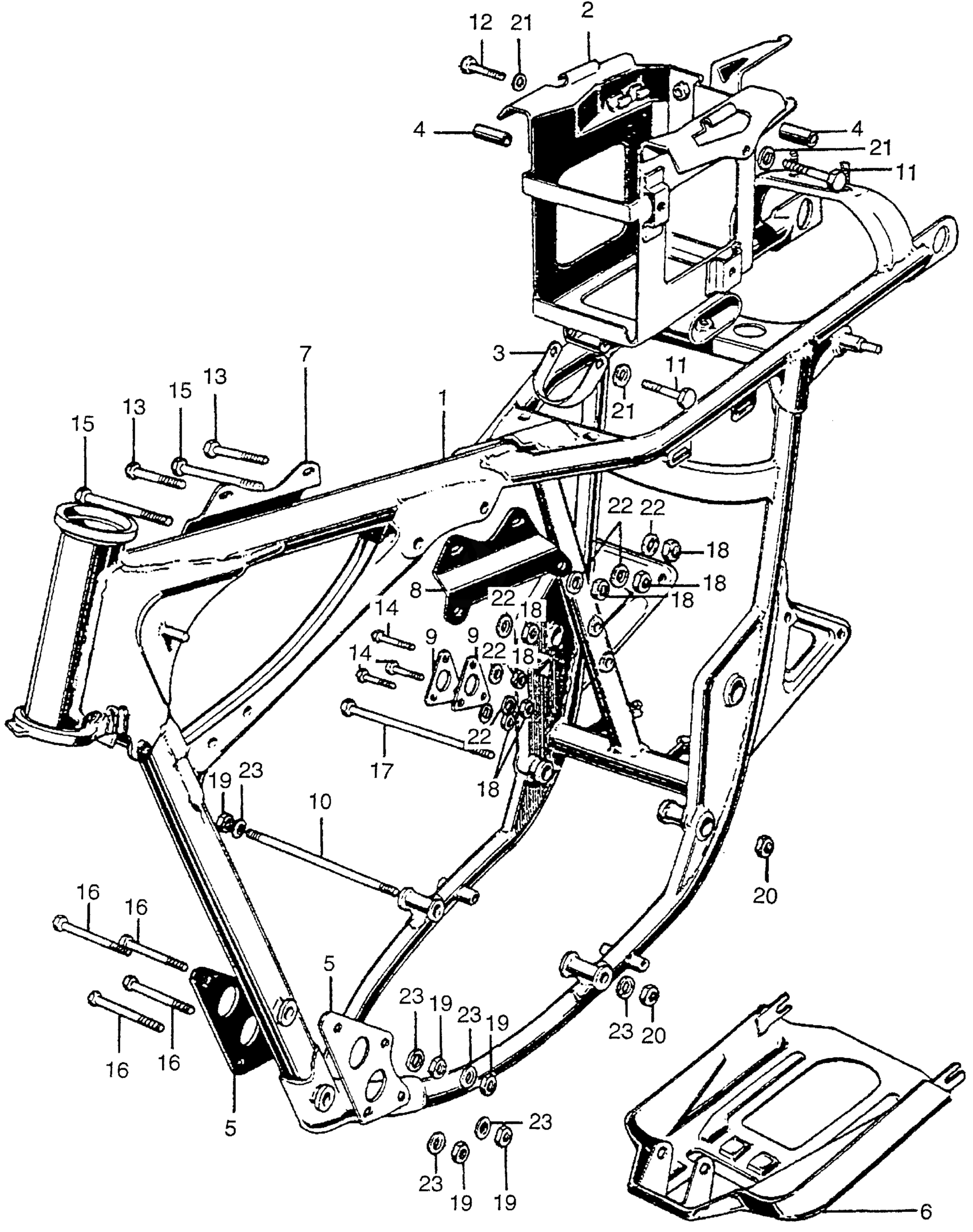

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK) | Use up to Frame SN 3004170

50100-292-080B

Unavailable

1

FRAME *NH1* (BLACK) | Use from Frame SN 3004171 to 3008955 This part replaces 50100-292-090B.

50100-292-405B

Unavailable

1

FRAME *NH1* (BLACK) | Use from Frame SN 3004171 to 3008955

50100-292-405B

Unavailable

2

BOX, BATTERY *NH1* (BLACK)

50325-292-020B

Unavailable

3

STAY, BATTERY BOX (LOWER) (NOT AVAILABLE) This part replaces 50327-292-000B.

50327-346-000

Unavailable

3

STAY, BATTERY BOX (LOWER) (NOT AVAILABLE)

50327-346-000

Unavailable

4

COLLAR, BATTERY BOX (NOT AVAILABLE)

50328-292-010

Unavailable

5

PLATE, FR. ENGINE HANGER

50351-283-010Z

Unavailable

6

PLATE, SKID *NH1* (BLACK) (NOT AVAILABLE) | (Optional). Use from Frame SN 3004171

50351-294-030B

Unavailable

7

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-292-010Z

Unavailable

8

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50355-292-000Z

Unavailable

9

PLATE, RR. ENGINE HANGER (NOT AVAILABLE)

50356-283-000Z

Unavailable

10

BOLT, ENGINE HANGER (10MM) (NOT AVAILABLE) | Use up to Frame SN 3004170

90106-292-000

Unavailable

10

BOLT, ENGINE HANGER (NOT AVAILABLE) | Use from Frame SN 3004171

90106-292-010

Unavailable

11

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

11

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

11

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

12

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

12

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

12

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

13

BOLT, HEX. (8X57) (NOT AVAILABLE)

92200-08057-0A

Unavailable

14

BOLT, HEX. (8X70) (NOT AVAILABLE)

92200-08070-0A

Unavailable

15

BOLT, HEX. (8X87) (NOT AVAILABLE)

92200-08087-0A

Unavailable

16

BOLT, HEX. (10X90) (NOT AVAILABLE)

92200-10090-0A

Unavailable

17

BOLT, HEX. (10X275) (NOT AVAILABLE) | Use up to Frame SN 3004170

92200-10275-0A

Unavailable

17

BOLT, HEX. (12X275) (NOT AVAILABLE) | Use from Frame SN 3004171

92200-12275-0A

Unavailable

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

NUT, HEX. (10MM)

94001-10000-0S

$1.49

20

NUT, HEX. (12MM) | Use from Frame SN 3004171

94002-12000-0S

$2.06

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49

23

WASHER, SPRING (8MM)

94111-10000

$1.49
