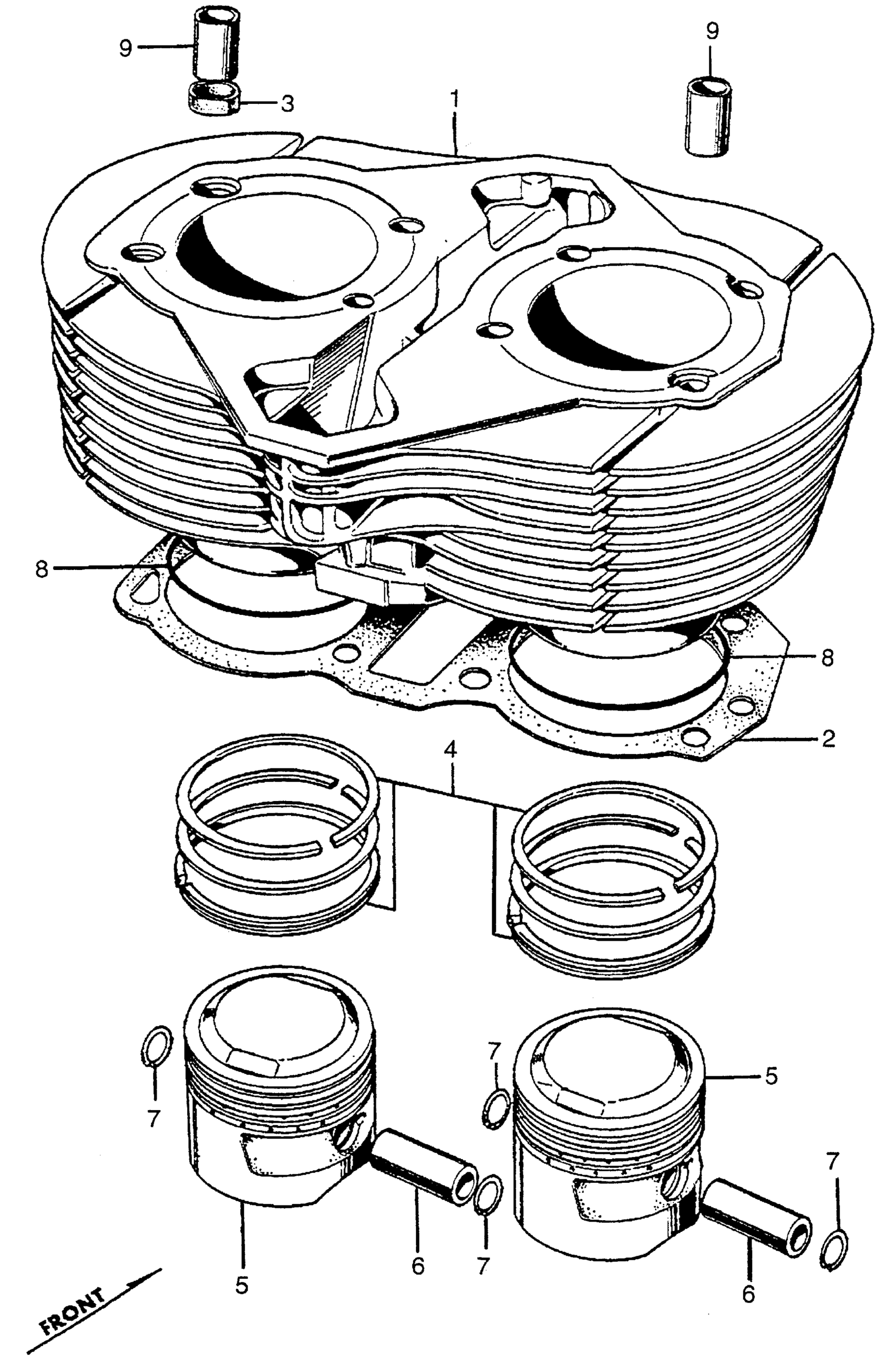

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-292-020

Unavailable

2

GASKET, CYLINDER This part replaces 12191-283-010.

12191-283-306

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12909-283-000.

12909-428-003

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

3

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

4

RING SET, PISTON (STD) This part replaces 13011-292-000.

13011-375-005

Unavailable

4

RING SET, PISTON (STD)

13011-375-005

Unavailable

4

RING SET, PISTON (OS 0.25)

13021-292-000

Unavailable

4

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) This part replaces 13031-292-000.

13031-375-005

Unavailable

4

RING SET, PISTON (0.75) (NOT AVAILABLE) This part replaces 13041-292-000.

13041-375-005

Unavailable

4

RING SET, PISTON (1.00) (NOT AVAILABLE) This part replaces 13051-292-000.

13051-375-005

Unavailable

4

RING SET, PISTON (1.00) (NOT AVAILABLE)

13051-375-005

Unavailable

5

PISTON (STD) (NOT AVAILABLE)

13101-292-030

Unavailable

5

PISTON (OS 0.25) (NOT AVAILABLE)

13102-292-030

Unavailable

5

PISTON (OS 0.50) (NOT AVAILABLE)

13103-292-030

Unavailable

5

PISTON (0.75) (NOT AVAILABLE)

13104-292-030

Unavailable

5

PISTON (1.00) (NOT AVAILABLE)

13105-292-030

Unavailable

6

PIN, PISTON

13111-283-000

$14.98

7

CLIP, PISTON PIN

13115-283-000

$1.56

7

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

8

O-RING, CYLINDER (75.8X2) This part replaces 91302-283-000.

91302-283-003

$6.34

8

O-RING, CYLINDER (75.8X2)

91302-283-003

$6.34

9

PIN, KNOCK (12X24) (NOT AVAILABLE)

94301-12240

Unavailable
