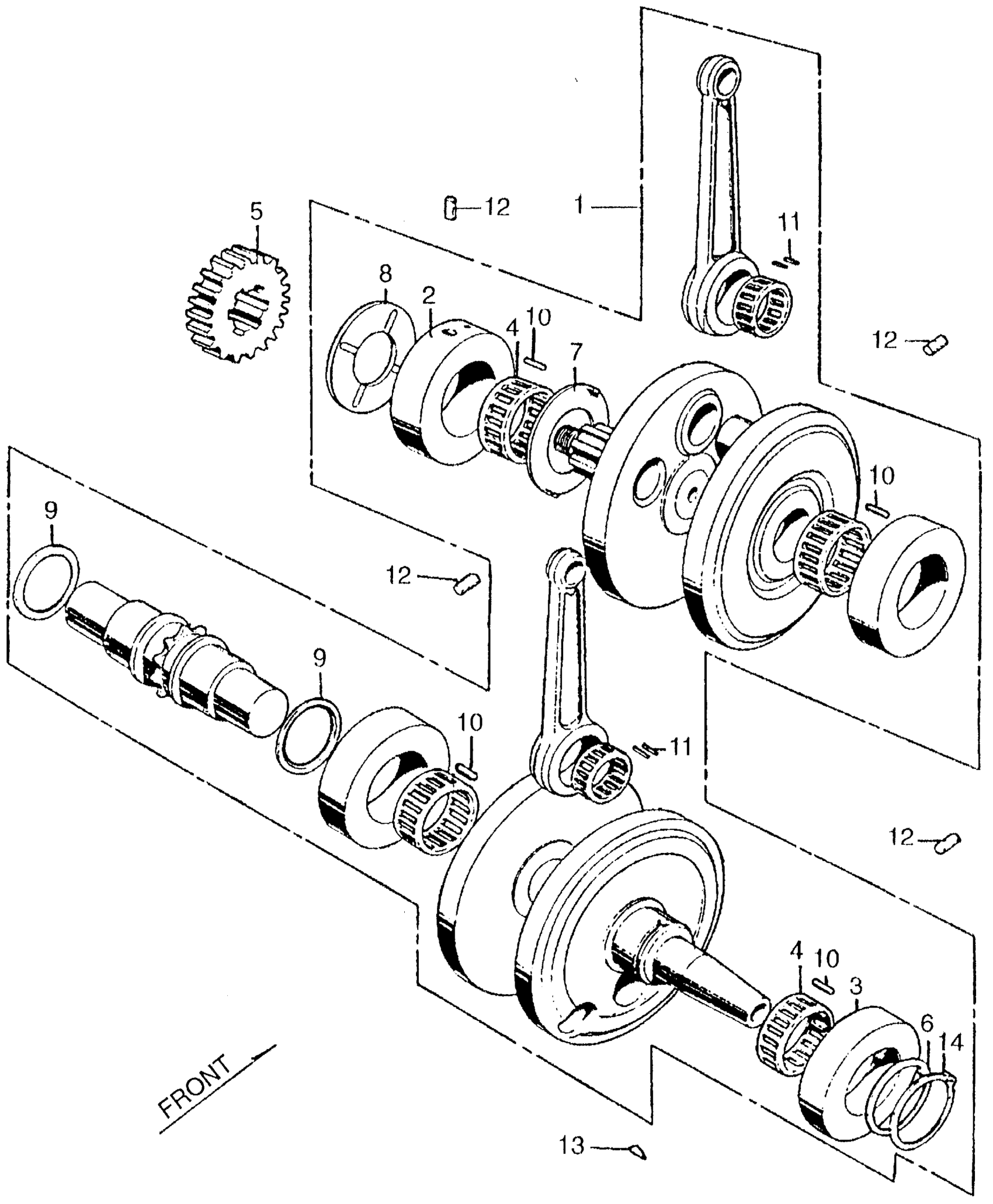

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE)

13000-292-677

Unavailable

2

RACE, R. CRANK BEARING (OUTER) (NOT AVAILABLE) | Use up to Engine SN 3004105

13411-292-340

Unavailable

2

RACE, R. CRANK BEARING (OUTER) | Use from Engine SN 3004106

13411-292-360

Unavailable

3

RACE, L. CRANK BEARING (OUTER) (NOT AVAILABLE) | Use up to Engine SN 3004105

13421-292-310

Unavailable

3

RACE, L. CRANK BEARING (OUTER) (NOT AVAILABLE) | Use from Engine SN 3004106

13421-292-330

Unavailable

4

RETAINER, ROLLER MAIN BEARING | Use up to Engine SN 3004105

13471-283-008

Unavailable

4

RETAINER, ROLLER MAIN BEARING | Use from Engine SN 3004106

13473-292-008

$38.31

5

GEAR, PRIMARY DRIVE (23T) (NOT AVAILABLE)

13611-292-010

Unavailable

6

WASHER B (32MM) (NOT AVAILABLE) | Use up to Engine SN 3004105

90454-283-010

Unavailable

6

WASHER B (34MM) (NOT AVAILABLE) | Use from Engine SN 3004106

90454-292-010

Unavailable

7

WASHER C, THRUST (32MM) | Use up to Engine SN 3004105

90455-292-010

Unavailable

7

WASHER C, THRUST (34MM) (NOT AVAILABLE) | Use from Engine SN 3004106

90455-292-020

Unavailable

8

WASHER B (25MM) (NOT AVAILABLE)

90456-292-030

Unavailable

9

WASHER, THRUST (32MM) (NOT AVAILABLE) | Use from Engine SN 3004106

90483-292-000

Unavailable

10

ROLLER (5X13) (NOT AVAILABLE) | Use up to Engine SN 3004105

91102-292-008

Unavailable

10

ROLLER (6X13) | Use from Engine SN 3004106

91103-292-000

Unavailable

11

ROLLER (3.9X12.5) (NOT AVAILABLE)

91101-283-020

Unavailable

12

PIN B, DOWEL (6X10) | Use from Engine SN 3020325

94302-06100

$2.23

13

KEY, WOODRUFF (25X14)

94401-25140

$1.75

14

CIRCLIP (OUTER) (32MM) | Use up to Engine SN 3004105

94510-32000

$1.77

14

CIRCLIP (OUTER) (34MM) | Use from Engine SN 3004106

94510-34000

Unavailable
